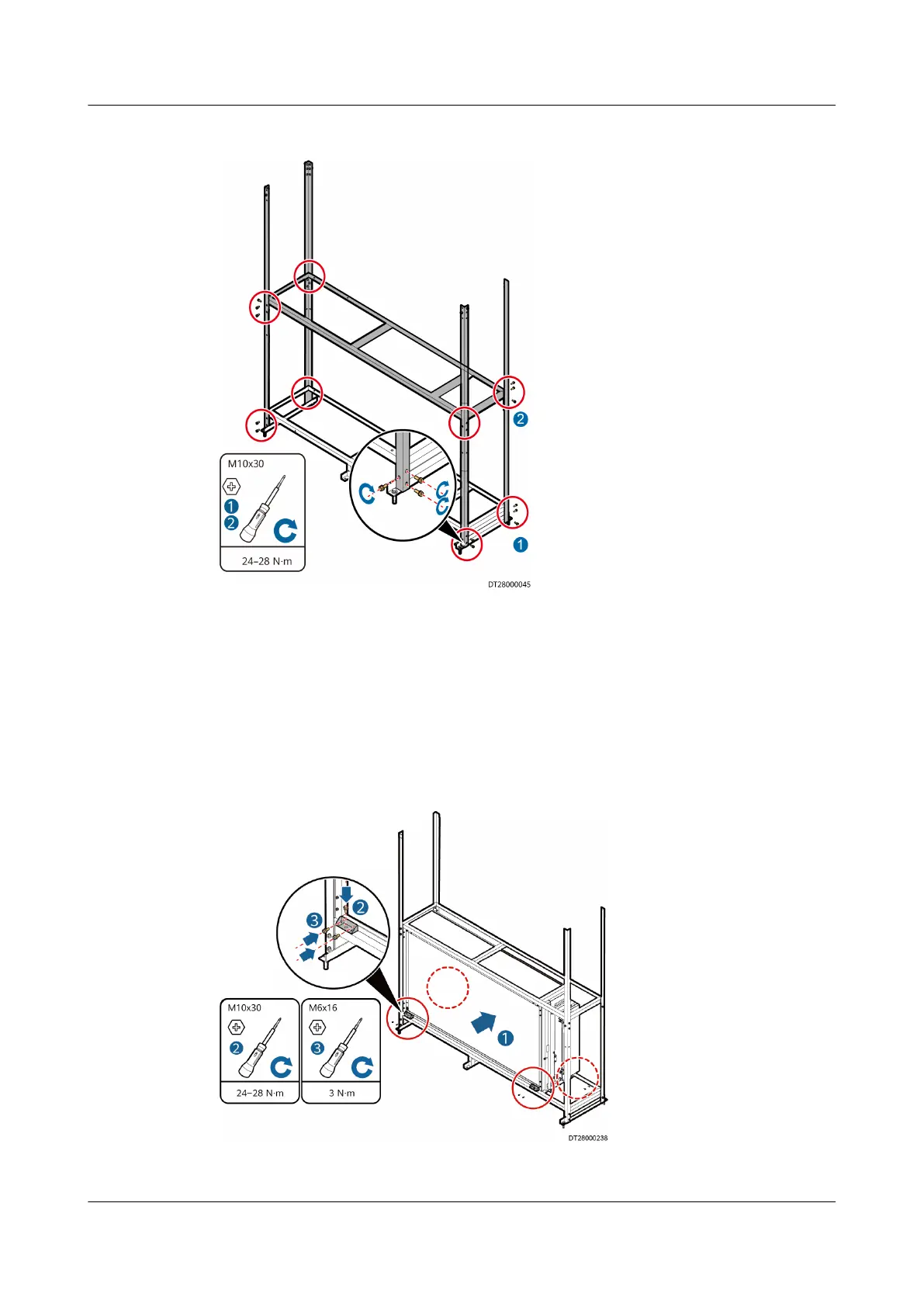

Figure 4-42 Securing columns
1. Secure the four columns to the rst-layer base using twelve M10x30 stainless
steel bolts, as shown by (1) in Figure 4-42.
2. Secure the second-layer base to the middles of the four columns using twelve
M10x30 stainless steel bolts, as shown by (2) in Figure 4-42.
Step 3 Secure an outdoor unit onto the
rst-layer base.
Figure 4-43 Securing an outdoor unit onto the rst-layer base
NetCol8000-A(045, 055, 060, 090, 120) In-room Air
Cooled Smart Cooling Product
User Manual 4 System Installation
Issue 05 (2020-10-10) Copyright © Huawei Technologies Co., Ltd. 87
