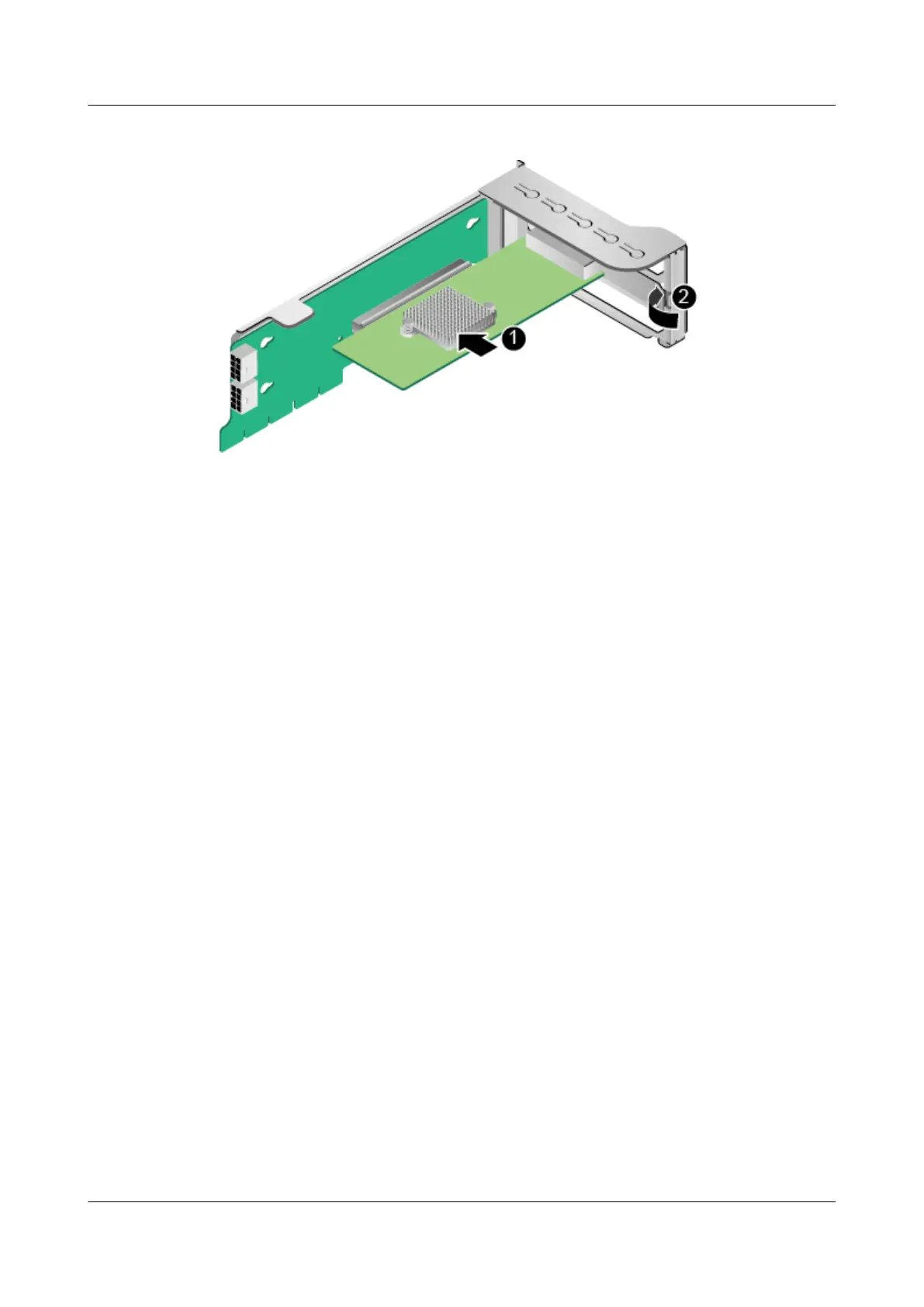

Figure 5-10 Installing a PCIe card on a riser card
Step 11 Install the riser card tray. For details, see 3.13 Installing a Riser Card Tray.
Step 12 Install the chassis cover. For details, see 3.7 Installing the Chassis Cover.
Step 13 Install the server. For details, see 4.4 Installing the Server on Guide Rails.
Step 14 Connect the power cables. For details, see 3.5 Connecting Cables to a PSU.
Step 15 Power on the server. For details, see 3.1 Powering On the Server.
Step 16 Log in to the iBMC WebUI, and check whether the new component is normal. For details, see
the TaiShan Rack Server iBMC User Guide.
----End
5.6 Screw-in RAID Controller Card
To install the screw-in RAID controller card on the mainboard, perform the following steps:
Step 1 Wear an ESD wrist strap. For details, see 12 Preventing Electrostatic Discharge.
Step 2 Power off the server. For details, see 3.2 Powering Off the Server.
Step 3 Remove the power cables. For details, see 3.4 Removing Cables from a PSU.
Step 4 Remove the server. For details, see 3.3 Removing the Server and Guide Rails.
Step 5 Remove the chassis cover. For details, see 3.6 Removing the Chassis Cover.
Step 6 If I/O module 2 is configured with a full-height full-length riser card tray, remove the riser
card tray above the RAID controller card. For details, see 3.12 Removing a Riser Card
Tray.
Step 7 If a supercapacitor is required, install it. For details, see 5.7 Supercapacitor.
Step 8 Take a spare RAID controller card out of its ESD bag.
Step 9 Determine the position for installing the RAID controller card on the mainboard. See Figure
5-11.
TaiShan 2280 V2 Server
User Guide
5 Optional Part Installation
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 92
