7 Internal Cabling
NOTE
In this chapter, the screw-in RAID controller card is used to illustrate cable connections, which are the
same for connecting a PCIe plug-in RAID controller card.
Huawei Part Number
A Huawei part number uniquely identifies a server component. You can find the number on a
component or component package.
Figure 7-1 shows a cable label with the part number 04151201.
NOTE
The actual label may be different from the one in the following figure, which is for reference only.

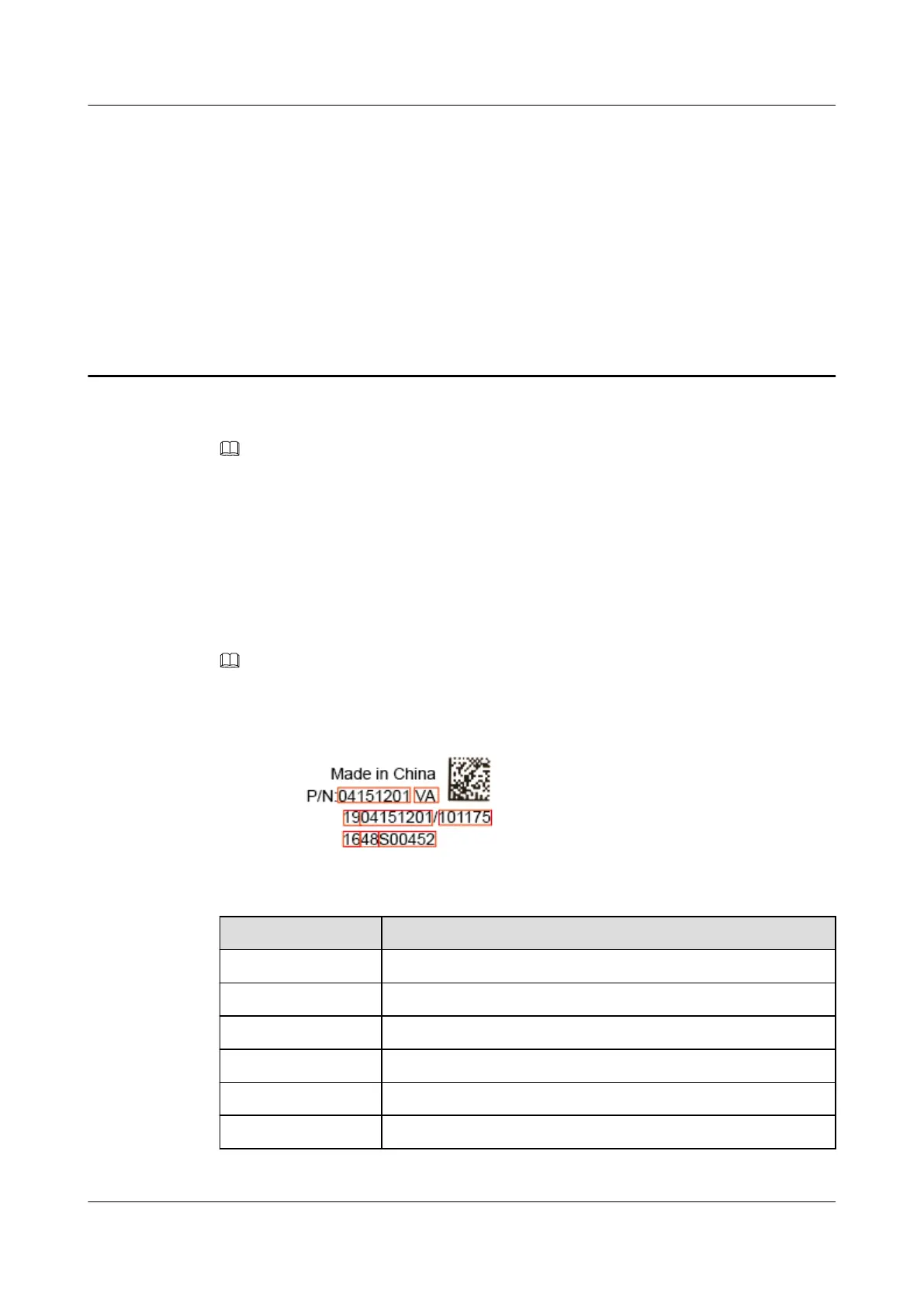

Figure 7-1 Cable label
Table 7-1 Cable label description
Item
Description
04151201 Huawei part number
VA Component version
19 Material identification code
101175 Version code
16/48 Year/Week (48th week in 2016)
S00452 Serial number
TaiShan 2280 V2 Server
User Guide
7 Internal Cabling
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 110
