Huawei TaiShan 2280 V2 User Manual

7.5 Internal Cabling for a Server with I/O Module 3

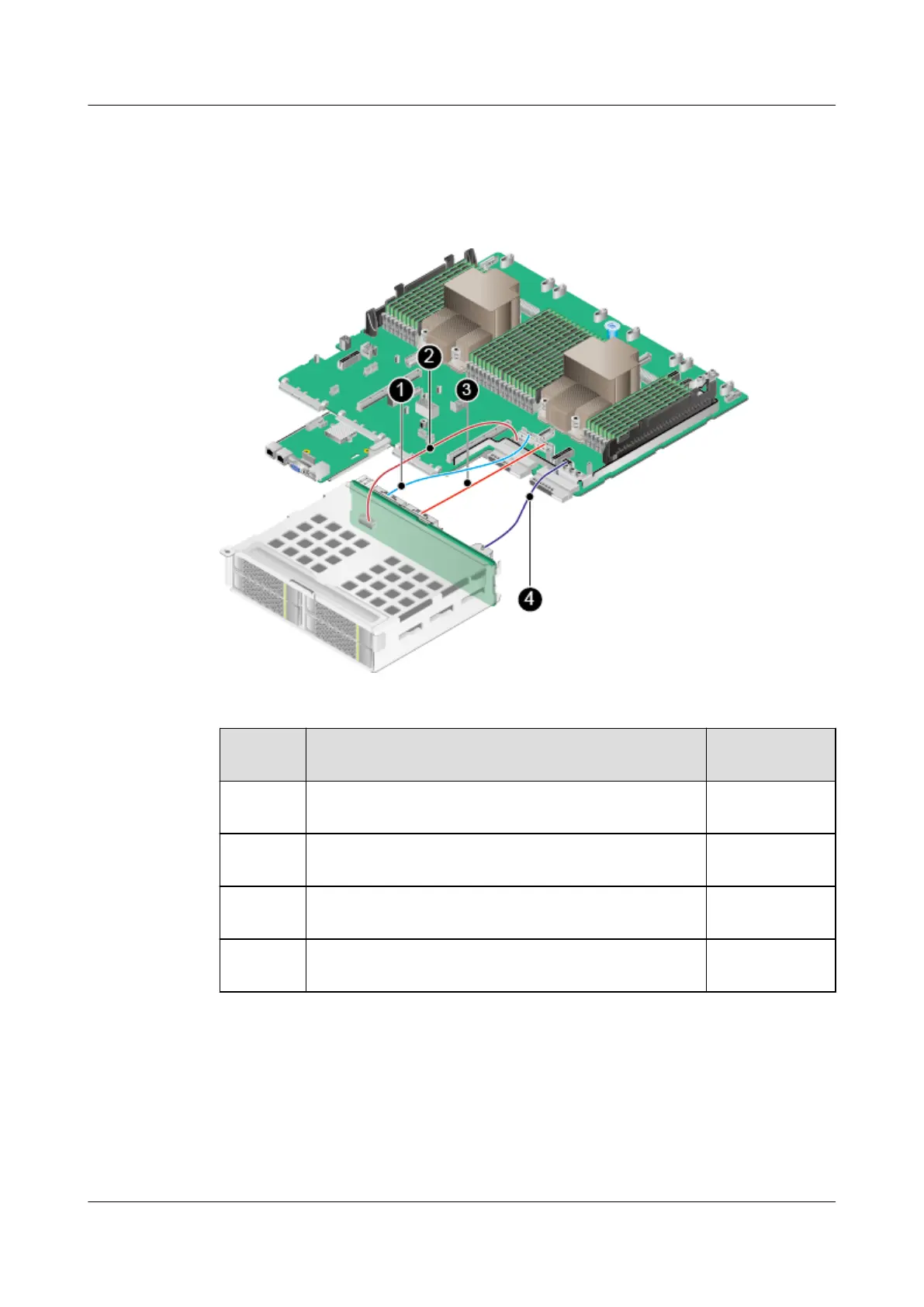

Figure 7-18 Internal cabling for the backplane of NVMe SSDs in I/O module 3
Table 7-18 Internal cabling for the drive backplane for I/O module 3
No.
Description Huawei Part
Number
1 Signal cable for connecting Slimline B (J51) of the
mainboard to Slimline B (J9) of the rear drive backplane
04052304
2 Indicator signal cable for connecting the mainboard (J67)
to the rear drive backplane (J23)
04080602
3 Signal cable for connecting Slimline A (J52) of the
mainboard to Slimline A (J8) of the rear drive backplane
04052304
4 Power cable for connecting the mainboard (J12) to the
rear drive backplane (J24)
04052302
TaiShan 2280 V2 Server
User Guide
7 Internal Cabling
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 127
