l Bind cables with ties when routing. Ensure that optical cables are routed straightly and
bound neatly and that cable ties are installed at even spacing and fastened properly.
Step 5 Remove the network cable to be replaced.
Step 6 Install the new network cable.
l Connect the new network cable to the same port as the removed one.
l Install the network cable in the network port securely.

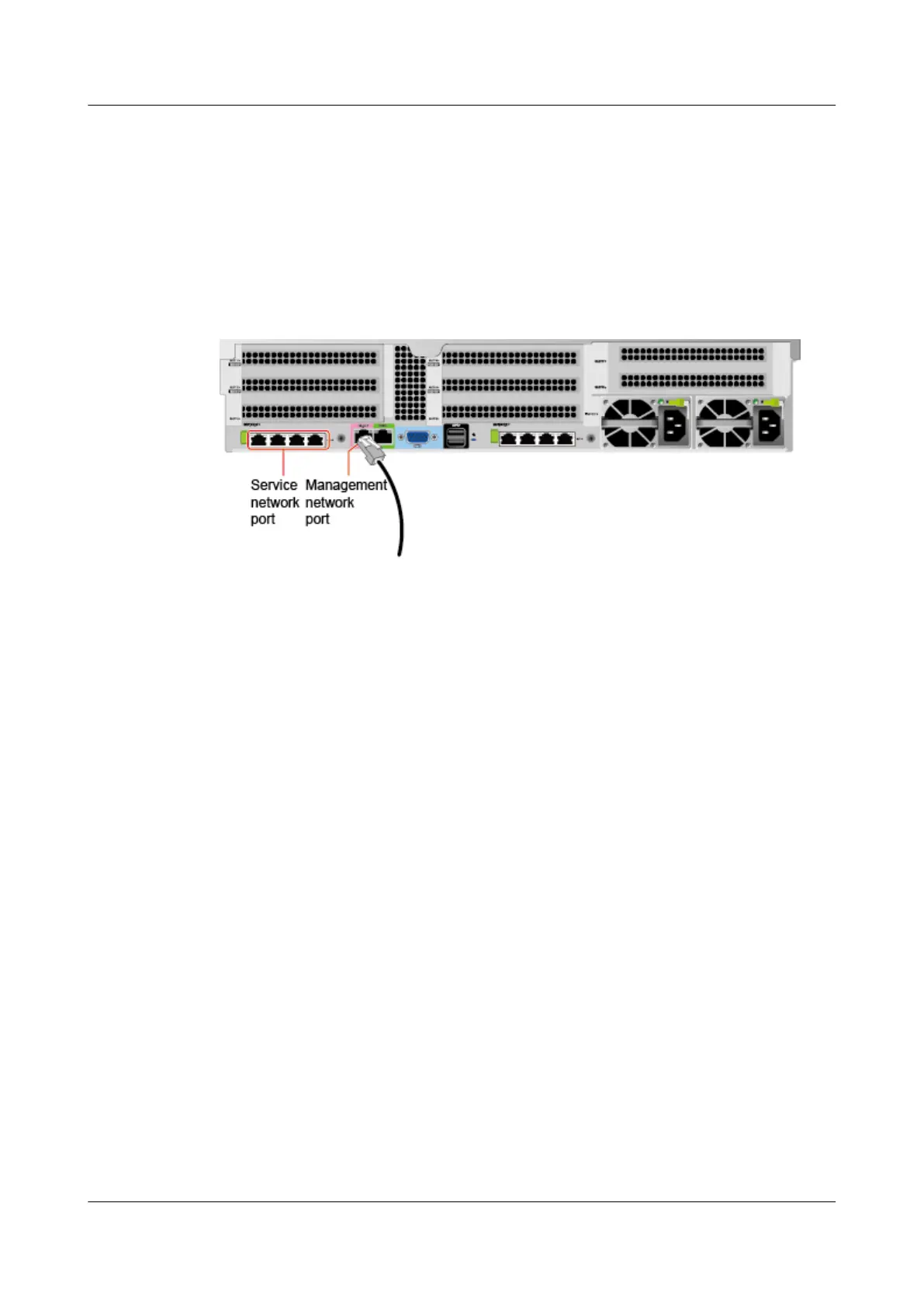

Figure 4-9 Connecting a network cable
Step 7 Connect the other end of the network cable to the peer network port according to the network
plan.
l Connect the new network cable to the same port as the removed one.
l Install the network cable in the network port securely.
Step 8 Check that the new network cable is functioning properly.
Power on the device, and ping the peer device connected by the new network cable. If the
peer device cannot be pinged, check whether the network cable is damaged or the connectors
are securely connected.
Step 9 Bind the new network cable with other cables.
Bind the new network cable in the same way as the existing network cables. You can also
remove all cable ties and bind all of the network cables again if necessary.
----End
4.5.4 Connecting a USB Device
Step 1 Wear an ESD wrist strap. For details, see 12 Preventing Electrostatic Discharge.
Step 2 Connect a USB device to a USB port on the server. See Figure 4-10.
TaiShan 2280 V2 Server
User Guide
4 Setup
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 63
