3 Slimline B connector (SLIMLINE B/J9) 4 mini-SAS HD connector (PORT A/J2)
5 Indicator signal cable connector (HDD BP/J23) - -
2.8 DIMM Slot Locations
A server provides 32 (DDR4) DIMM slots. Each processor supports eight memory channels
and each memory channel supports two DDR4 DIMMs. Figure 2-19 shows the DIMM slots.

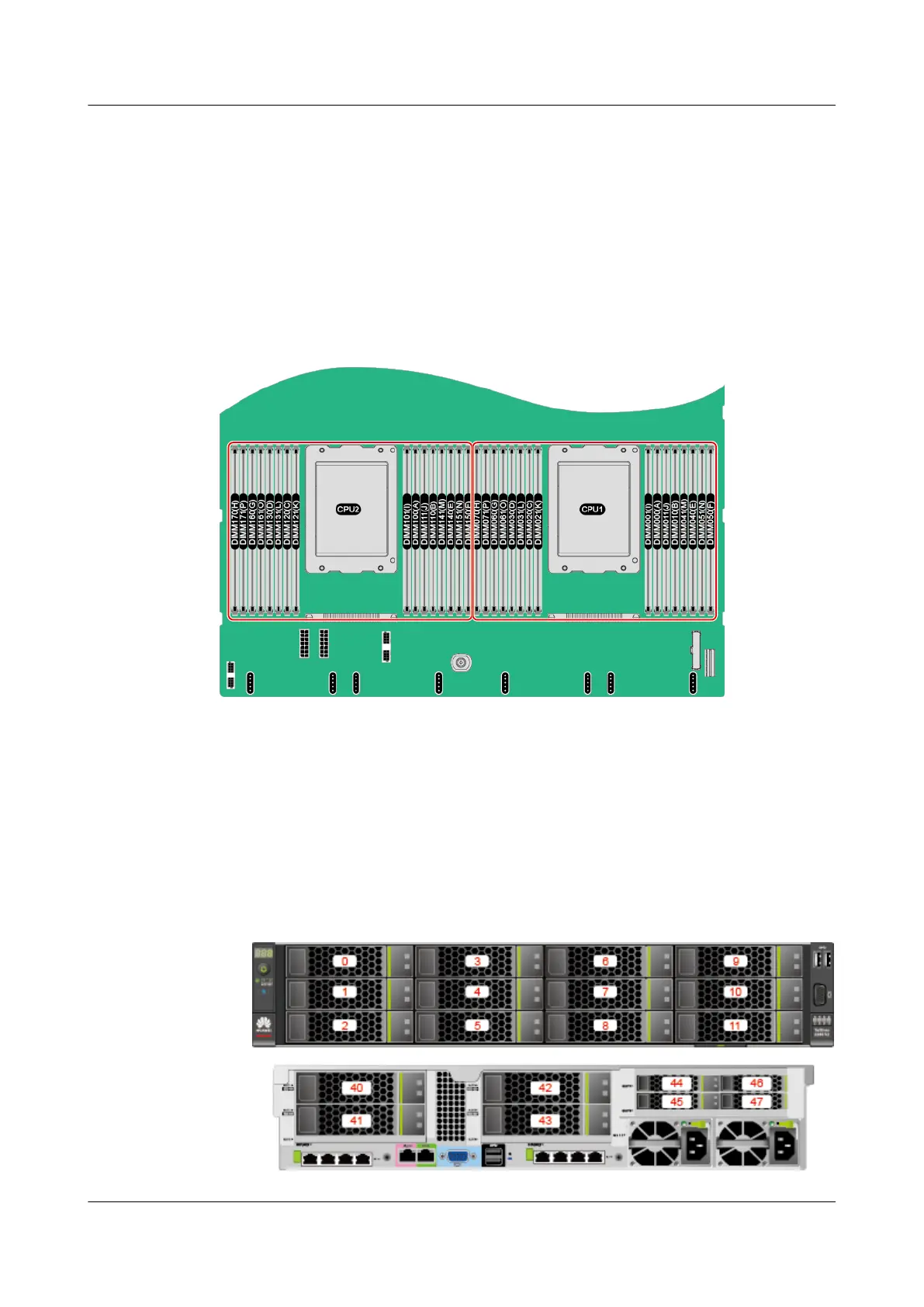

Figure 2-19 DIMM slot locations
2.9 Drive Slot Numbers and Indicators
2.9.1 Drive Slot Numbers
l Figure 2-20 shows the drive slot numbers of a server with 12 x 3.5-inch drives in
Expander mode.
Figure 2-20 Server with 12 x 3.5-inch drives in Expander mode
TaiShan 2280 V2 Server
User Guide
2 Components
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 16
