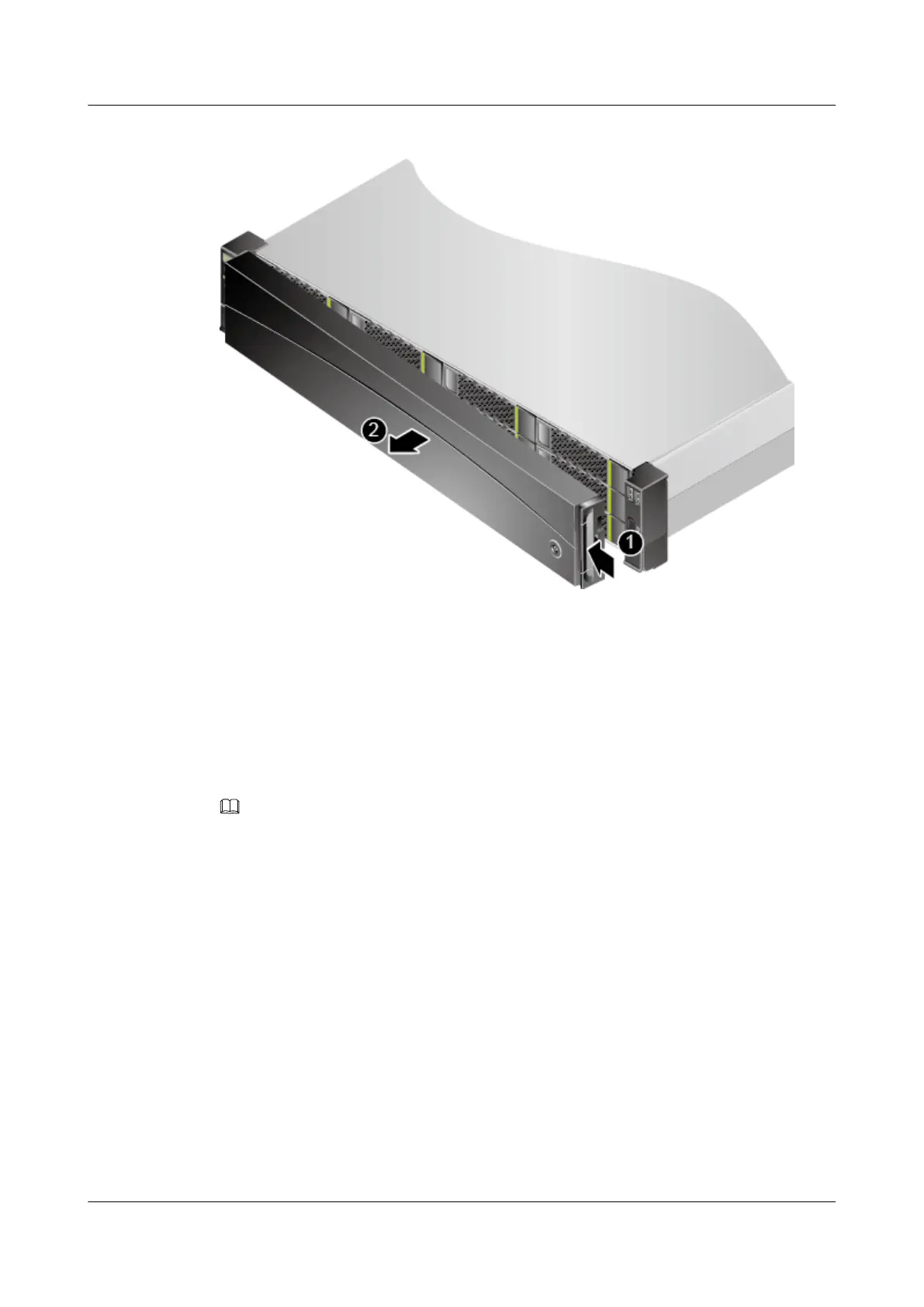

Figure 5-2 Removing the front bezel
Step 4 Keep the key properly.
----End
5.2.2 Installing the Front Bezel
Step 1 Wear an ESD wrist strap. For details, see 12 Preventing Electrostatic Discharge.
Step 2 Hook the front bezel onto the side of the left mounting ear, and press the button to secure it to
the chassis. See Figure 5-3.
NOTE
The front bezel is optional and can be selected as required.
TaiShan 2280 V2 Server
User Guide
5 Optional Part Installation
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 85
