2.3 Rear Panel Components
Figure 2-8 shows the components on the rear panel of the server.

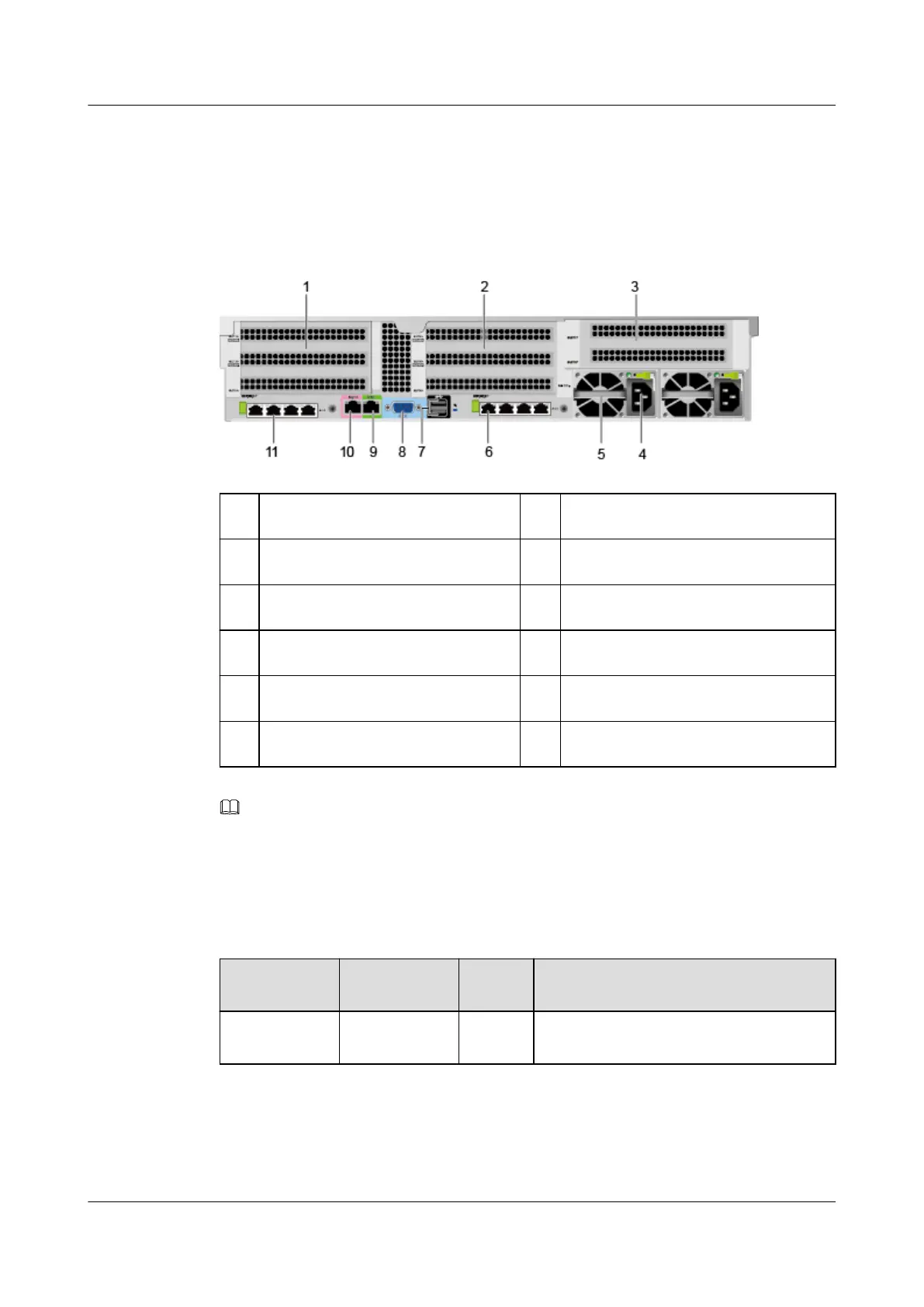

Figure 2-8 Rear panel components
1 I/O module 1 2 I/O module 2
3 I/O module 3 4 PSU socket
5 Power supply unit (PSU) 6 FlexIO 2
7 USB 3.0 port 8 VGA port
9 Serial port 10 Management network port
11 FlexIO 1 - -
NOTE
l I/O modules 1, 2, and 3 can be drive modules or riser modules. The preceding figure is for reference
only.
l FlexIO 1 or 2 can be a NIC with four GE electrical ports.
l FlexIO 1 or 2 is not hot-swappable. If you need to replace it, power off the server.
Table 2-4 Ports on the rear panel
Port
Type Quantit
y
Description
VGA port DB15 1 The VGA port is connected to a terminal,
such as a monitor or KVM.
TaiShan 2280 V2 Server
User Guide
2 Components
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 8
