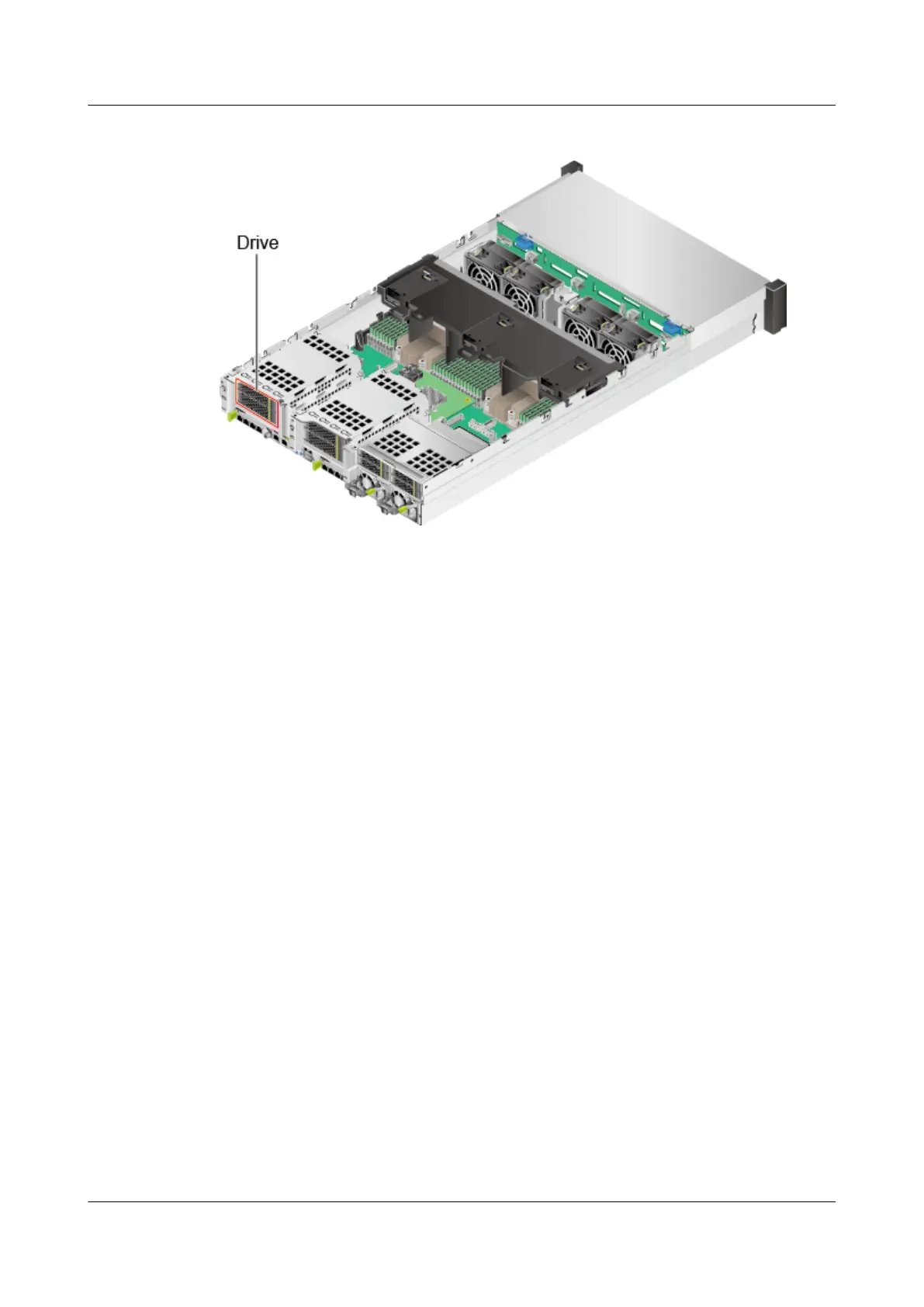

Figure 5-23 Positions of drives
Step 9 Connect cables to the drive module. For details, see 7 Internal Cabling.
Step 10 Install the chassis cover. For details, see 3.7 Installing the Chassis Cover.
Step 11 Install the server. For details, see 4.4 Installing the Server on Guide Rails.
Step 12 Connect the power cables. For details, see 3.5 Connecting Cables to a PSU.
Step 13 Power on the server. For details, see 3.1 Powering On the Server.
Step 14 Log in to the iBMC WebUI, and check whether the new component is normal. For details, see
the TaiShan Rack Server iBMC User Guide.
----End
5.10.2 4 x 2.5-inch Rear Drive Assembly
To install the rear drive module, perform the following steps:
Step 1 Wear an ESD wrist strap. For details, see 12 Preventing Electrostatic Discharge.
Step 2 Power off the server. For details, see 3.2 Powering Off the Server.
Step 3 Remove the power cables. For details, see 3.4 Removing Cables from a PSU.
Step 4 Remove the server. For details, see 3.3 Removing the Server and Guide Rails.
Step 5 Remove the chassis cover. For details, see 3.6 Removing the Chassis Cover.
Step 6 Take the spare drive assembly out of its ESD bag.
Step 7 Install the rear drive assembly in the chassis and tighten the screws. See Figure 5-24.
TaiShan 2280 V2 Server
User Guide
5 Optional Part Installation
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 106
