Step 6 Remove the other guide rail in the same way.
----End
3.3.2 Removing the Server and Adjustable Guide Rails
Step 1 Wear an ESD wrist strap. For details, see 12 Preventing Electrostatic Discharge.
Step 2 Power off the server. For details, see 3.2 Powering Off the Server.
Step 3 Disconnect all power cables and signal cables from the server.
Step 4 Remove the server.
1. Loosen the captive screws on the server panel using a screwdriver. See (1) in Figure 3-3.

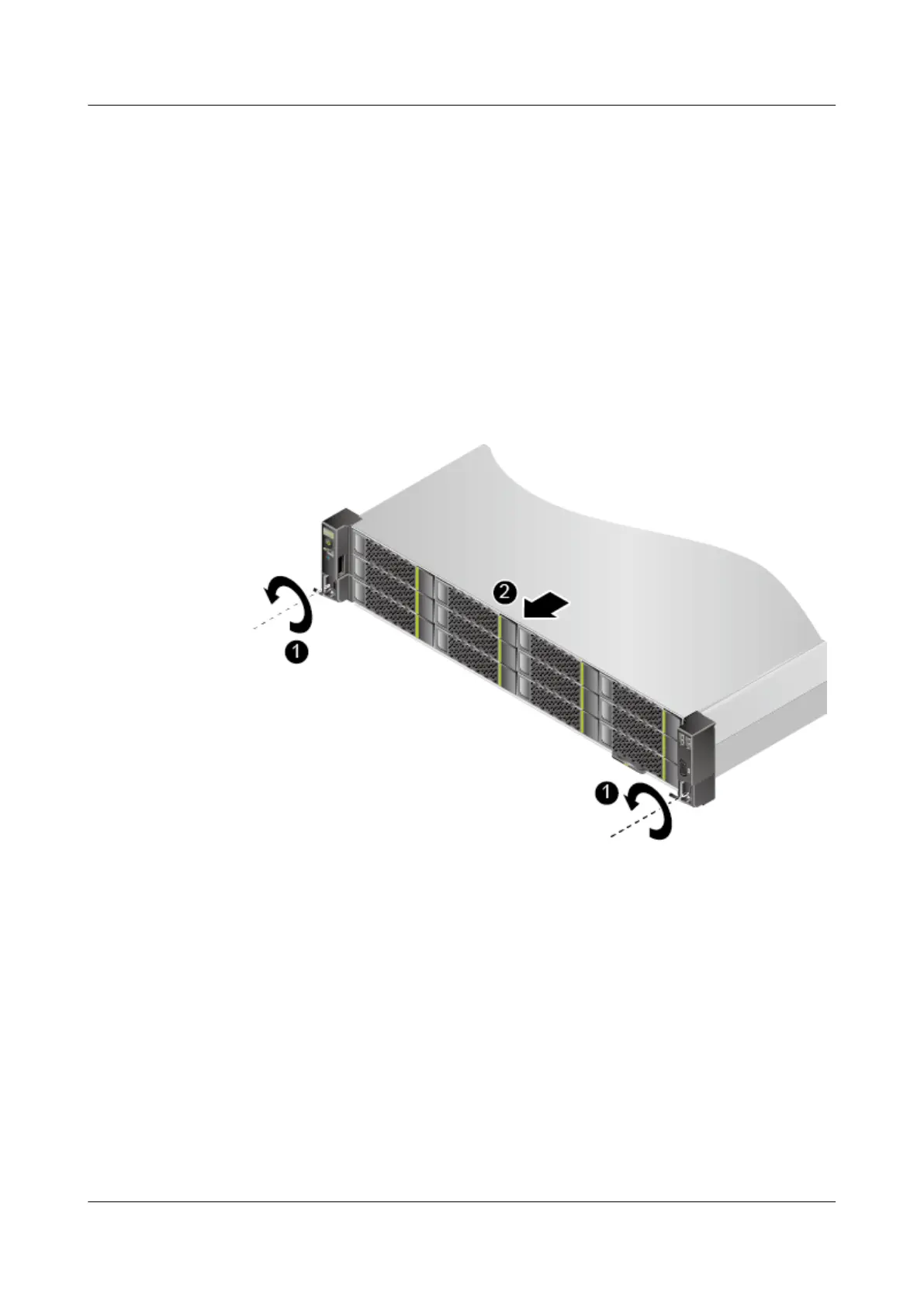

Figure 3-3 Removing the server
2. Pull out the server along the guide rails away from the cabinet. See (2) in Figure 3-3.
3. Place the removed server on an ESD platform.
Step 5 Loosen the M6 screw from the lowest square hole at the rear of a guide rail. See (1) in Figure
3-4.
Step 6 Remove the two plugs from the middle square holes on both ends. See (2) in Figure 3-4.
Step 7 Slightly lift the guide rail, retract it from the square holes, and take it out. See (3) and (4) in
Figure 3-4.
TaiShan 2280 V2 Server
User Guide
3 Basic Operations
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 33
