Step 11 Install the chassis cover. For details, see 3.7 Installing the Chassis Cover.
Step 12 Install the server. For details, see 4.4 Installing the Server on Guide Rails.
Step 13 Connect the power cables. For details, see 3.5 Connecting Cables to a PSU.
Step 14 Power on the server. For details, see 3.1 Powering On the Server.
----End
3.12 Removing a Riser Card Tray
Step 1 Wear an ESD wrist strap. For details, see 12 Preventing Electrostatic Discharge.
Step 2 Power off the server. For details, see 3.2 Powering Off the Server.
Step 3 Remove the power cables. For details, see 3.4 Removing Cables from a PSU.
Step 4 Remove the server. For details, see 3.3 Removing the Server and Guide Rails.
Step 5 Remove the chassis cover. For details, see 3.6-Removing the Chassis Cover.
Step 6 For riser module 1 or 2, remove the screw that secures the riser card tray and lift the tray. See
Figure 3-17 or Figure 3-18.

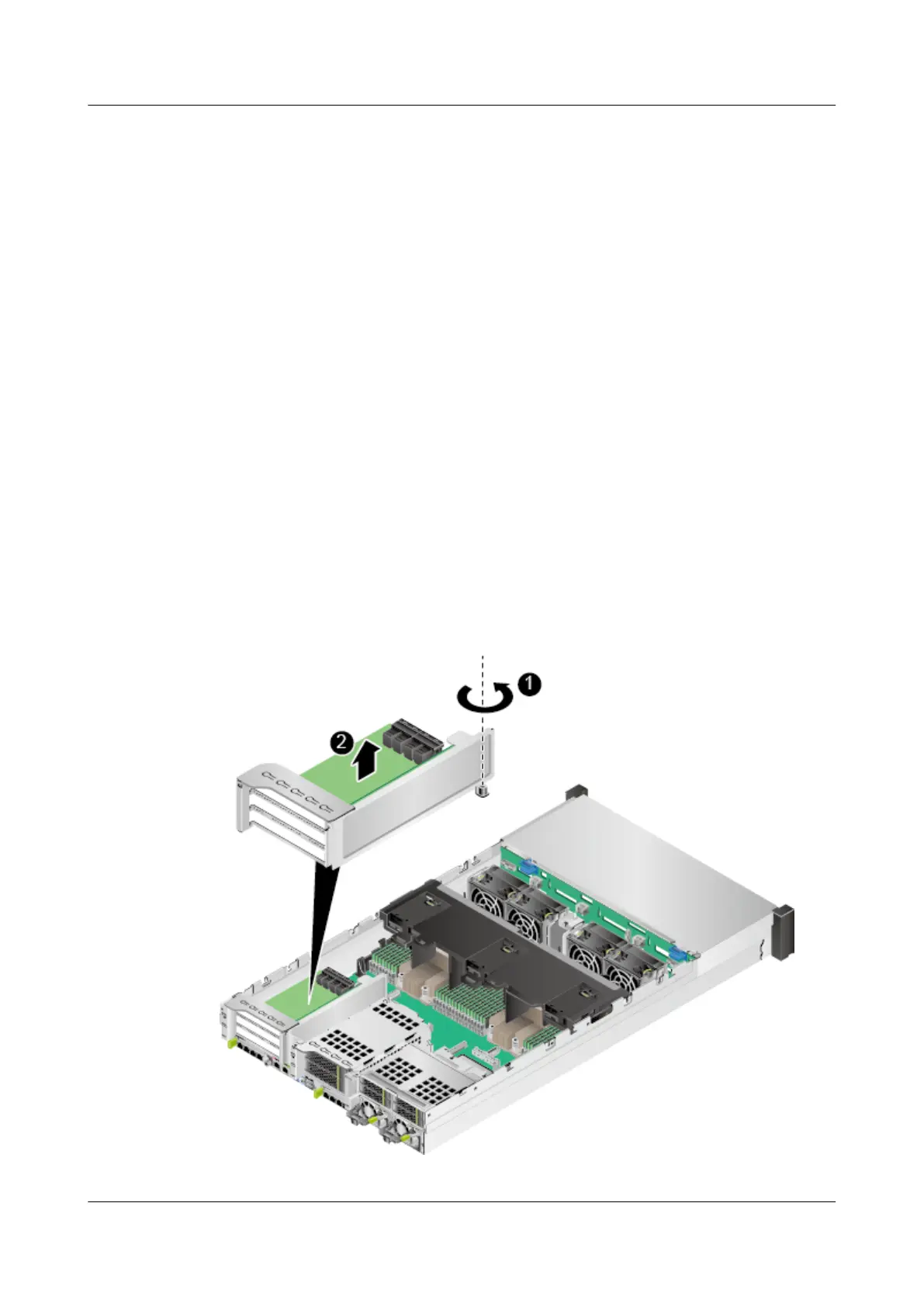

Figure 3-17 Removing the riser card tray of riser module 1
TaiShan 2280 V2 Server
User Guide
3 Basic Operations
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 44
