5.5 PCIe Card on a Riser Card
To install a PCIe card on a riser card, perform the following steps:
Step 1 Wear an ESD wrist strap. For details, see 12 Preventing Electrostatic Discharge.
Step 2 Power off the server. For details, see 3.2 Powering Off the Server.
Step 3 Remove the power cables. For details, see 3.4 Removing Cables from a PSU.
Step 4 Remove the server. For details, see 3.3 Removing the Server and Guide Rails.
Step 5 Remove the chassis cover. For details, see 3.6 Removing the Chassis Cover.
Step 6 Remove the riser card tray where the PCIe card is to be installed. For details, see 3.12
Removing a Riser Card Tray.

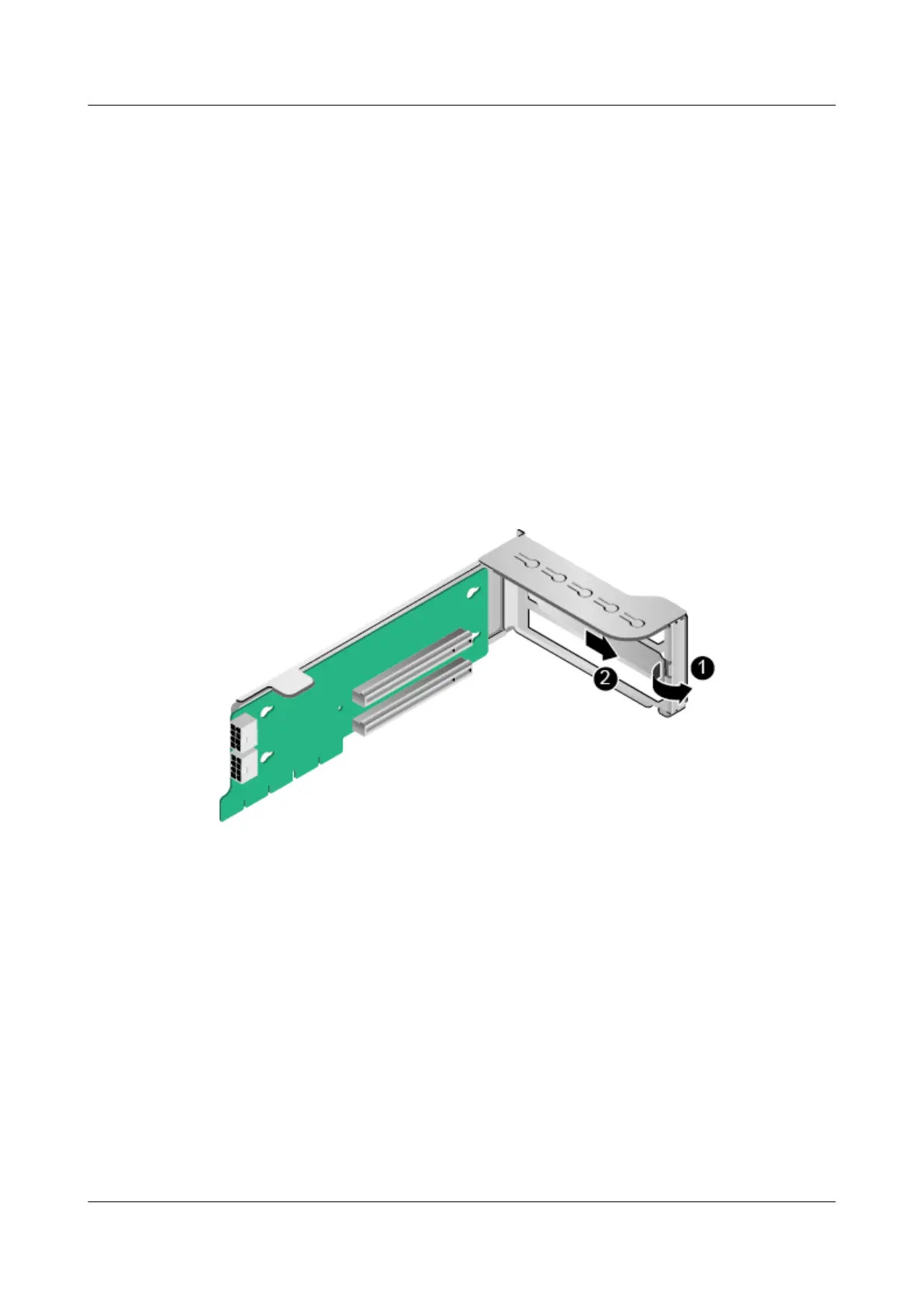

Step 7 Remove the PCIe card filler panel from the riser card tray. See Figure 5-9.
Figure 5-9 Removing a PCIe card filler panel
Step 8 Take a spare PCIe card out of its ESD bag.
Step 9 Insert the PCIe card into a PCIe slot. See (1) in Figure 5-10.
Step 10 Close the latch. See (2) in Figure 5-10.
TaiShan 2280 V2 Server
User Guide
5 Optional Part Installation
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 91
