Huawei TaiShan 2280 V2 User Manual

7.4 Internal Cabling for a Server with 8 x 2.5-inch SAS/
SATA Drives and 12 x 2.5-inch NVMe SSDs
Left and Right Mounting Ear Cabling

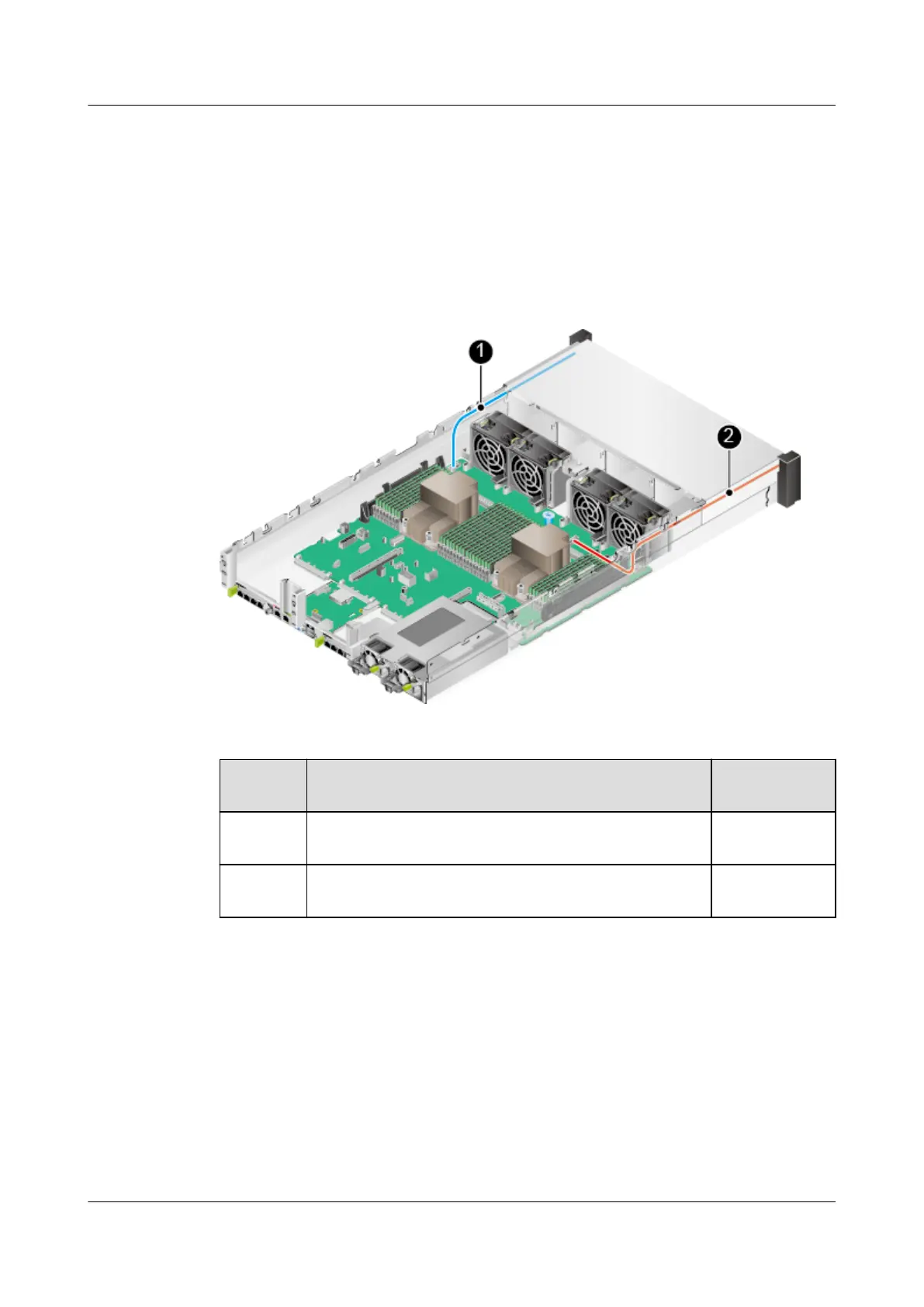

Figure 7-14 Left and right mounting ear cabling
Table 7-14 Left and right mounting ear cabling
No.
Description Huawei Part
Number
1 Signal cable for connecting the mainboard (J6030) to the
right mounting ear plate
04052311
2 Signal cable for connecting the mainboard (J92) to the left
mounting ear plate
04080650
TaiShan 2280 V2 Server
User Guide
7 Internal Cabling
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 123
