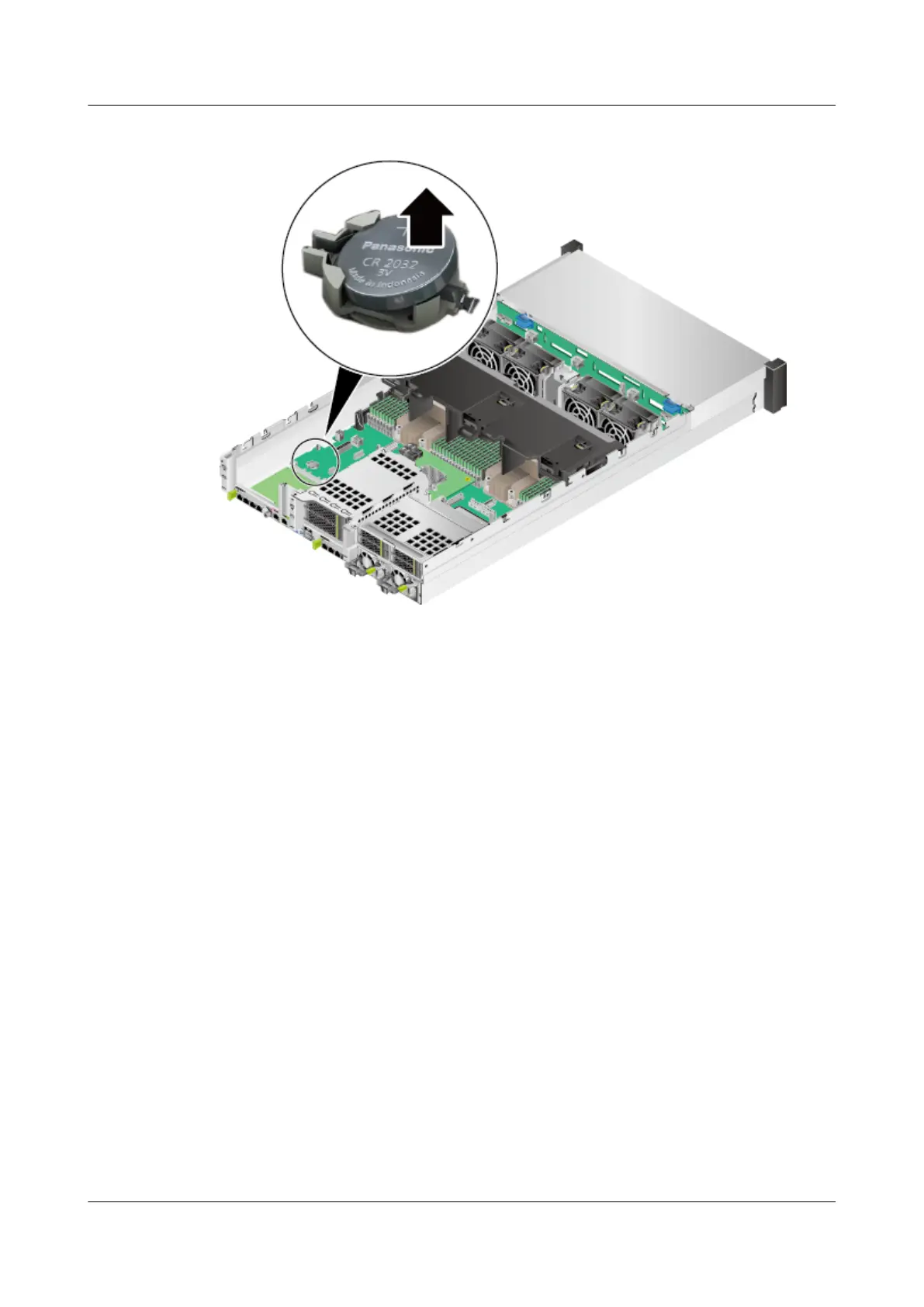

Figure 10-2 Removing the battery
Step 8 Place the removed battery in an ESD bag.
----End
10.2 Installing the Battery
Step 1 Wear an ESD wrist strap. For details, see 12 Preventing Electrostatic Discharge.
Step 2 Power off the server. For details, see 3.2 Powering Off the Server.
Step 3 Remove the power cables. For details, see 3.4 Removing Cables from a PSU.
Step 4 Remove the server. For details, see 3.3 Removing the Server and Guide Rails.
Step 5 Remove the chassis cover. For details, see 3.6 Removing the Chassis Cover.
Step 6 Remove the drive module (as shown in Figure 10-3) or the riser module above the battery.
For details about how to remove the riser module, see 3.12-Removing a Riser Card Tray.
TaiShan 2280 V2 Server
User Guide
10 Battery
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 134
