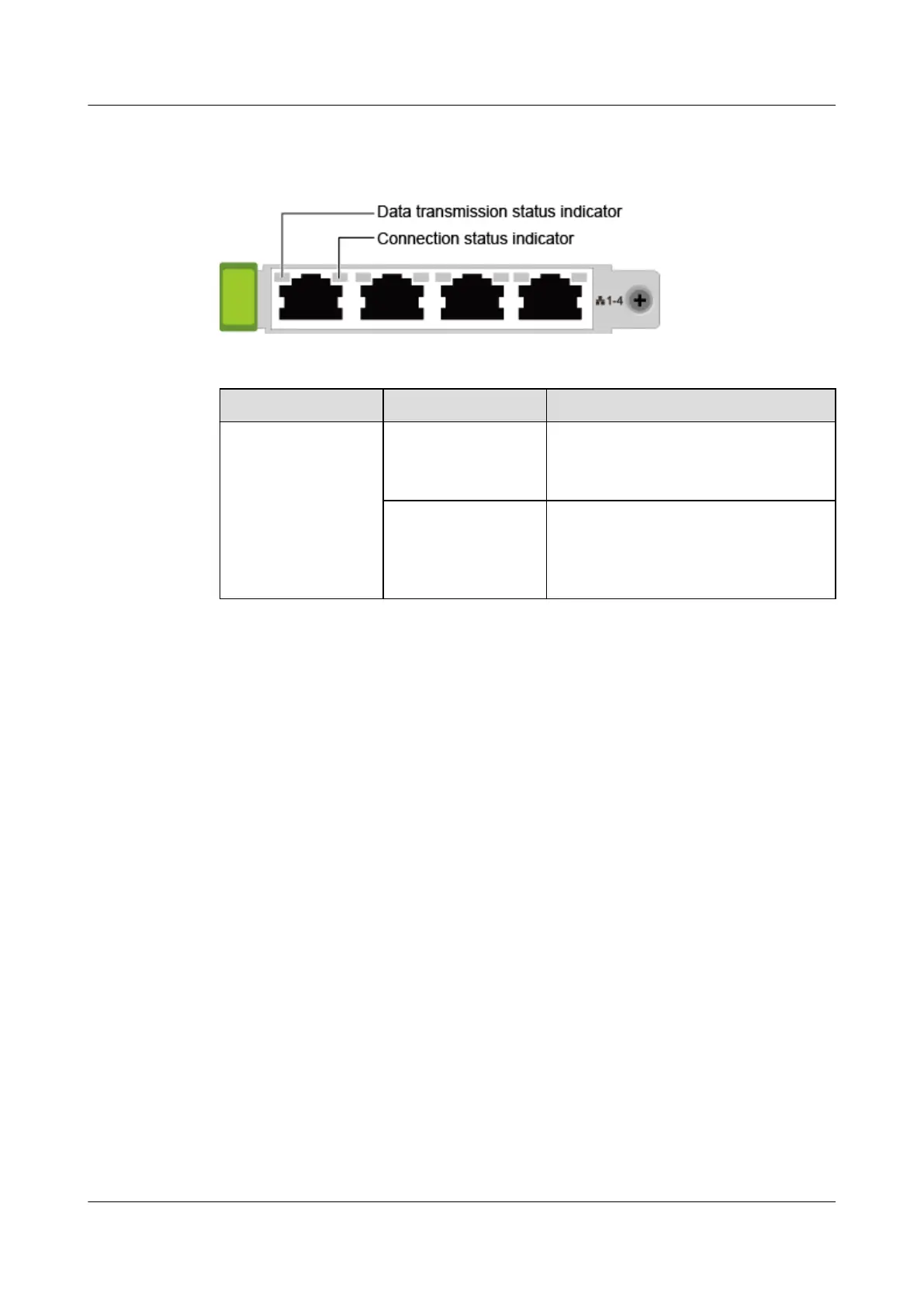

The following figure shows the indicators on the FlexIOs.
Figure 2-10 FlexIO with four GE electrical ports
Table 2-6 FlexIO indicators
NIC Type
Indicator State Description
FlexIO with four GE
electrical ports
Data transmission
status indicator
l Blinking yellow: Data is being
transmitted.
l Off: No data is being transmitted.
Connection status
indicator
l Steady green: The network port is
properly connected.
l Off: The network port is not
connected.
2.6 Mainboard and iBMC Card Connectors
Figure 2-11 shows connectors on the mainboard and iBMC card.
TaiShan 2280 V2 Server
User Guide
2 Components
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 11
