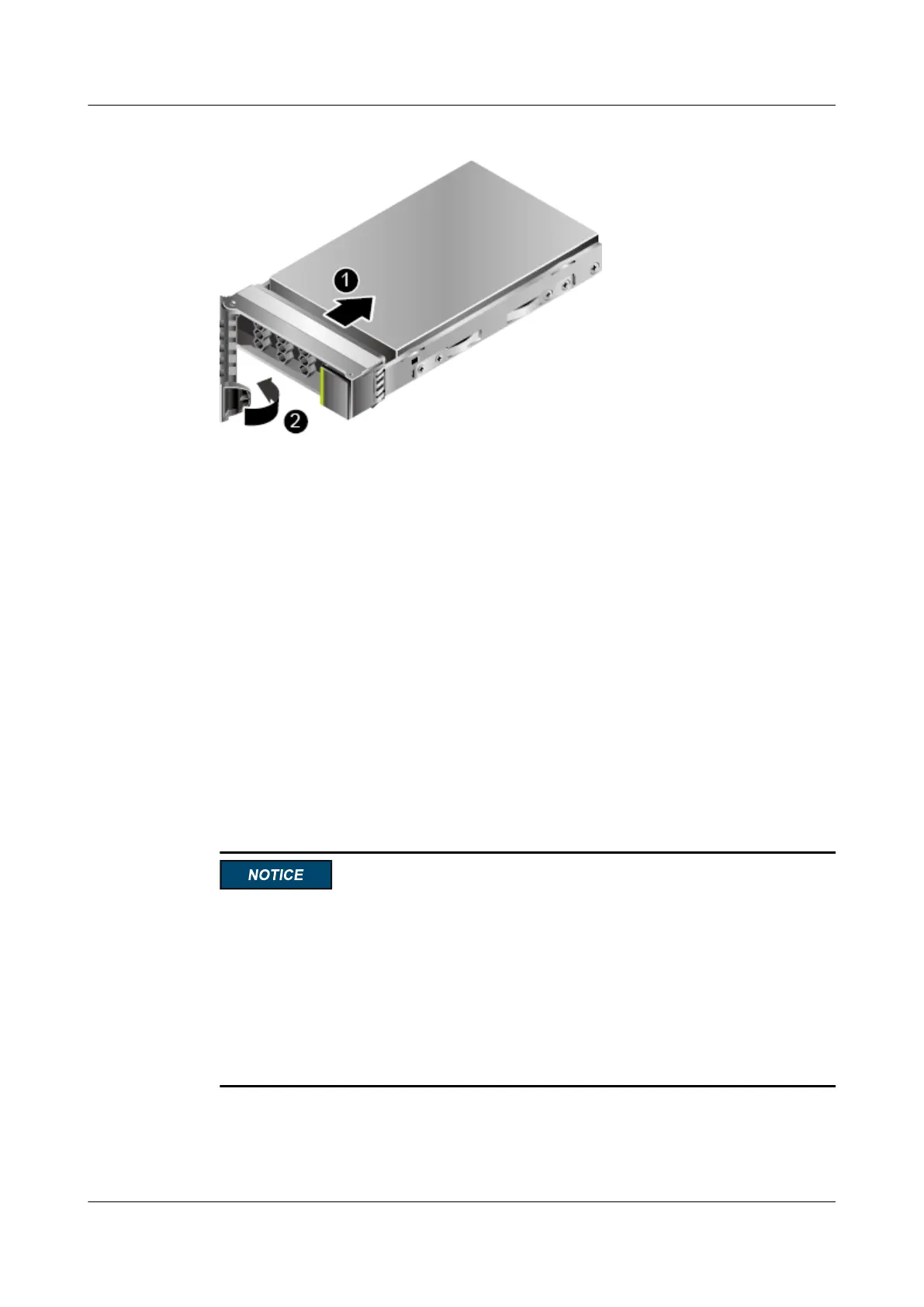

Figure 5-6 Installing a drive
Step 6 Ensure that the ejector lever is fastened to the chassis beam, and then close it to completely
insert the drive into the chassis. See (2) in Figure 5-6.
Step 7 If the server is equipped with a front bezel, install the bezel after installing the front drive. For
details, see 5.2.2 Installing the Front Bezel.
Step 8 If you need to restore data on the newly installed drive, see Troubleshooting > Hard Drive
Fault of the corresponding RAID controller card in the TaiShan Server RAID Controller
Card User Guide for detailed operations.
Step 9 Log in to the iBMC WebUI, and check whether the new component is normal. For details, see
the TaiShan Rack Server iBMC User Guide.
----End
5.4 AC PSU
To install an AC PSU, perform the following steps:
l PSUs on the same server must be of the same model.
l Use dedicated power cables to ensure equipment and personal safety.
l Power cables are used only for dedicated servers. Do not use them for other devices.
l Connect power cables of active and standby PSUs to different power distribution units
(PDUs) to ensure reliable system operating.
l Ground equipment before powering it on. Otherwise, high leakage current may cause
equipment damage.
Step 1 Wear an ESD wrist strap. For details, see 12 Preventing Electrostatic Discharge.
Step 2 Remove the PSU filler. See Figure 5-7.
TaiShan 2280 V2 Server
User Guide
5 Optional Part Installation
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 89
