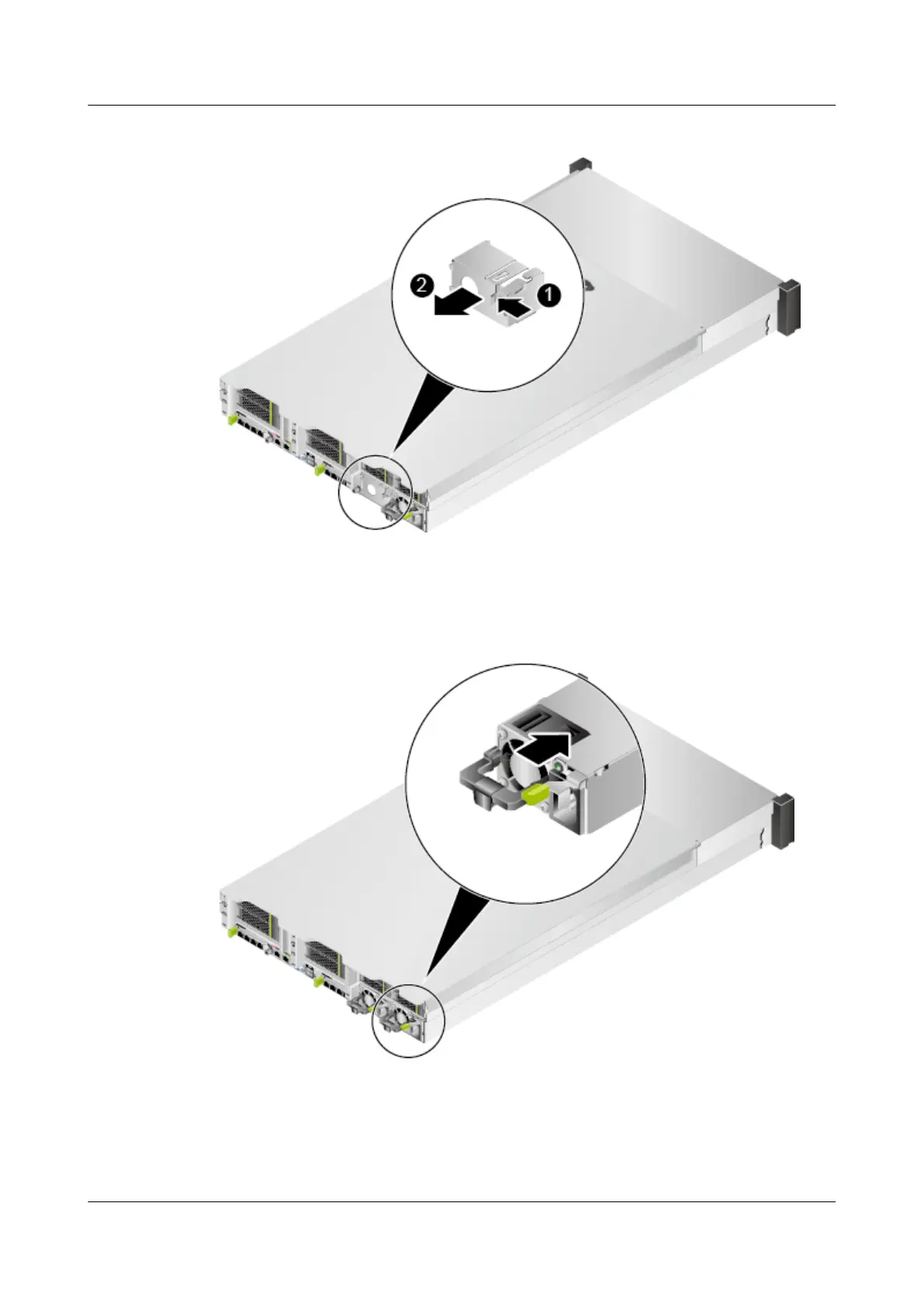

Figure 5-7 Removing a PSU filler
Step 3 Take a spare AC PSU out of its ESD bag.
Step 4 Push the spare AC PSU along the guide rails into a slot until the PSU clicks into place. See
Figure 5-8.
Figure 5-8 Installing a PSU
Step 5 Connect the power cable to the PSU. See 3.5 Connecting Cables to a PSU.
Step 6 Log in to the iBMC WebUI, and check whether the new component is normal. For details, see
the TaiShan Rack Server iBMC User Guide.
----End
TaiShan 2280 V2 Server
User Guide
5 Optional Part Installation
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 90
