5.9 FlexIO
Installing a FlexIO
Step 1 Wear an ESD wrist strap. For details, see 12 Preventing Electrostatic Discharge.
Step 2 Power off the server. For details, see 3.2 Powering Off the Server.
Step 3 Remove the power cables. For details, see 3.4 Removing Cables from a PSU.
Step 4 Remove the server. For details, see 3.3 Removing the Server and Guide Rails.
Step 5 Remove the filler panel. See Figure 5-20.

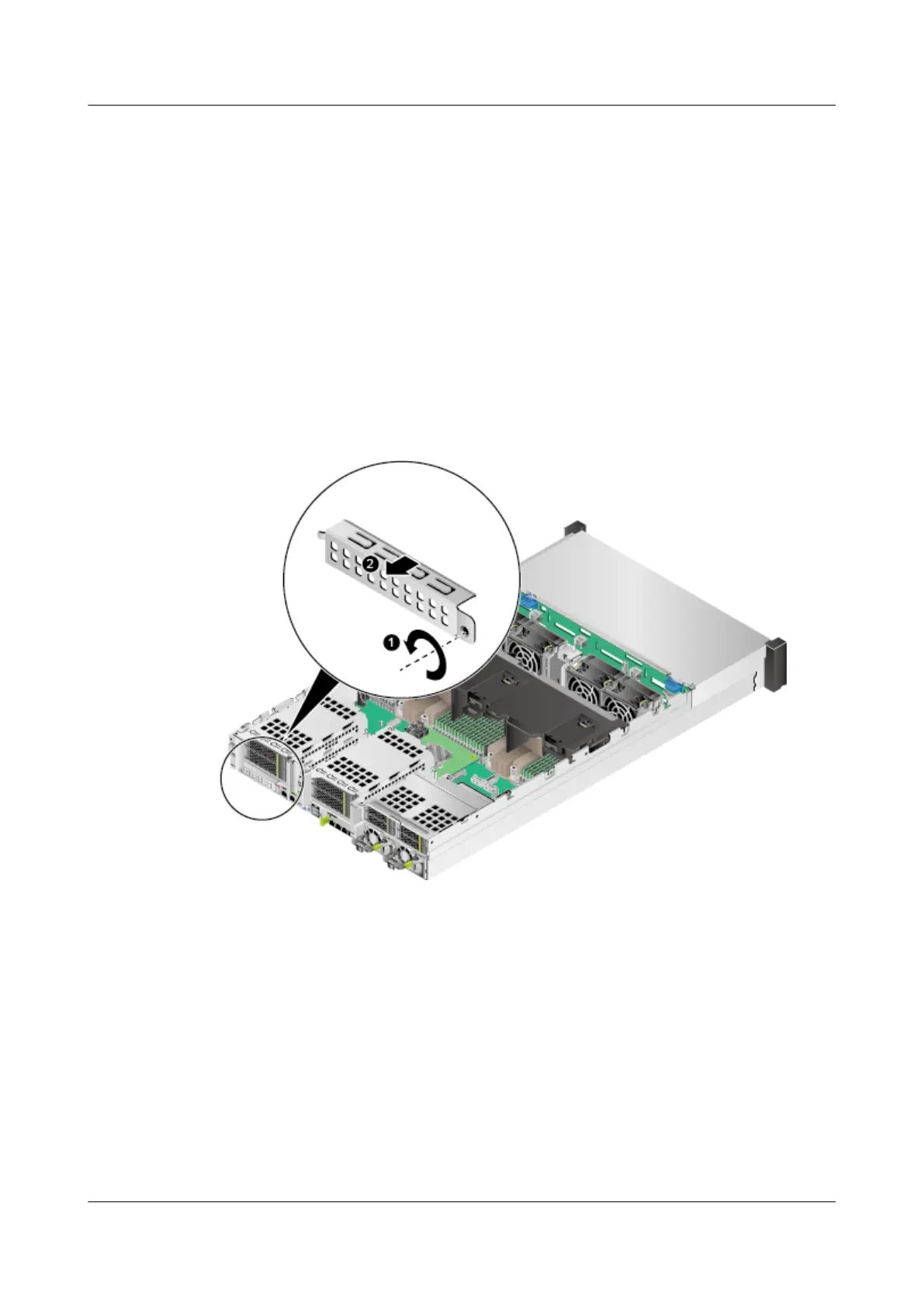

Figure 5-20 Removing the filler panel
Step 6 Take a spare FlexIO out of its ESD bag.
Step 7 Insert the FlexIO into the slot and push it into the chassis until it cannot be pushed any further.
Check whether the captive screw is securely attached to the rear panel. See (1) in Figure
5-21.
TaiShan 2280 V2 Server
User Guide
5 Optional Part Installation
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 103
