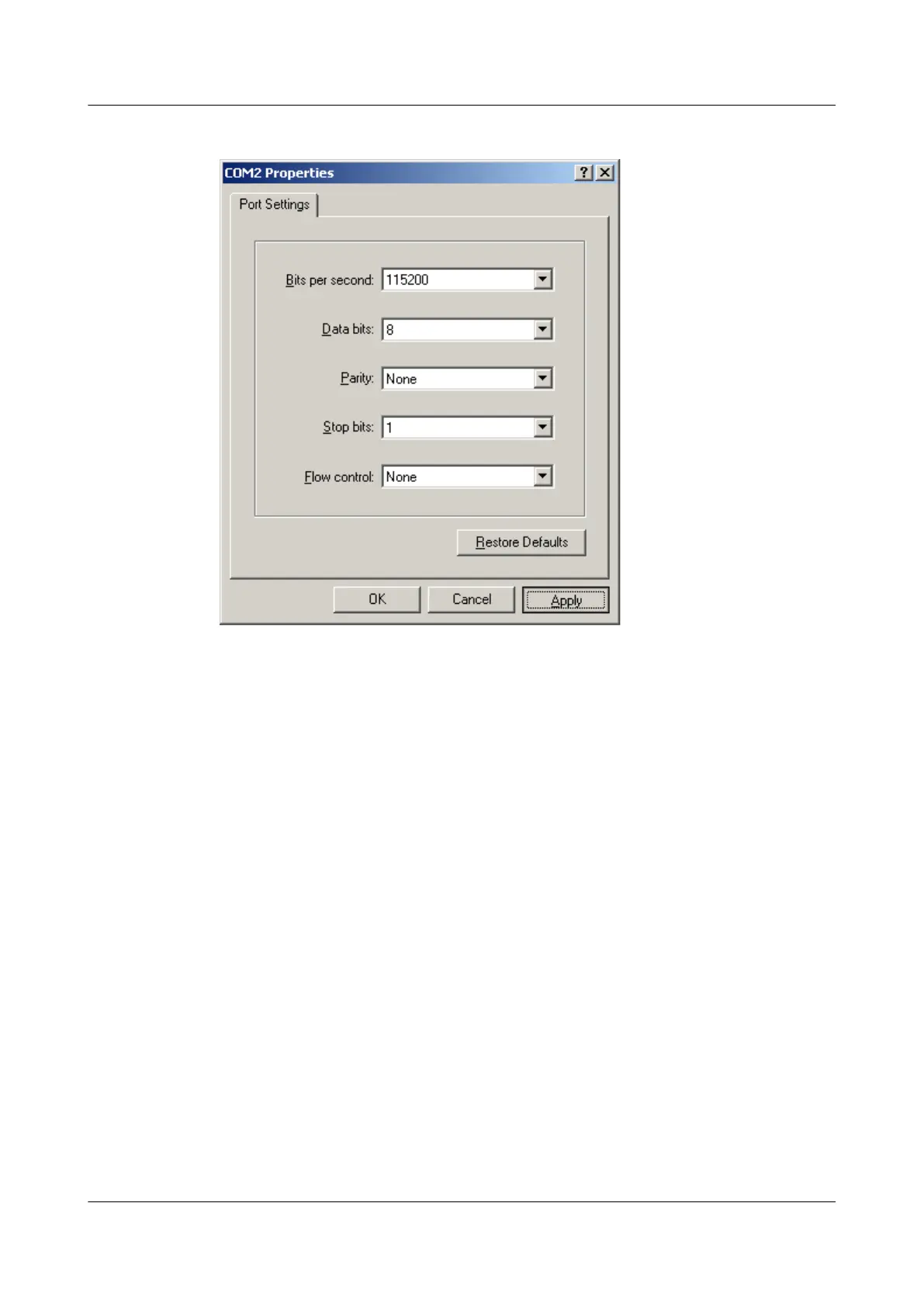

Figure 14-4 HyperTerminal Properties
Step 4 Enter the user name and password to access the CLI.
----End
14.3 Logging In to the Server Using the IRC
Download the Independent Remote Console (IRC) at IRC.
Windows
The following Windows versions are supported:
l Windows 7 32-bit or 64-bit
l Windows 8 32-bit or 64-bit
l Windows 10 32-bit or 64-bit
l Windows Server 2008 R2 32-bit or 64-bit
l Windows Server 2012 64-bit
Step 1 Configure an IP address for the client (PC) to enable communication between the client and
the iBMC.
The IP address configured and the iBMC management network port IP address must be on the
same network segment.
Step 2 Double-click KVM.exe.
A dialog box similar to the one shown in Figure 14-5 is displayed.
TaiShan 2280 V2 Server
User Guide
14 Common Operations
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 151
