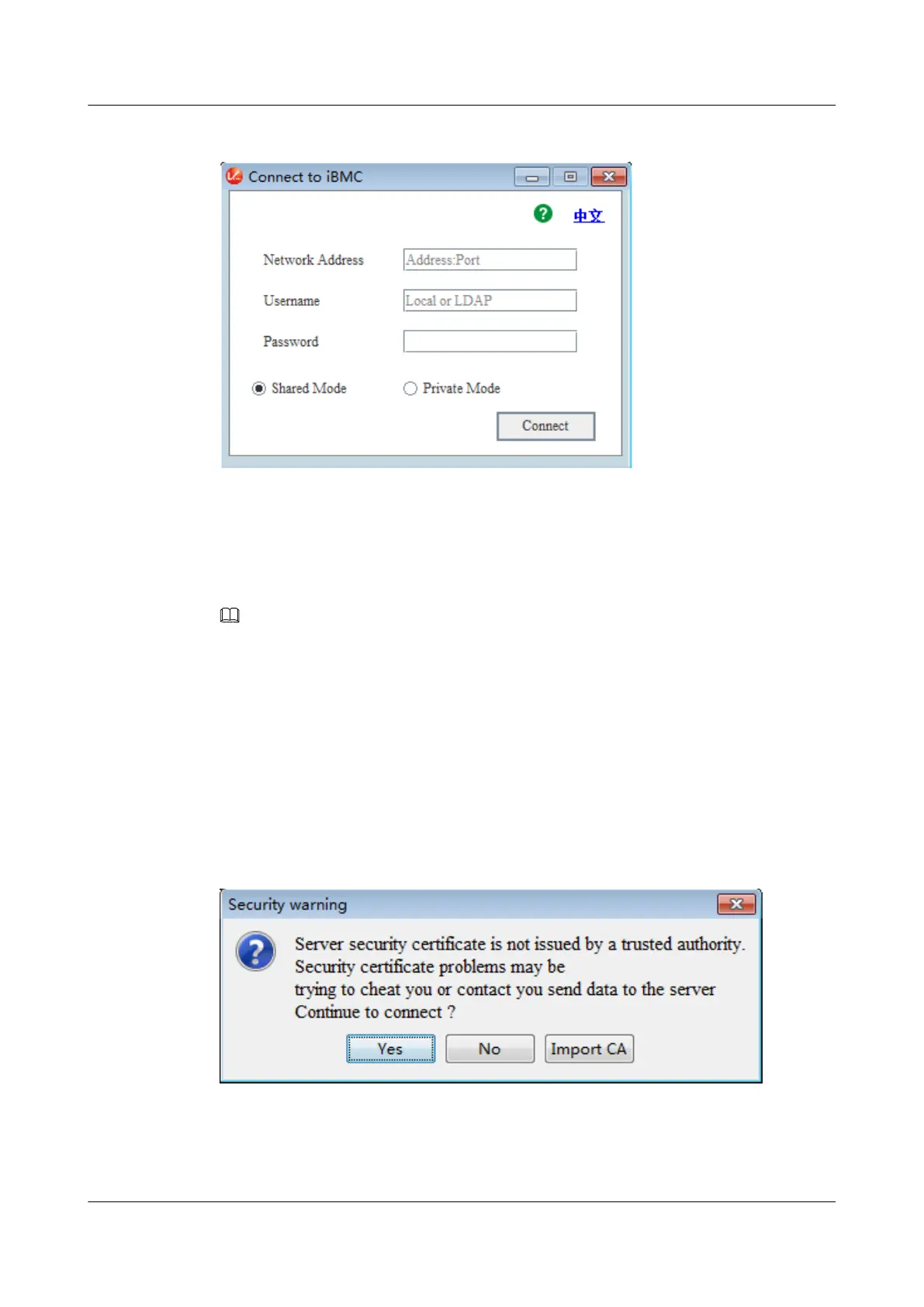

Figure 14-5 Login interface
Step 3 Enter the network address, user name, and password.
The network address can be in any of the following formats:
l iBMC management network port IP address (IPv4 or IPv6 address):Port number
l iBMC domain name address:Port number
NOTE
l Enter an IPv6 address in brackets or an IPv4 address directly, for example, [2001::64]:444 or
192.168.100.1:444.
l When the port number is the default port number 443, the port number can be left blank.
Step 4 Select a login mode, and click Connect.
l Shared Mode: allows two users to access and manage a server at a time. The two users
can see each other's operations.
l Private Mode: allows only one user to access and manage a server at a time.
Information shown in Figure 14-6 is displayed.
Figure 14-6 Security risk information
Step 5 Perform any of the following operations based on the actual situation:
l Click Yes to open the IRC.
l Click No to return to the login interface.
TaiShan 2280 V2 Server
User Guide
14 Common Operations
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 152
