Figure 3-18 Removing the riser card tray of riser module 2
Step 7 For riser module 3, remove the screw that secures the upper riser card tray and lift the tray.
See Figure 3-19. Then remove the lower riser card tray. See Figure 3-20.

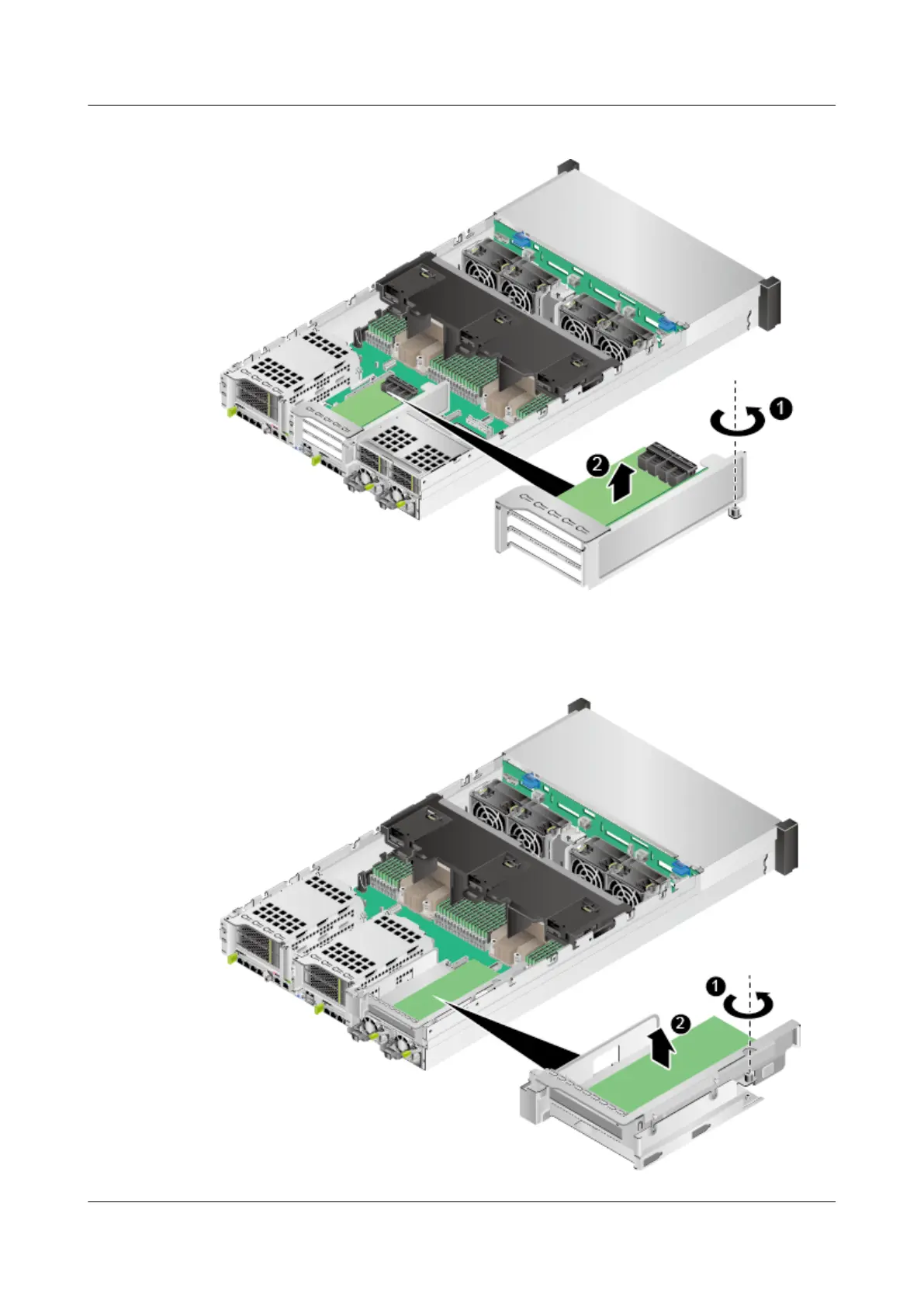

Figure 3-19 Removing the upper riser card tray of riser module 3
