1. Loosen the captive screws on the server panel using a screwdriver. See (1) in Figure 3-1.

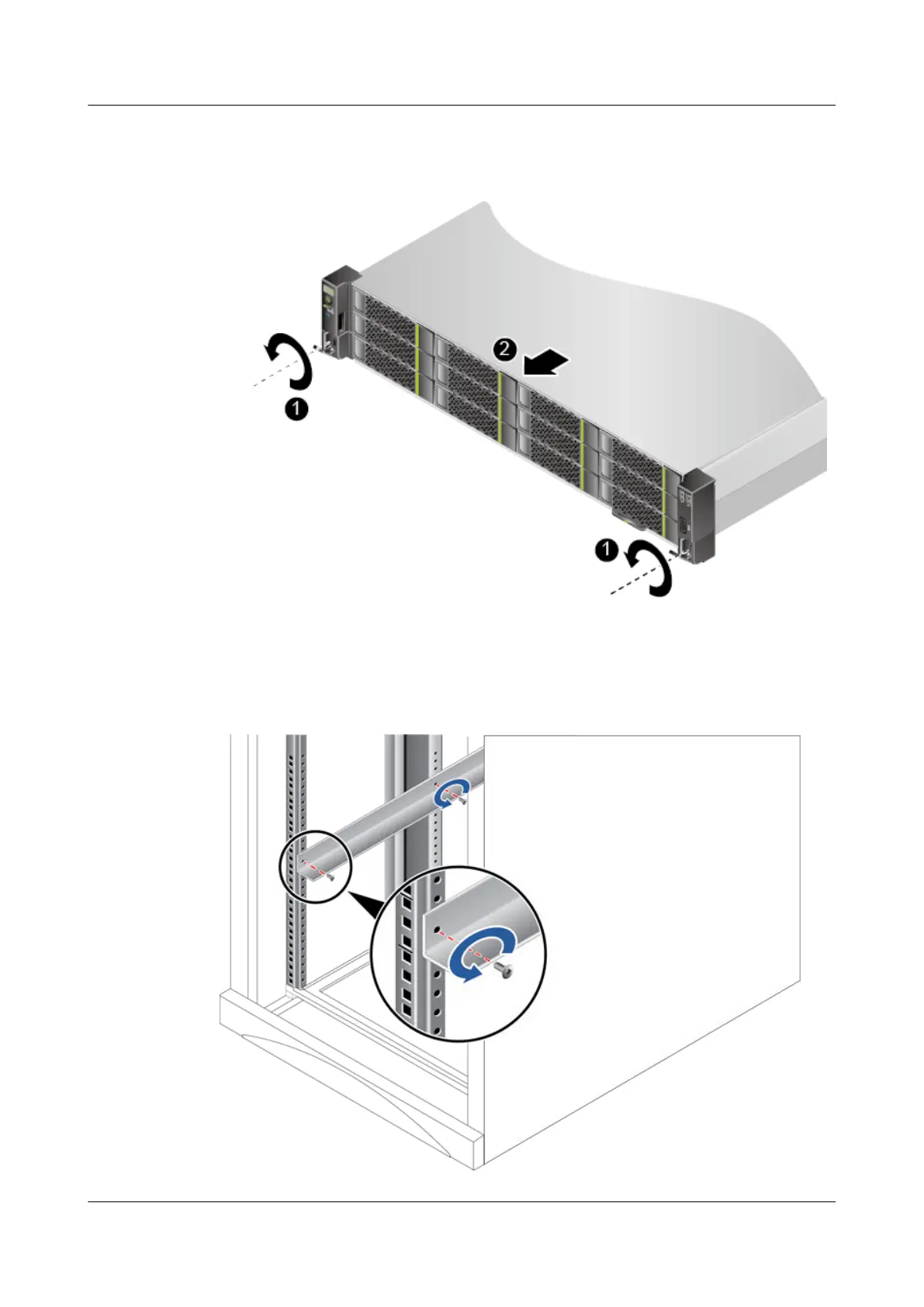

Figure 3-1 Removing the server
2. Pull out the server from the cabinet along the guide rails away. See (2) in Figure 3-1.
3. Place the removed server on an ESD platform.
Step 5 Remove the screws that secure a guide rail. See Figure 3-2.
Figure 3-2 Removing an L-shaped guide rail
TaiShan 2280 V2 Server
User Guide
3 Basic Operations
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 32
