Huawei TaiShan 2280 V2 User Manual

Table 2-7 Drive slot numbers of a server with 12 x 3.5-inch drives in Expander mode
Physical Slot Number Slot Number Identified
by iBMC
Slot Number Identified
by RAID Controller
40 Disk40 12
41 Disk41 13
42 Disk42 14
43 Disk43 15
l Figure 2-21 shows the drive slot numbers of a server with 12 x 3.5-inch drives in pass-
through mode.

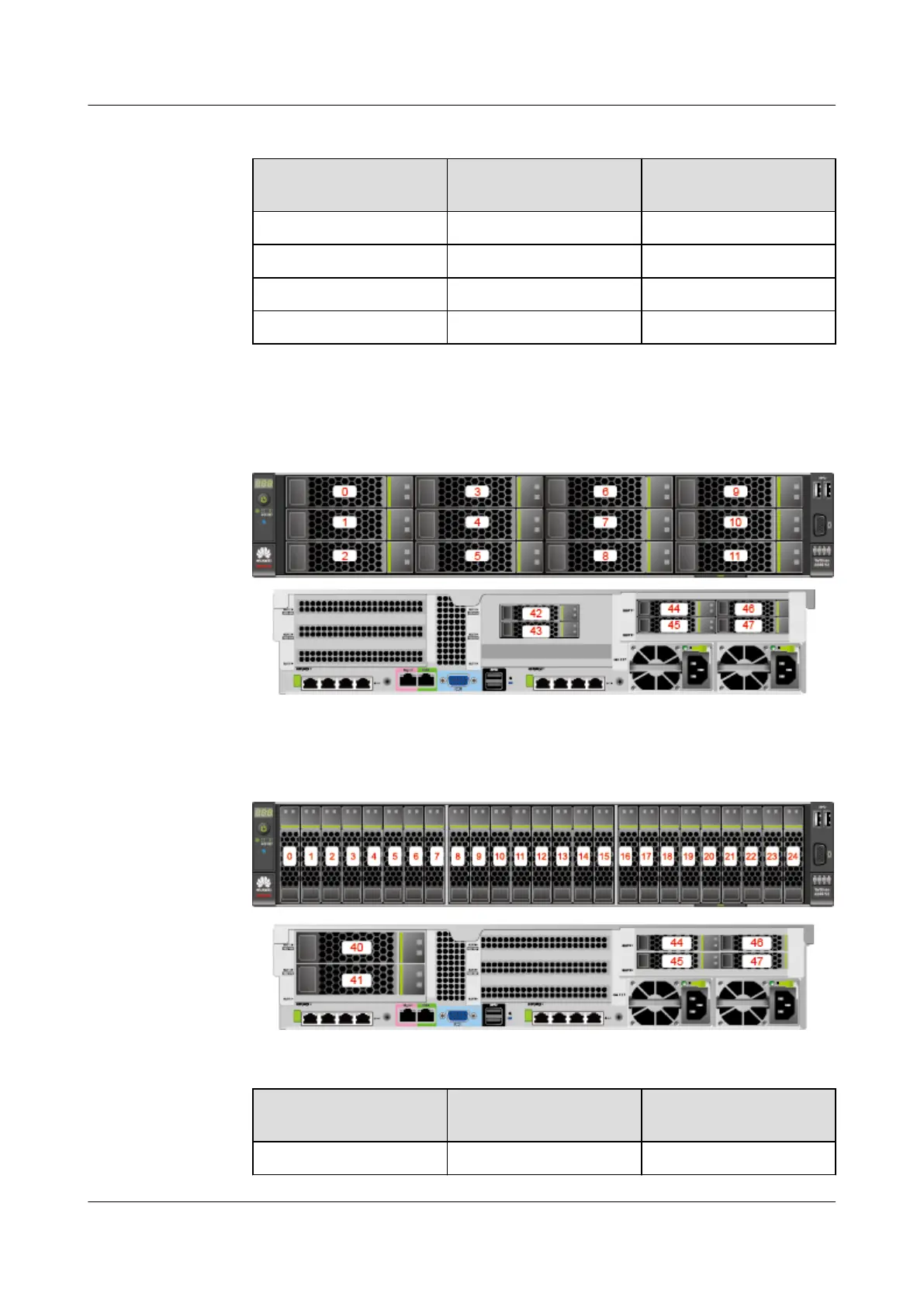

Figure 2-21 Server with 12 x 3.5-inch drives in pass-through mode
l Figure 2-22 shows the drive slot numbers of a server with 25 x 2.5-inch drives in
Expander mode.
Figure 2-22 Server with 25 x 2.5-inch drives in Expander mode
Table 2-8 Drive slot numbers of a server with 25 x 2.5-inch drives in Expander mode
Physical Slot Number
Slot Number Identified
by iBMC
Slot Number Identified
by RAID Controller
40 Disk40 25
TaiShan 2280 V2 Server
User Guide
2 Components
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 17
