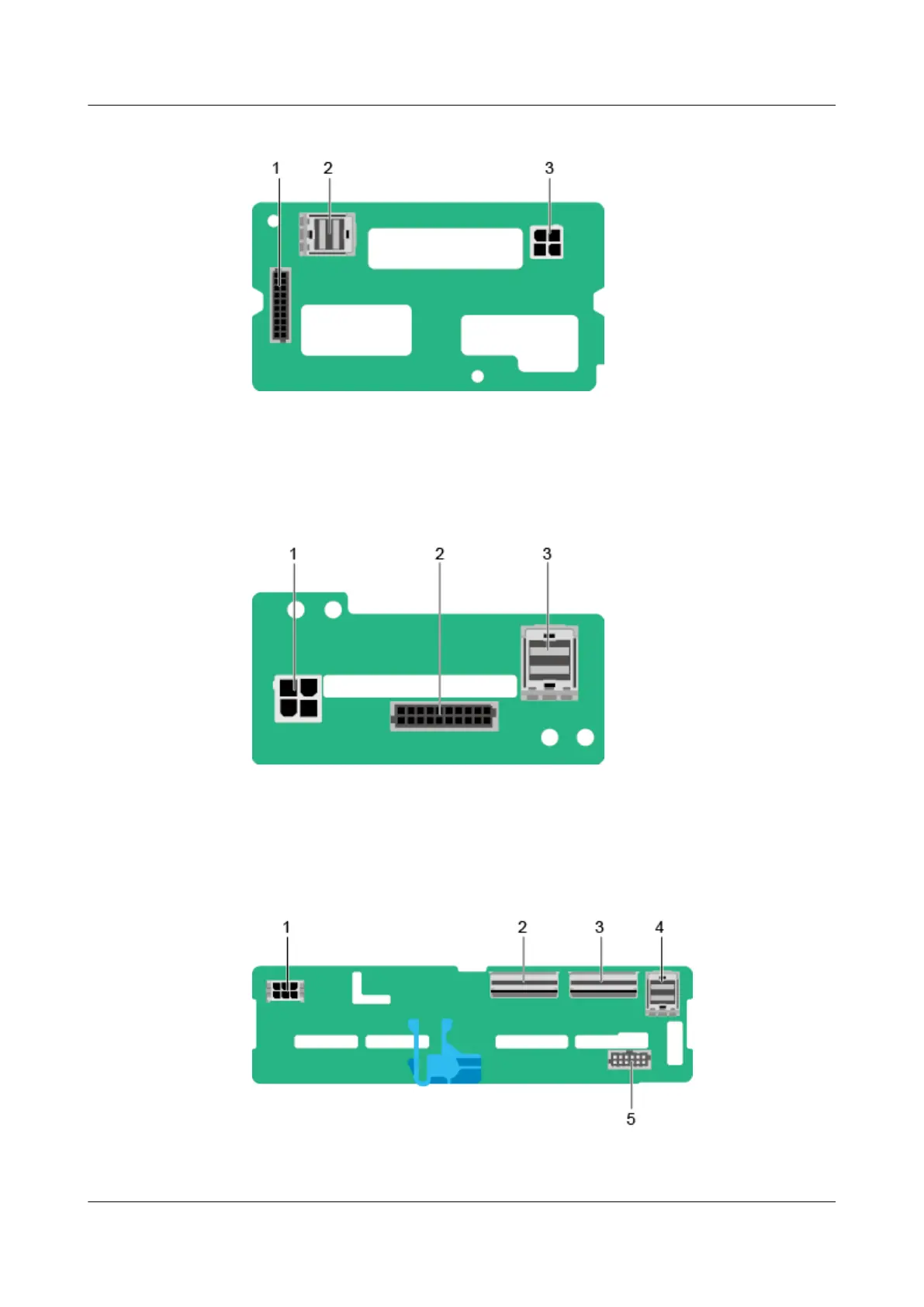

Figure 2-16 Backplane for two 3.5-inch rear drives (BOM 03026AJF)
1 Indicator signal cable connector (J5) 2 mini-SAS HD connector (J2)
3 Power connector (J1) - -
l Figure 2-17 shows connectors on the backplane for two 2.5-inch rear drives.
Figure 2-17 Backplane for two 2.5-inch rear drives (BOM 03025WCM)
1 Power connector (J1) 2 Indicator signal cable connector (J5)
3 mini-SAS HD connector (J2) - -
l Figure 2-18 shows connectors on the backplane for four 2.5-inch rear drives.
Figure 2-18 Backplane for four 2.5-inch rear drives (BOM 03025VYV)
1 Power connector (REAR BP POWR3/J24) 2 Slimline A connector (SLIMLINE A/J8)
