5 Indicator signal cable connector (J1) 6 Power connector (J24)
7 Indicator signal cable connector (J35) - -

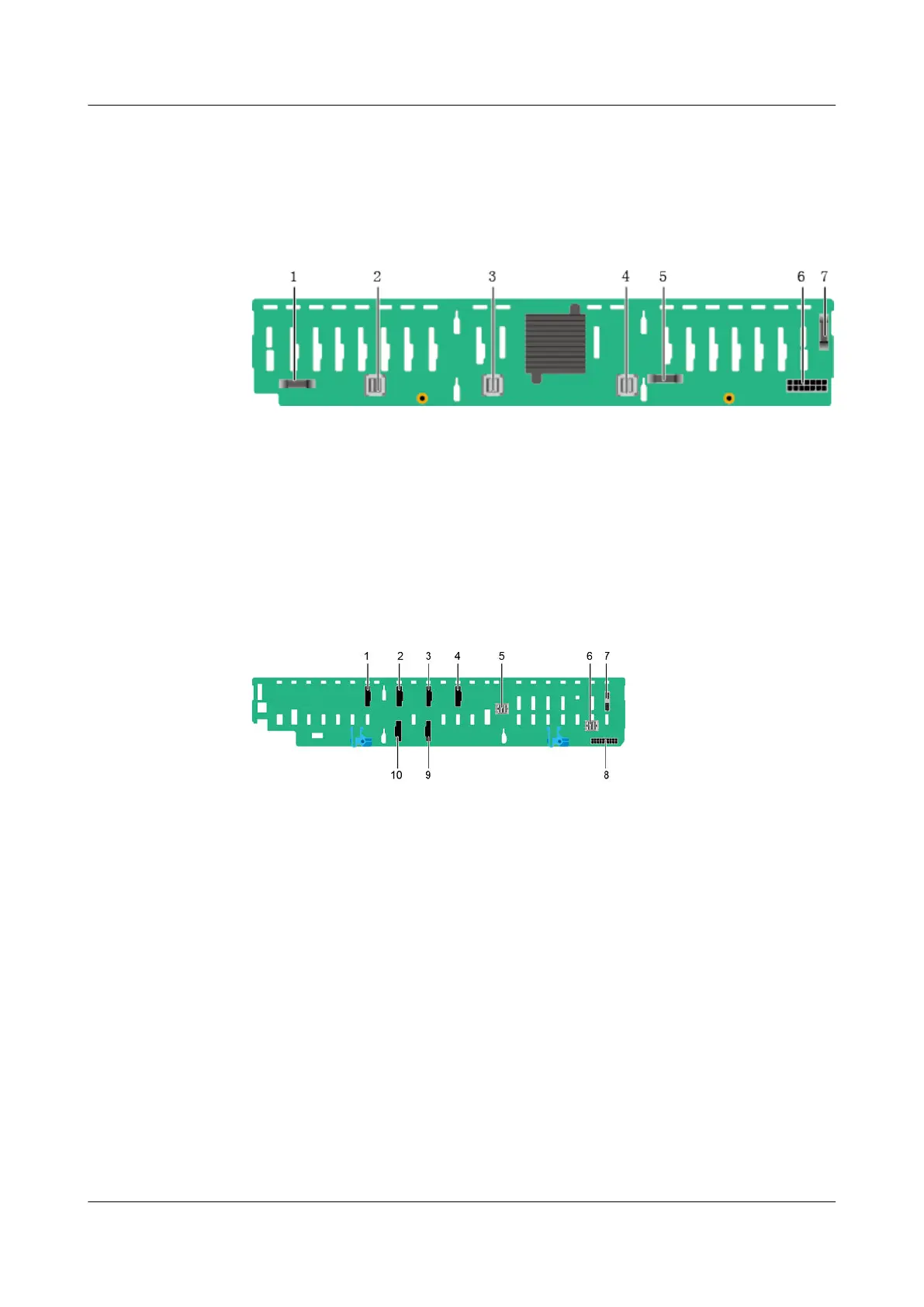

l Figure 2-14 shows connectors on the backplane for 25 x 2.5-inch drives.
Figure 2-14 Backplane for 25 x 2.5-inch drives (BOM 03024MSH)
1 Indicator signal cable connector (J32) 2 mini-SAS HD connector (PORT A/J28)
3 mini-SAS HD connector (PORT B/J29) 4 mini-SAS HD connector (REAR PORT/J31)
5 Indicator signal cable connector (J1) 6 Power connector (J24)
7 Indicator signal cable connector (J35) - -
l Figure 2-15 shows connectors on the backplane for 8 x 2.5-inch SAS/SATA drives and
12 x 2.5-inch NVMe SSDs.
Figure 2-15 Backplane for 8x 2.5-inch SAS/SATA drives and 12 x 2.5-inch NVMe
SSDs (BOM 03025EUL)
1 Slimline connector (PORT 2C/J31) 2 Slimline connector (PORT 1C/J19)
3 Slimline connector (PORT 1B/J18) 4 Slimline connector (PORT 1A/J17)
5 mini-SAS HD connector (PORT B/J16) 6 mini-SAS HD connector (PORT A/J15)
7 Indicator signal cable connector (J41) 8 Power connector (J37)
9 Slimline connector (PORT 2A/J21) 10 Slimline connector (PORT 2B/J32)
l Figure 2-16 shows connectors on the backplane for two 3.5-inch rear drives.
TaiShan 2280 V2 Server
User Guide
2 Components
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 14
