Front Drive Backplane SAS Signal Cabling

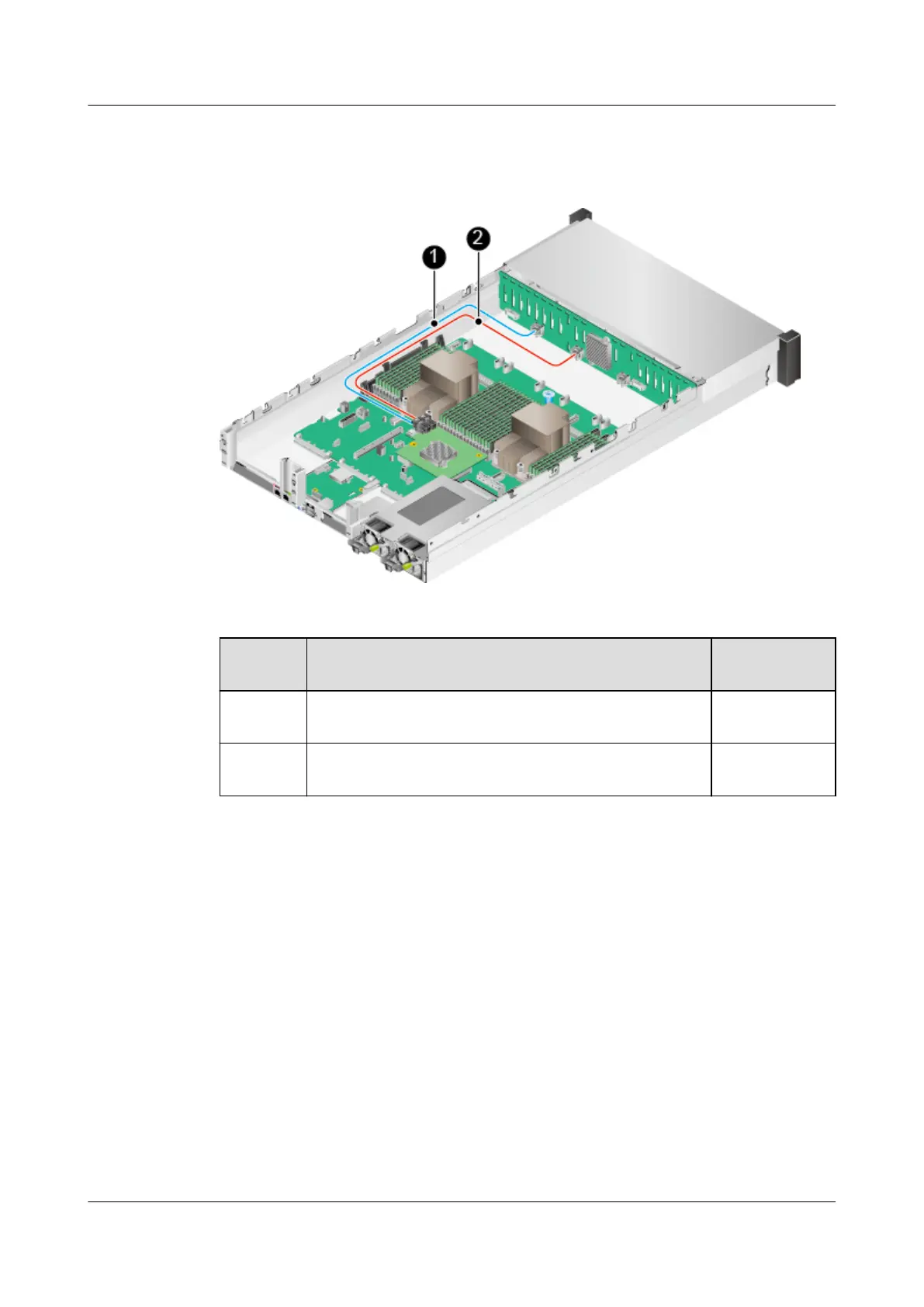

Figure 7-12 Front drive backplane SAS signal cabling
Table 7-12 Front drive backplane SAS signal cabling
No.
Description Huawei Part
Number
1 SAS cable for connecting PORT A (J28) of the drive
backplane to PORT A of the RAID controller card
04051020
2 SAS cable for connecting PORT B (J29) of the drive
backplane to PORT B of the RAID controller card
04051020
TaiShan 2280 V2 Server
User Guide
7 Internal Cabling
Issue 01 (2019-07-01) Copyright © Huawei Technologies Co., Ltd. 121
