Service Procedures for the Cover, Panels, and Connectors
3
Powermax65/85 SYNC Service Parts and Procedures 810440 65

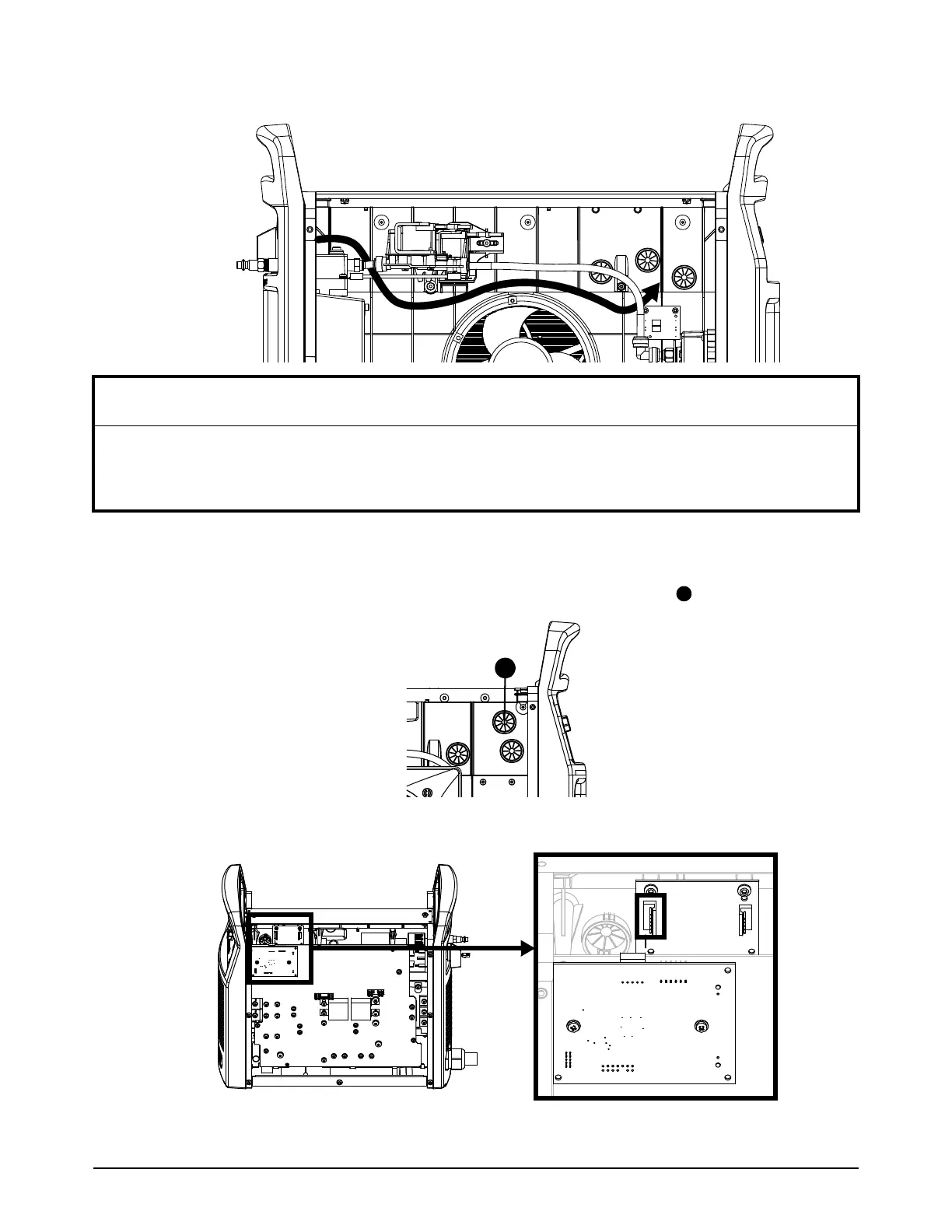

c. Put the RS-485 serial interface cable behind the gas tubes and below the solenoid valve.
d. Bundle the RS-485 serial interface cable with the cables that are already in the plasma
power supply with a new cable tie.
e. Put the RS-485 serial interface cable through the upper grommet on the center panel.
f. Connect the RS-485 serial interface cable connector to J1 on the RS-485 PCB.
NNOTICE
Do not put the RS-485 serial interface cable below the fan. This can cause the wires to be pinched by
the fan. If any wires get pinched by the fan, this can damage the wires and prevent the fan from
operating correctly.
8
8
