Torch Connect Console
3
100 809970 Field Service Bulletin XPR300

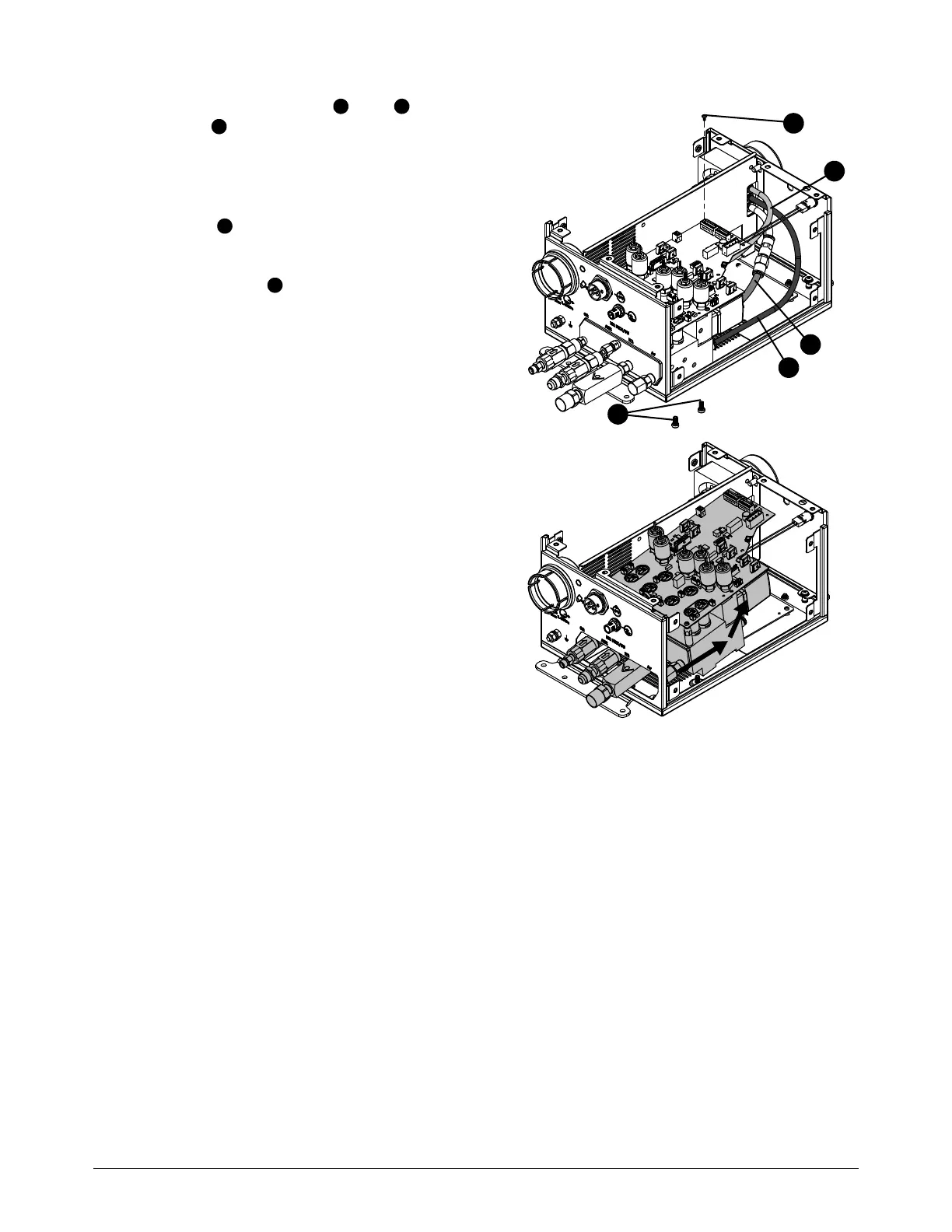

6. Disconnect the yellow , blue , and
black tubes from the push-to-connect
fittings on the manifold assembly. See How to
use push-to-connect fittings on page 90.
7. Use a Phillips screwdriver to remove the
screw from the control PCB.
8. Use a 3 mm, hexagonal-key wrench to remove
the 2 screws that hold the manifold
assembly in the bottom of the torch connect
console.
9. Slide the manifold assembly with control PCB
back and lift out.
2
3
4
6
5
2
3
4
5
6
