Hypertherm XPR300 Replacement Part Procedures

Parts List
5
132 809970 Instruction Manual XPR300

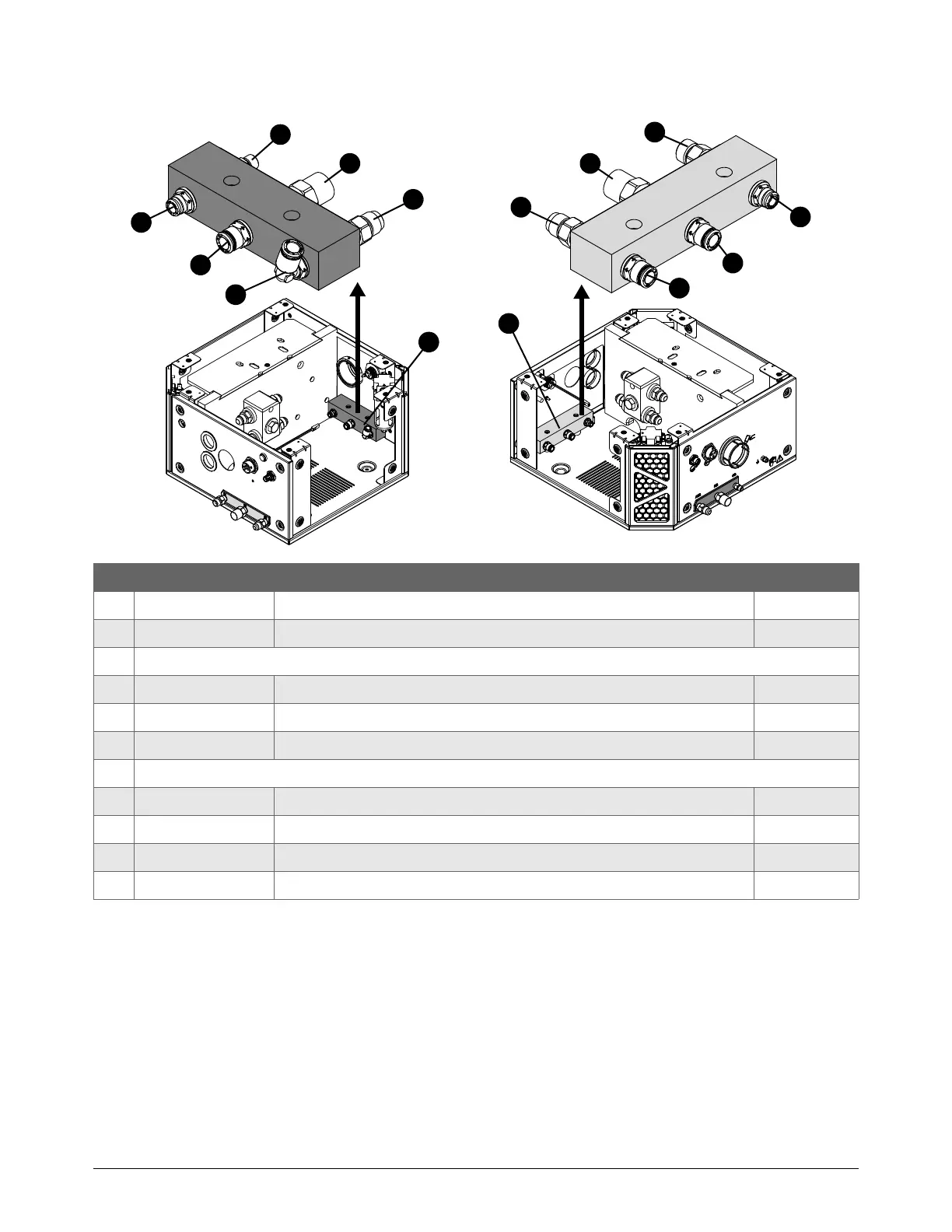

Core gas connect console manifolds and adapters
Part number Description Quantity
1 104806 Manifold: Gas output (no adapters) 1
2 104802 Manifold: Gas input (no adapters) 1
Push-to-connect adapters
3 015876 1/4 inch NPT X 1/4 inch tube 2
4 015811 1/4 inch NPT X 8 mm tube 3
5 015853 Male elbow: 1/4 inch NPT X 5/16 inch tube 1
Threaded adapters with thread sealant applied
6 015012 1/4 inch NPT X #6 male (air output and input) 2
7 015103 1/4 inch NPT X RH ‘B’ inert female (nitrogen output and input) 2
8 015116 1/8 inch NPT X RH ‘A’ male (oxygen output) 1
9 015009 1/4 inch NPT X RH ‘B’ male (oxygen input) 1
8
9
1
3
4
6
7
4
4
3
6
7
2
5

Hypertherm XPR300 Specifications

General

Brand	Hypertherm
Model	XPR300
Category	Welding System
Language	English
