Hypertherm XPR300 Replacement Part Procedures

Torch Connect Console
3
XPR300 Field Service Bulletin 809970 109

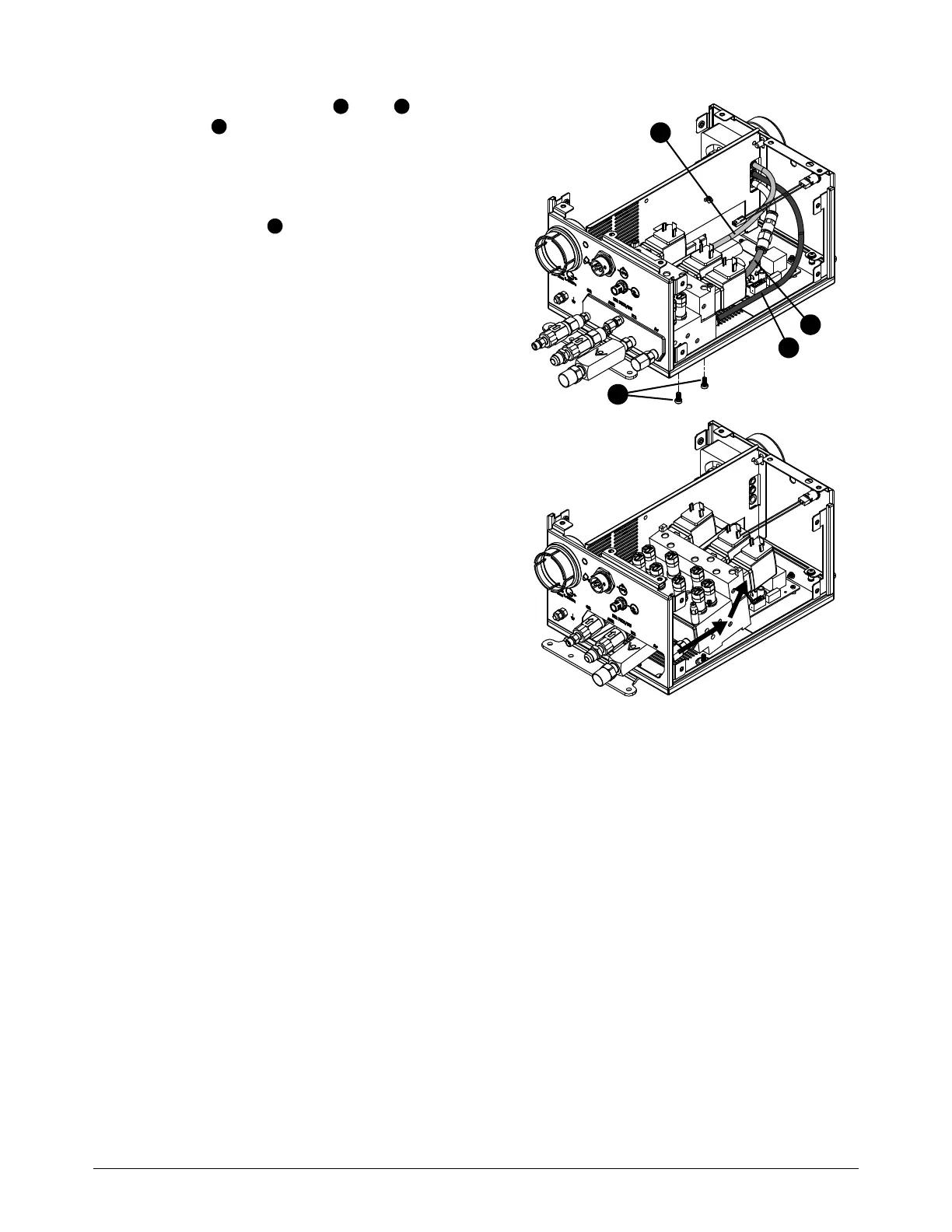

6. Disconnect the yellow , blue , and
black tubes from the push-to-connect
fittings on the manifold assembly. See How to
use push-to-connect fittings on page 90.
7. Use a 3 mm, hexagonal-key wrench to remove
the 2 screws that hold the manifold
assembly.
8. Slide the manifold assembly back and lift out
tubing side first.
Install the manifold assembly
1. Slide the new manifold assembly through the hole in the panel and into the torch connect
console.
2. Use a 3 mm, hexagonal-key wrench to install the 2 screws that hold the manifold assembly.
3. Connect the black, blue, and yellow tubes to the push-to-connect fittings on the manifold
assembly. See How to use push-to-connect fittings on page 90.
4. Install the 2 screws on the ohmic relay side.
5. Install the ohmic relay and bracket. See Install the ohmic relay and bracket on page 94.
6. Install control PCB. See Install the control PCB on page 104.
7. Connect the gas supply hoses.
2
3
4
5
2
3
4
5
