Hypertherm XPR300 Replacement Part Procedures

Parts List
5
126 809970 Instruction Manual XPR300

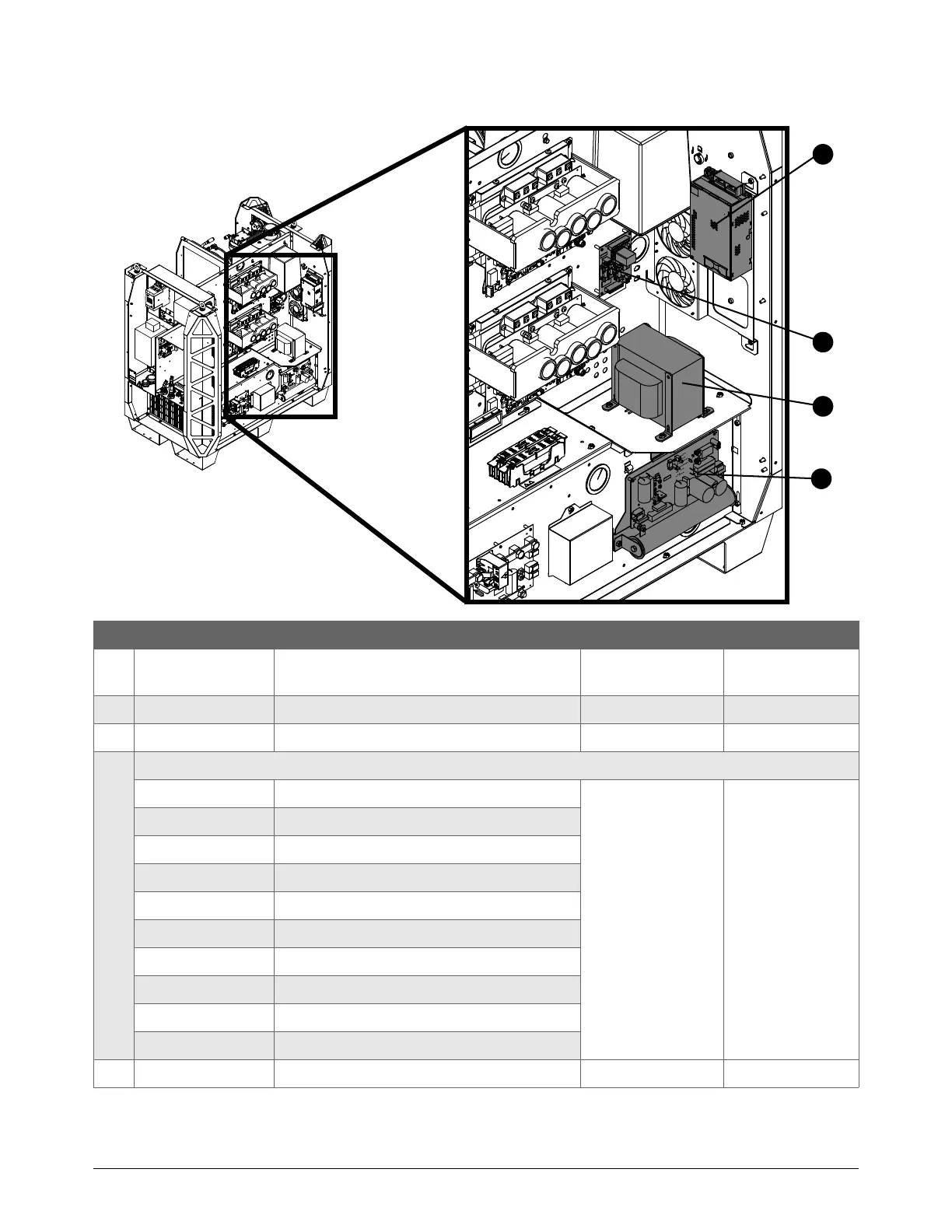

Control side – view 1
Part number Description Designator Quantity
1 229671
Power source: 88 VAC – 264 VAC to
48 VDC, 600 W
PS2 1
2 141425 Power distribution PCB PCB7 1
108709 Fuse: 10 A, 250 VAC, time delay (on PCB7) F3, F4, F5 3
3
Control transformer assembly, 3 kVA
229809 200 V, 50 Hz – 60 Hz
T1 1
229810 208 V, 60 Hz, 3 kVA
229811 220 V, 50 Hz – 60 Hz
229812 240 V, 60 Hz
229813 380 V, 50 Hz
229814 400 V, 50 Hz
229815 415 V, 50 Hz
229816 440 V, 50 Hz – 60 Hz
229794 480 V, 60 Hz
229817 600 V, 60 Hz
4 229678 Start circuit assembly PCB4 1
1
2
3
4
