Hypertherm XPR300 Replacement Part Procedures

Torch Connect Console
3
XPR300 Field Service Bulletin 809970 95
Replace a pressure transducer


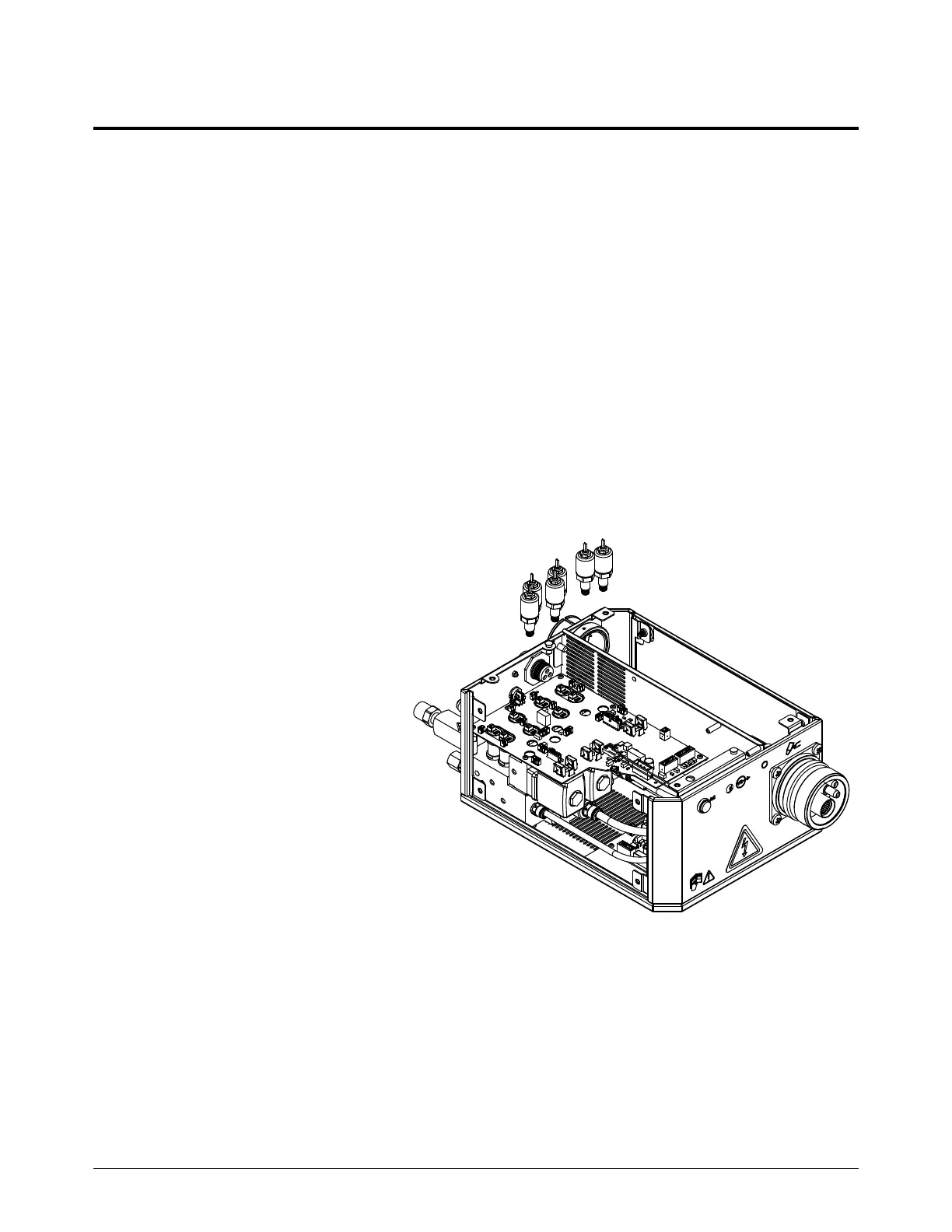

See Torch connect console manifold side – view 1 on page 141 for
location and part number.
1. Complete the following procedures:
a. Remove the power from the cutting system.
b. Remove the gas pressure from the cutting system.
c. Remove the top panel.
d. Remove the manifold-side panel.

See Torch connect console top panel and side panels on page 114.

Keep all nuts and screws that you remove.
2. Disconnect the wire connector that goes to the pressure transducer that you want to replace.
3. Use a 10 mm open-ended
wrench to remove the pressure
transducer.
4. Use a 10 mm open-ended
wrench to install the pressure
transducer. Tighten to 2.3 N∙m
(20 in∙lb).
