Hypertherm XPR300 Replacement Part Procedures

Parts List
5

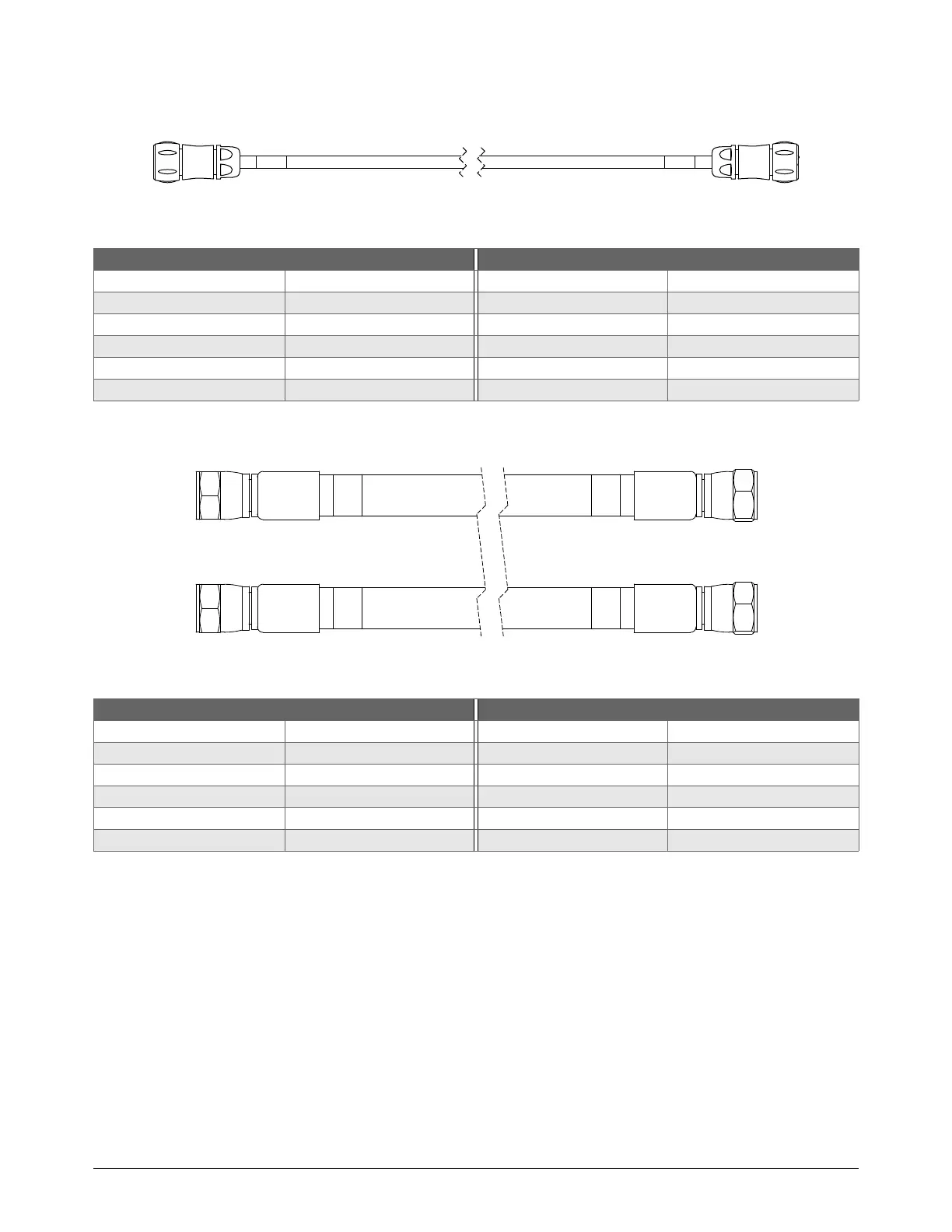

XPR300 Instruction Manual 809970 151
Power cable
Description: 3-position, male-female
Coolant hose set
Description: 1.27 cm (0.50 inch) internal diameter
Part number Length Part number Length
223436 3 m (9.8 feet) 223446 25 m (82 feet)
223437 4.5 m (14.8 feet) 223447 35 m (114.8 feet)
223439 7.5 m (24.6 feet) 223448 45 m (147.6 feet)
223441 10 m (32.8 feet) 223449 60 m (196.9 feet)
223444 15 m (49.2 feet) 223450 75 m (246.1 feet)
223445 20 m (65.6 feet) – –
Part number Length Part number Length
428475 3 m (9.8 feet) 428481 25 m (82 feet)
427476 4.5 m (14.8 feet) 428482 35 m (114.8 feet)
428477 7.5 m (24.6 feet) 428483 45 m (147.6 feet)
428478 10 m (32.8 feet) 428484 60 m (196.9 feet)
428479 15 m (49.2 feet) 428485 75 m (246.1 feet)
428480 20 m (65.6 feet) – –

Hypertherm XPR300 Specifications

General

Cutting Current	300 A
Duty Cycle	100% at 300 A
Technology	X-Definition Plasma
Gas Supply	Oxygen, Nitrogen, Air
Cutting Capacity (Mild Steel)	38 mm (1.5 in)
Severance Capacity (Mild Steel)	75 mm (3 in)
Pierce Capacity (Mild Steel)	50 mm (2 in)
Input Voltage	200–480 V, 3-PH, 50/60 Hz
