Hypertherm XPR300 Replacement Part Procedures

Parts List
5
XPR300 Instruction Manual 809970 131

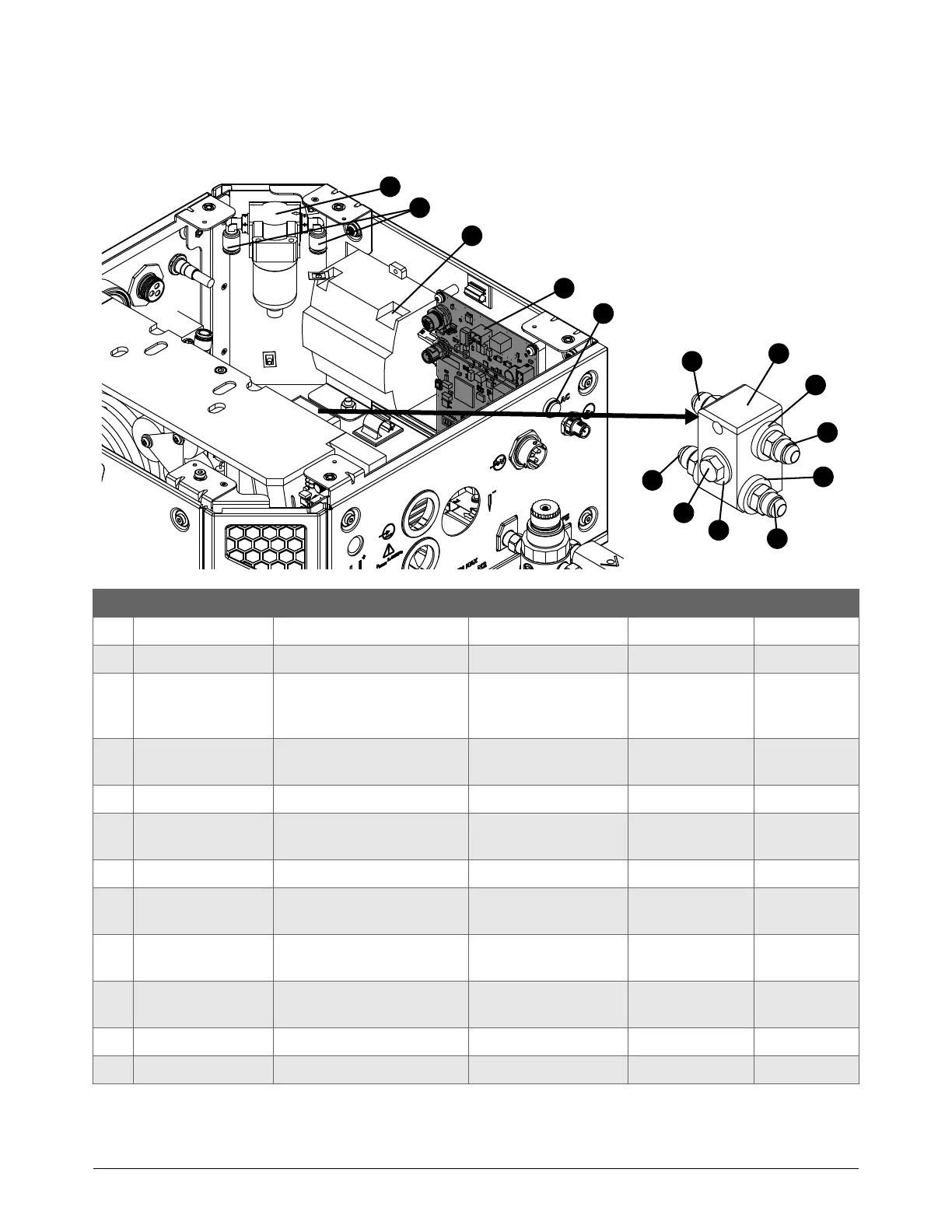

Gas connect console manifold side parts
Core, VWI, and OptiMix gas connect console manifold side
Part number Description Console Designator Quantity
1 011151 Air filter assembly Core, VWI, OptiMix – 1
011110 Air filter element Core, VWI, OptiMix – 1
2 015853
Male elbow adapter:
1/4 inch NPT X 5/16 inch
tube
Core, VWI, OptiMix – 2
3 229640
Power source: 88 VAC –
264 VAC to 24 VDC
VWI, OptiMix only – 1
4 141375 Control PCB Core, VWI, OptiMix PCB1 1
5 229825
Green power-indicator LED
assembly
Core, VWI, OptiMix – 1
6 104757 Coolant manifold Core, VWI, OptiMix – 1
7 015029
Adapter: 1/2 inch NPT X
#8 male
Core, VWI, OptiMix – 4
8 015898
Green ring: 0.87 inches
inner diameter
Core, VWI, OptiMix – 2
9 015899
Red ring: 0.87 inches inner
diameter
Core, VWI, OptiMix – 2
10 075218 Washer Core, VWI, OptiMix – 1
11 075140 Bolt Core, VWI, OptiMix – 1
2
4
1
5
3
6
7
7
7
8
9
1 0
7
11
