Hypertherm XPR300 Replacement Part Procedures

Parts List
5
150 809970 Instruction Manual XPR300

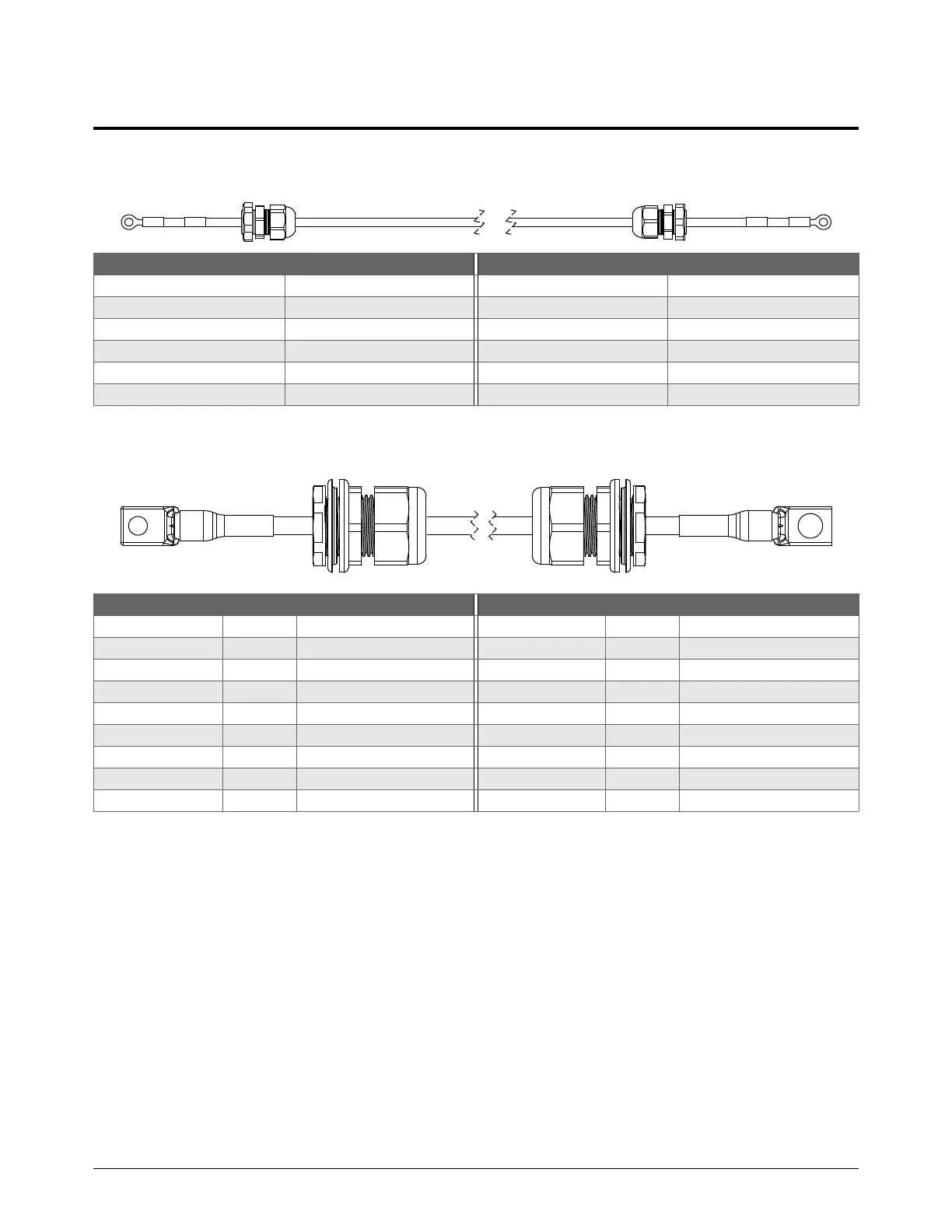

Plasma power supply to gas connect console connections
Pilot arc lead with strain relief
Negative lead with strain relief
* Leads labeled with CCC mark only.
Part number Length Part number Length
223529 3 m (9.8 feet) 223535 25 m (82 feet)
223530 4.5 m (14.8 feet) 223536 35 m (114.8 feet)
223531 7.5 m (24.6 feet) 223537 45 m (147.6 feet)
223532 10 m (32.8 feet) 223538 60 m (196.9 feet)
223533 15 m (49.2 feet) 223539 75 m (246.1 feet)
223534 20 m (65.6 feet) – –
Part number Type Length Part number Type Length
223573 2/0 3 m (9.8 feet) 223527 4/0 60 m (196.9 feet)
223574 2/0 4.5 m (14.8 feet) 223528 4/0 75 m (246.1 feet)
223575 2/0 7.5 m (24.6 feet) 223551* 2/0 3 m (9.8 feet)
223576 2/0 10 m (32.8 feet) 223552* 2/0 4.5 m (14.8 feet)
223577 2/0 15 m (49.2 feet) 223553* 2/0 7.5 m (24.6 feet)
223578 2/0 20 m (65.6 feet) 223554* 2/0 10 m (32.8 feet)
223579 2/0 25 m (82 feet) 223555* 2/0 15 m (49. 2 feet)
223525 4/0 35 m (114.8 feet) 223556* 2/0 20 m (65.6 feet)
223526 4/0 45 m (147.6 feet) 223557* 2/0 25 m (82 feet)

Hypertherm XPR300 Specifications

General

Cutting Current	300 A
Duty Cycle	100% at 300 A
Technology	X-Definition Plasma
Gas Supply	Oxygen, Nitrogen, Air
Cutting Capacity (Mild Steel)	38 mm (1.5 in)
Severance Capacity (Mild Steel)	75 mm (3 in)
Pierce Capacity (Mild Steel)	50 mm (2 in)
Input Voltage	200–480 V, 3-PH, 50/60 Hz
