Hypertherm XPR300 Replacement Part Procedures

Parts List
5
130 809970 Instruction Manual XPR300

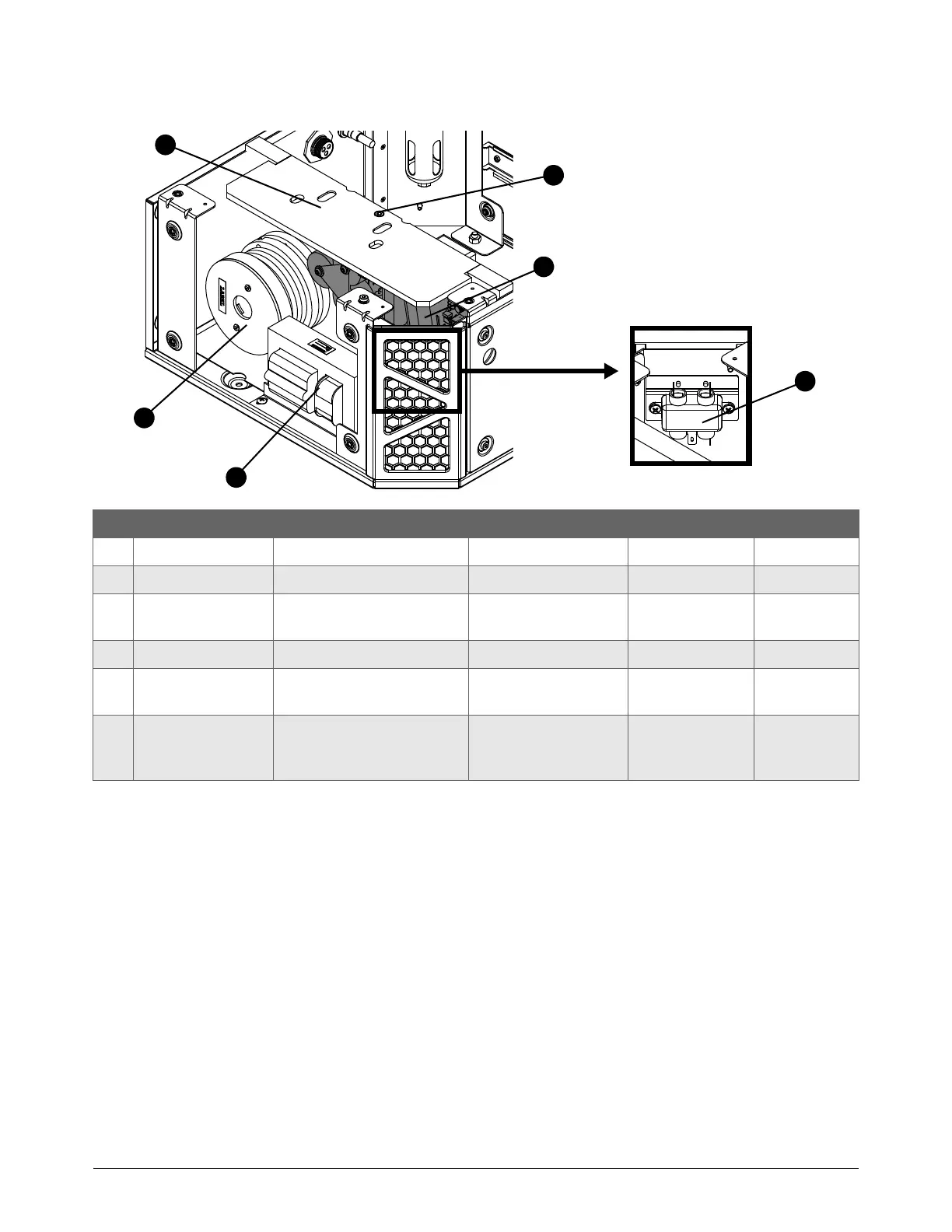

Gas connect console high-voltage side parts
Part number Description Console Designator Quantity
1 002570 Insulator Core, VWI, OptiMix – 1
2 229837 Coil assembly Core, VWI, OptiMix T2 1
3 229838
High-frequency,
high-voltage transformer
Core, VWI, OptiMix T1 1
4 009045 EMI filter Core, VWI, OptiMix – 1
5 141354
High-frequency,
high-voltage ignition PCB
Core, VWI, OptiMix PCB2 1
6 075678
Socket head cap screw:
M5 – 0.8 X 10 mm
hexagonal
Core, VWI, OptiMix – 1
1
2
3
4
5
6
Inside view
