Parts List

XPR300 Instruction Manual 809970 123

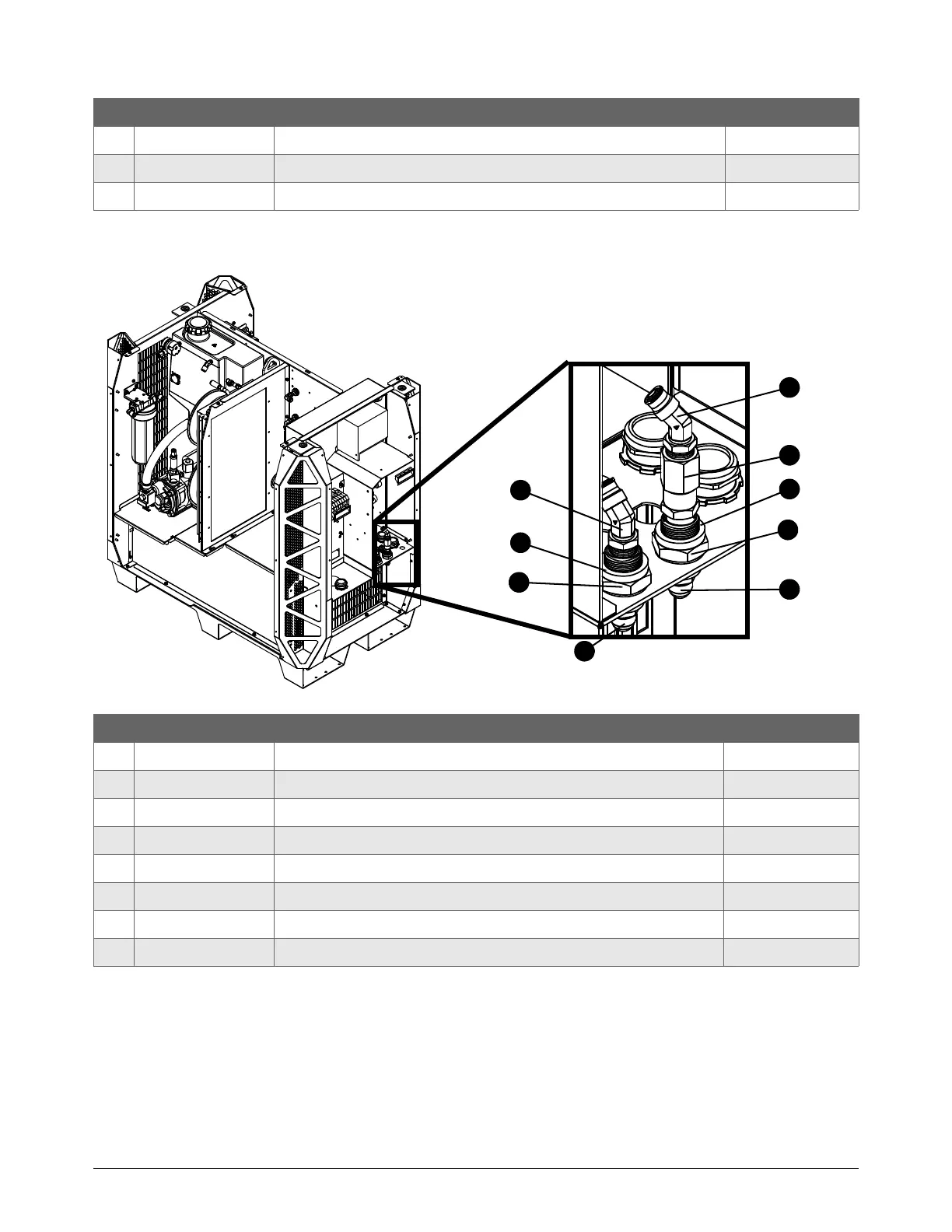

Coolant adapters in the rear compartment

12 229843 Plug and O-ring 1

13 002561 Coolant reservoir 1

428330 Kit: Tubing (1 inch hose not included) 1

Part number Description Quantity

1 015889 Elbow adapter: 1/2 inch NPT X 1/2 inch tube, 45° swivel 2

2 006154 Coolant check valve 1

3 015903 Red ring: 1.13 inches inner diameter 1

4 015888 Adapter: 1/2 inch FNPT X 1-1/2 inch length bulkhead 2

015899 Red ring: 0.87 inch inner diameter (not shown) 1

5 015029 Adapter: 1/2 inch NPT X #8 male 2

015898 Green ring: 0.87 inch inner diameter (not shown) 1

6 015902 Green ring: 1.13 inch inner diameter 1

Part number Description Quantity
