Hypertherm XPR300 Replacement Part Procedures

Parts List
5
XPR300 Instruction Manual 809970 139

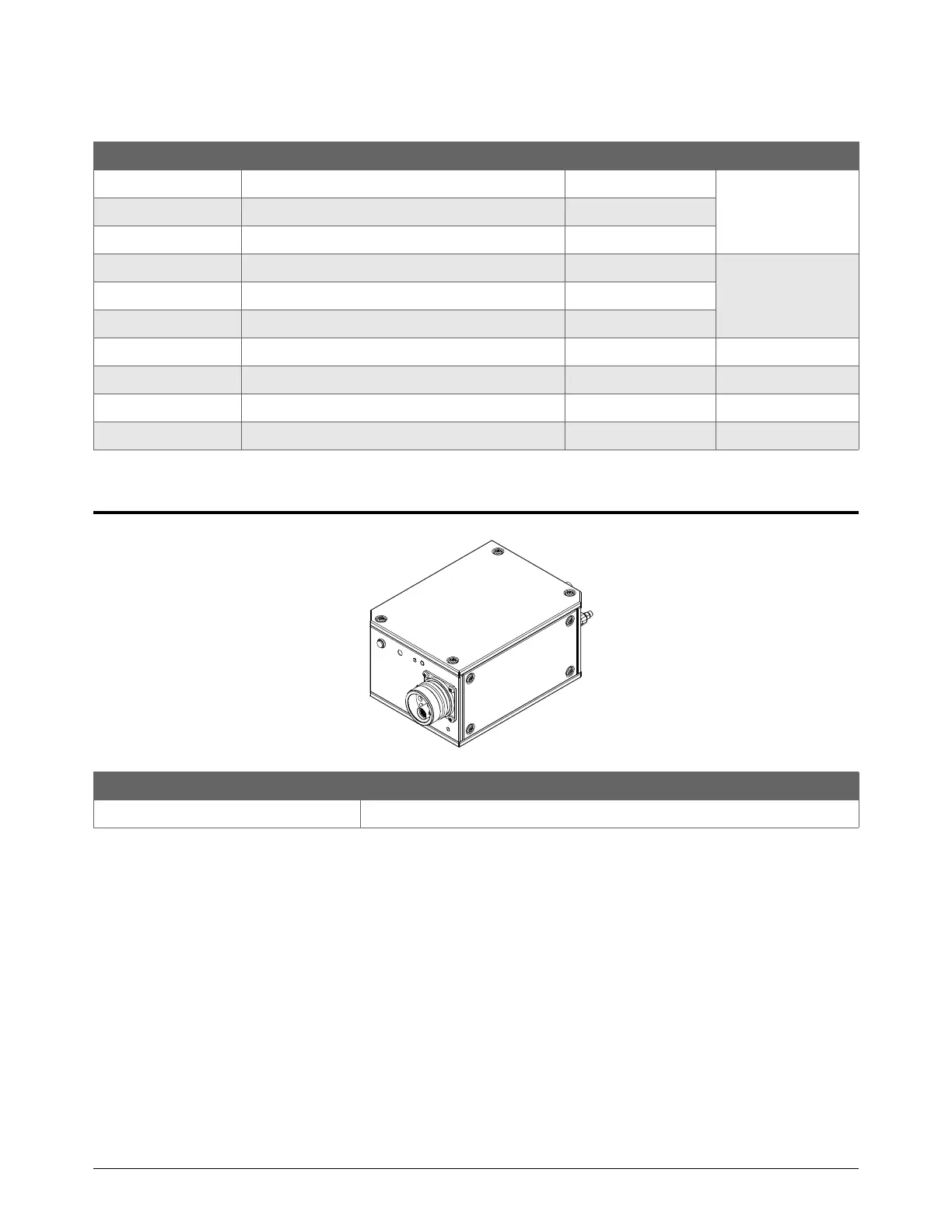

Gas connect console wire harness, hose kit, and CAN cables
Torch connect console
Part number Description Console Quantity
229718 Wire harness Core
1
229719 Wire harness VWI
229720 Wire harness OptiMix
428490 Kit: Tubing Core
1428491 Kit: Tubing VWI
428492 Kit: Tubing OptiMix
223709 CAN cable 0.38 m (1.2 ft) to external connector Core, VWI, OptiMix 1
223710 CAN cable 0.48 m (1.6 ft) male-female Core, VWI 1
223711 CAN cable 0.5 m (1.6 ft) male-female OptiMix 1
223712 CAN cable 0.39 m (1.3 ft) male-female OptiMix 1
Part number Description
078618 Torch connect console
