Hypertherm XPR300 Replacement Part Procedures

Plasma Power Supply
1
12 809970 Field Service Bulletin XPR300
How to use push-to-connect fittings
Some replacement procedures in the plasma power supply require you to use push-to-connect
fittings. This procedure explains how to use push-to-connect fittings without causing damage to the
tubing or fitting.

Replace any tubing that is damaged. If you reuse damaged tubing, it can
result in leaks.

Used tubing can have an indentation on the end that can cause leaks. To
prevent leaks, trim the tubing to remove the indentation.
Push-to-Connect

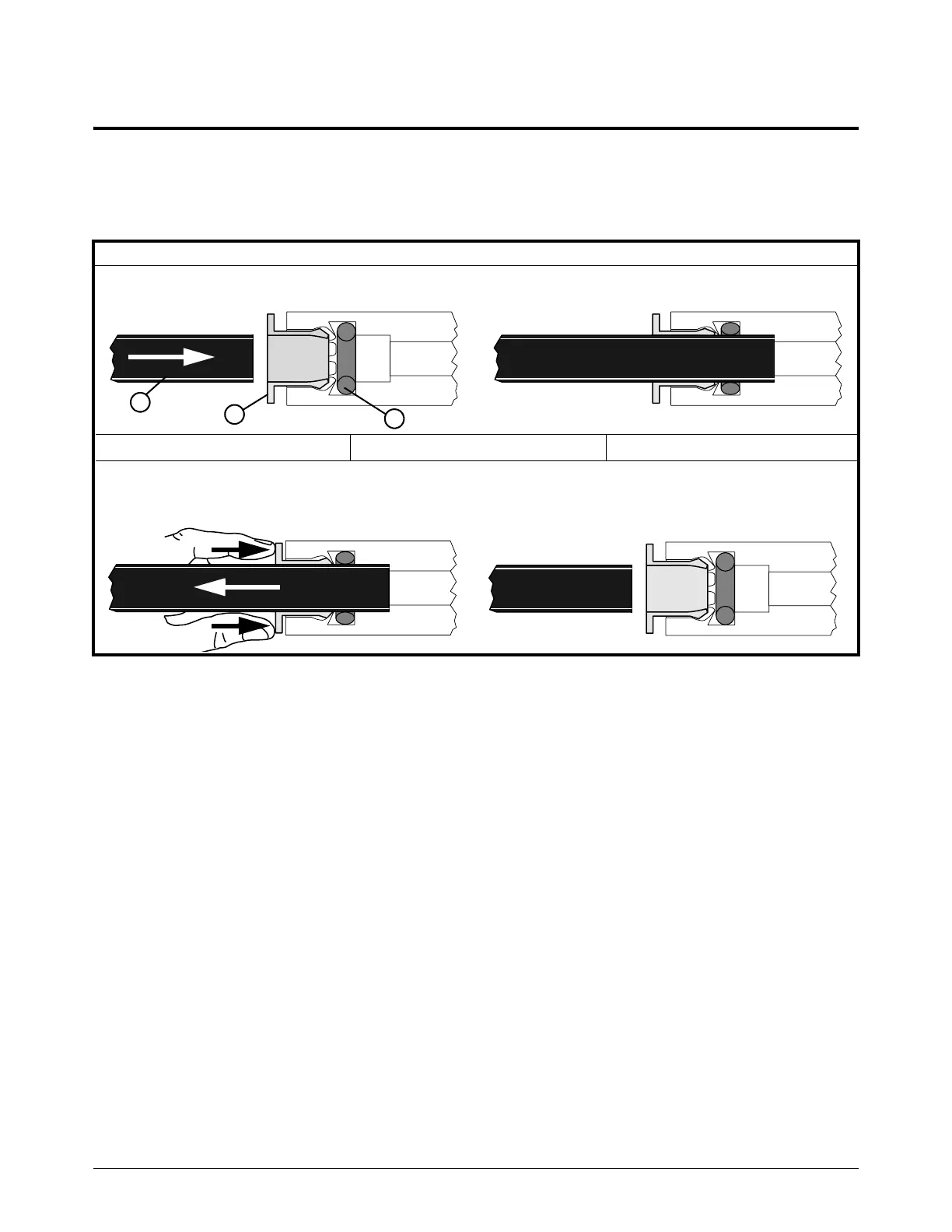

• To connect, push the tube into the fitting until it stops. Pull on the tube lightly to make sure that the connection
is tight.
• To release, push the fitting collet and tube toward the fitting. Then, continue to push the fitting collet toward the
fitting, and pull the tube away from the fitting.
1
2
3
1 Tube 2 Collet 3 O-ring
