Hypertherm XPR300 Replacement Part Procedures

Parts List
5
128 809970 Instruction Manual XPR300

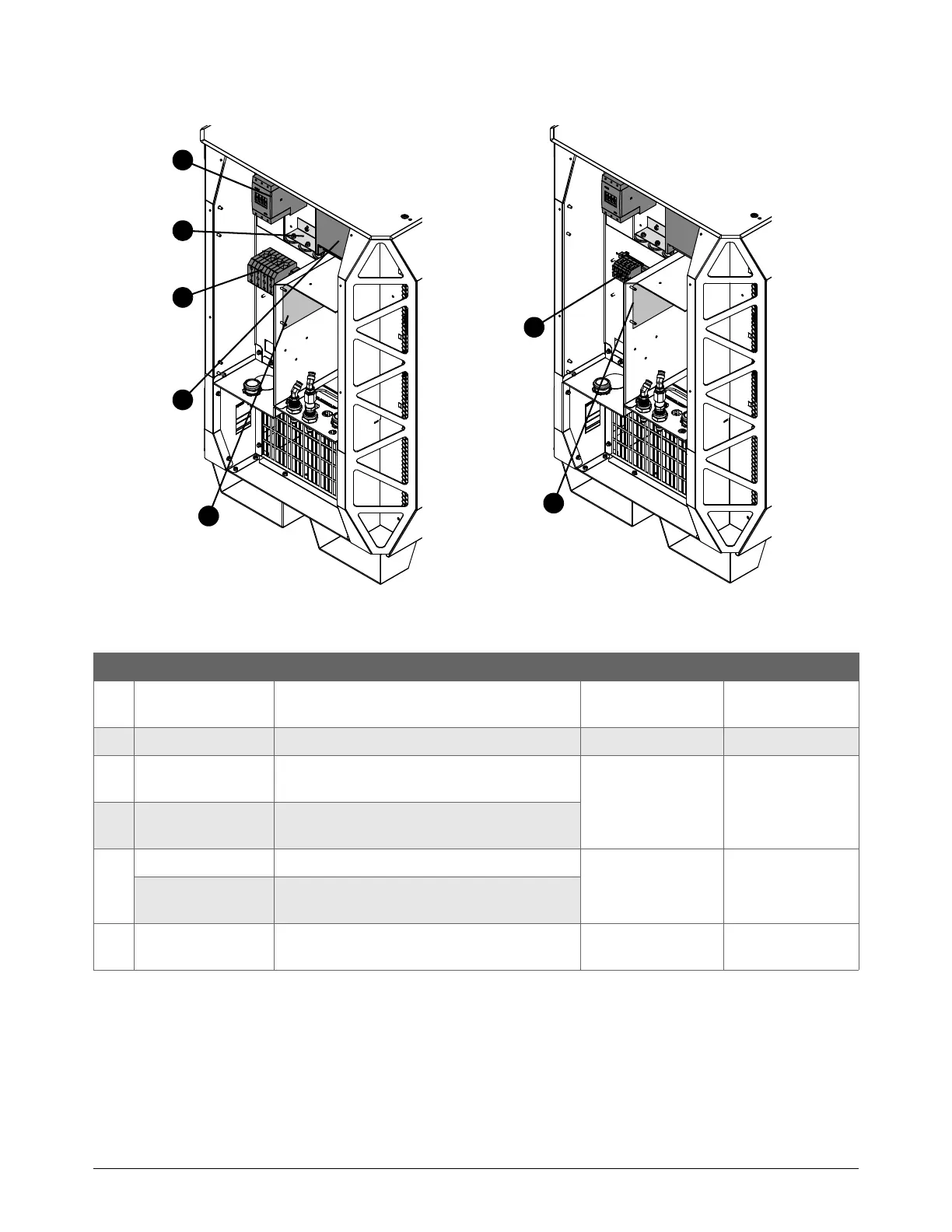

Rear compartment of the plasma power supply
Part number Description Designator Quantity
1 229697
Inrush contactor assembly: 80 A, IEC AC-3,
3-phase, 120 VAC
IR_CON 1
2 209274 Inrush resistor assembly, 2 Ω X 3 – 1
3 229033
Terminal block 600 V, 200 A (200 V, 208 V,
220 V, 240 V)
TB1 1
4 029316
Terminal block 600 V, 140 A (380 V, 400 V,
415 V, 440 V, 480 V, 600 V)
5
003276 Main contactor (200 V, 208 V, 220 V, 240 V)
M_CON 1
003268
Main contactor (380 V, 400 V, 415 V, 440 V,
480 V, 600 V)
6 141511
VDC3 PCB (Optional, for use with RS-422
and discrete cutting systems)
–1
1
2
3
4
5
200 V, 208 V, 220 V, 240 V plasma
power supplies
380 V, 400 V, 415 V, 440 V, 480 V,
600 V plasma power supplies
6
6
