Hypertherm XPR300 Replacement Part Procedures

Parts List
5
122 809970 Instruction Manual XPR300

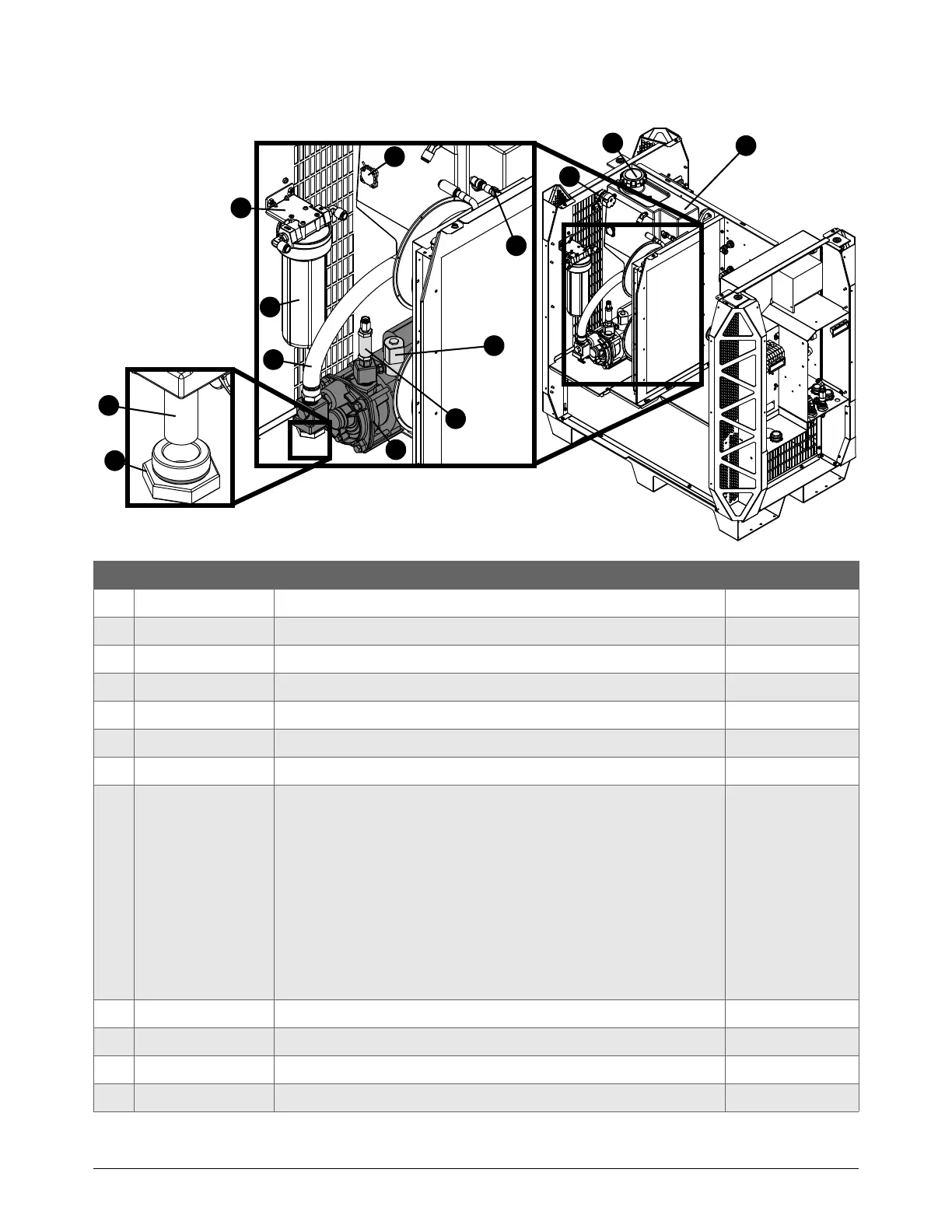

Coolant system
Part number Description Quantity
1 127014 Coolant reservoir cap 1
2 229741 Flow meter 1
3 229775 Coolant level sensor 1
4 101281 Coolant filter bracket 1
5 127344 Coolant filter housing 1
027005 Coolant filter (fine) 1
6 229777 Coolant hose (1 inch) 1
7 428729
Coolant pump and motor assembly:
Adapter: 1-5/8 inch UNF X 1 inch NPT X #16 JIC
Plug with O-ring
Coolant pump screen (coarse)
Pump and motor
Adapter: 1 inch MNPT X 1 inch MNPT hexagonal collar
Adapter: 1 inch MNPT X 3/8 inch FNPT X 1/4 inch FNPT
Adapter: 3/8 inch hexagonal
Coolant solenoid valve assembly
1
8 006132 Coolant bypass check valve 1
9 229721 Coolant solenoid valve assembly 1
10 229654 Thermistor: Copper pipe clip with electrical connector 1
11 127559 Coolant pump screen (coarse) 1
1
3
5
7
8
9
2
6
13
4
1 0
12
11
