Hypertherm XPR300 Replacement Part Procedures

Torch Connect Console
3
98 809970 Field Service Bulletin XPR300

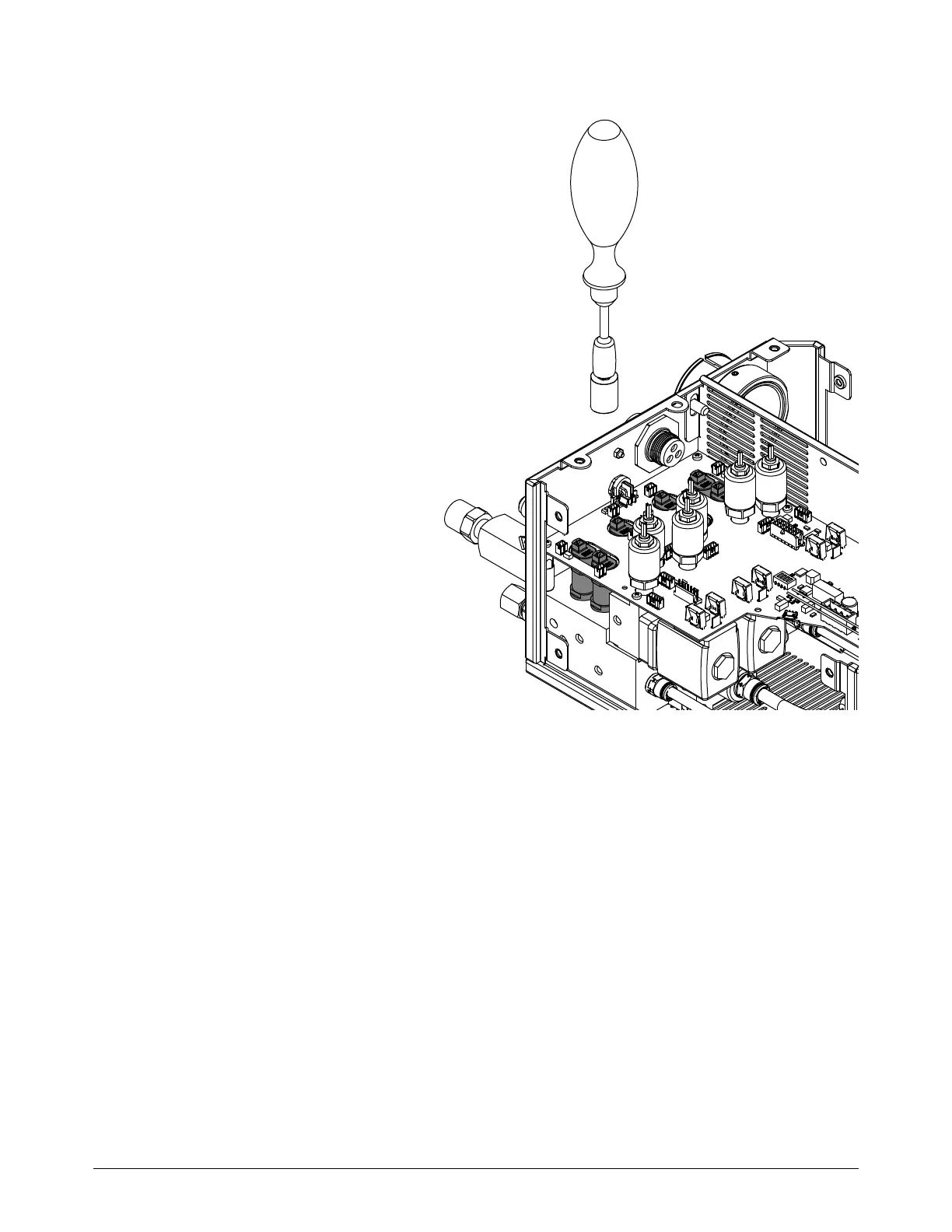

3. Use the tool (229917) to remove
the solenoid valve that you want
to replace.

Make sure that the
O-rings on the new
solenoid valve are clean
and that the hole in the
manifold is clear of debris.
4. Use the tool (229917) to install
the new solenoid valve. Tighten to
2.5 N∙m (22.1 in∙lb).

Rotate the valve as you
install it to prevent the
O-rings from rolling.
5. Install the top panel.
6. Supply the gas pressure to the
cutting system.

Hypertherm XPR300 Specifications

General

Cutting Current	300 A
Duty Cycle	100% at 300 A
Technology	X-Definition Plasma
Gas Supply	Oxygen, Nitrogen, Air
Cutting Capacity (Mild Steel)	38 mm (1.5 in)
Severance Capacity (Mild Steel)	75 mm (3 in)
Pierce Capacity (Mild Steel)	50 mm (2 in)
Input Voltage	200–480 V, 3-PH, 50/60 Hz
