5. Inspect the following parts for wear, damage, or binds. Hand cycle the paper feed mechanism. Install new
parts, as needed.
Note: Use one of the following methods to hand cycle the hardware while inspecting the parts.
v If available, use knob (PN 08H7271) to observe the parts. The knob installs on the left end of the
platen shaft.
-or-
v Use the rollers on the upper feed roller assembly.
v Drive belt
v Pulleys
v Bearings or bushings
Pull
Paths
e90am
194

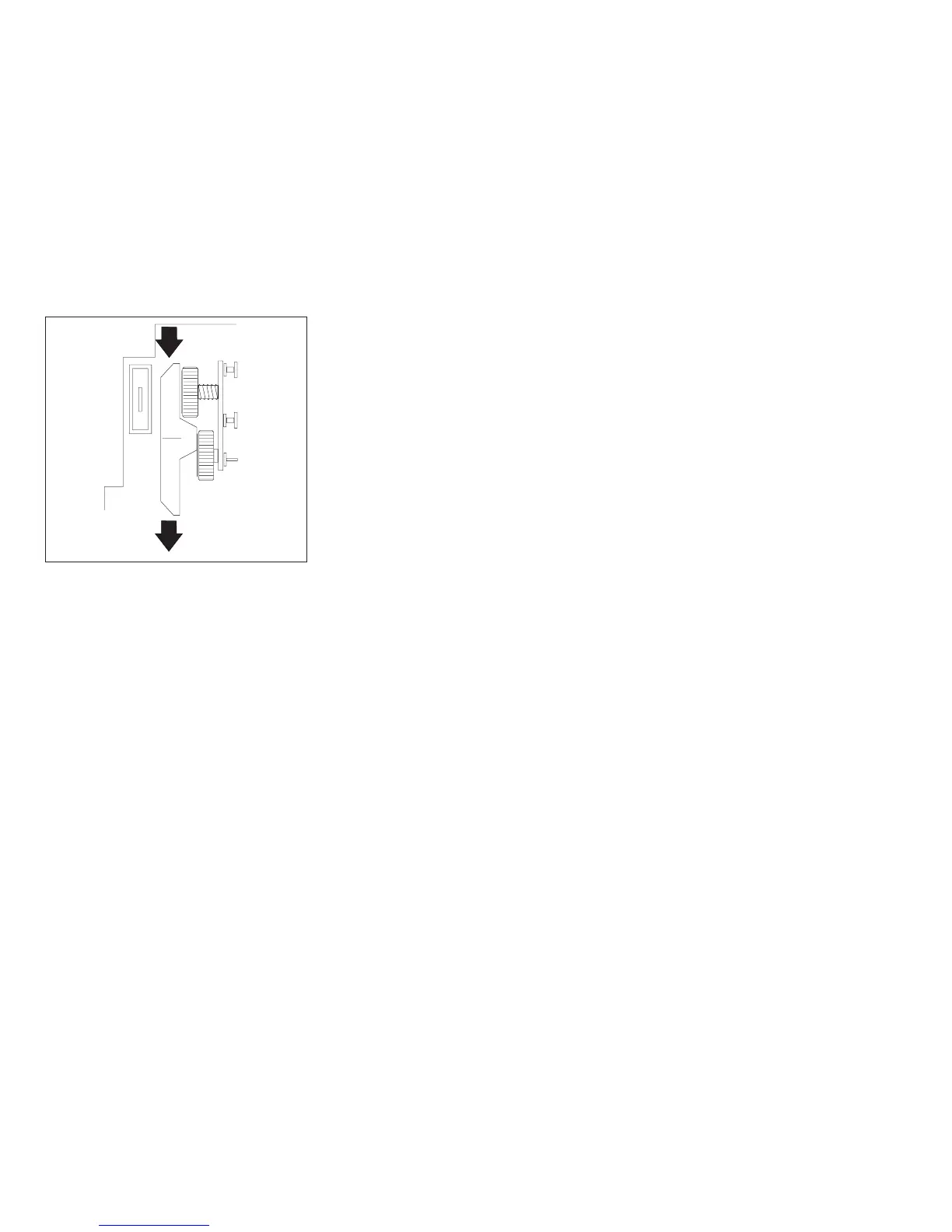

Figure 60. Push-Pull Selector Set for Rear Pull Path
Chapter 5. Removals and Adjustments 306
