7. Ensure that the metal forms guide deflector is in the closed (up) position. See Figure 57 on page 303.
8. Use a lint-free cloth to clean the jam sensor located on the tractor assembly.
9. Return to the step that sent you here.
Rear Push Path Check:
1. Inspect the bellcrank mechanism and gears on the left end of the platen for broken or worn teeth or parts.
See Figure 55 on page 297.
2. Locate and remove from the forms path torn pieces of paper or other foreign material that can cause forms
jams.
3. Ensure the rear tractor paper door is open or removed.
4. Ensure that the paper bail is in the lower, detented position, touching the upper feed roller assembly. See
Figure 56 on page 302.

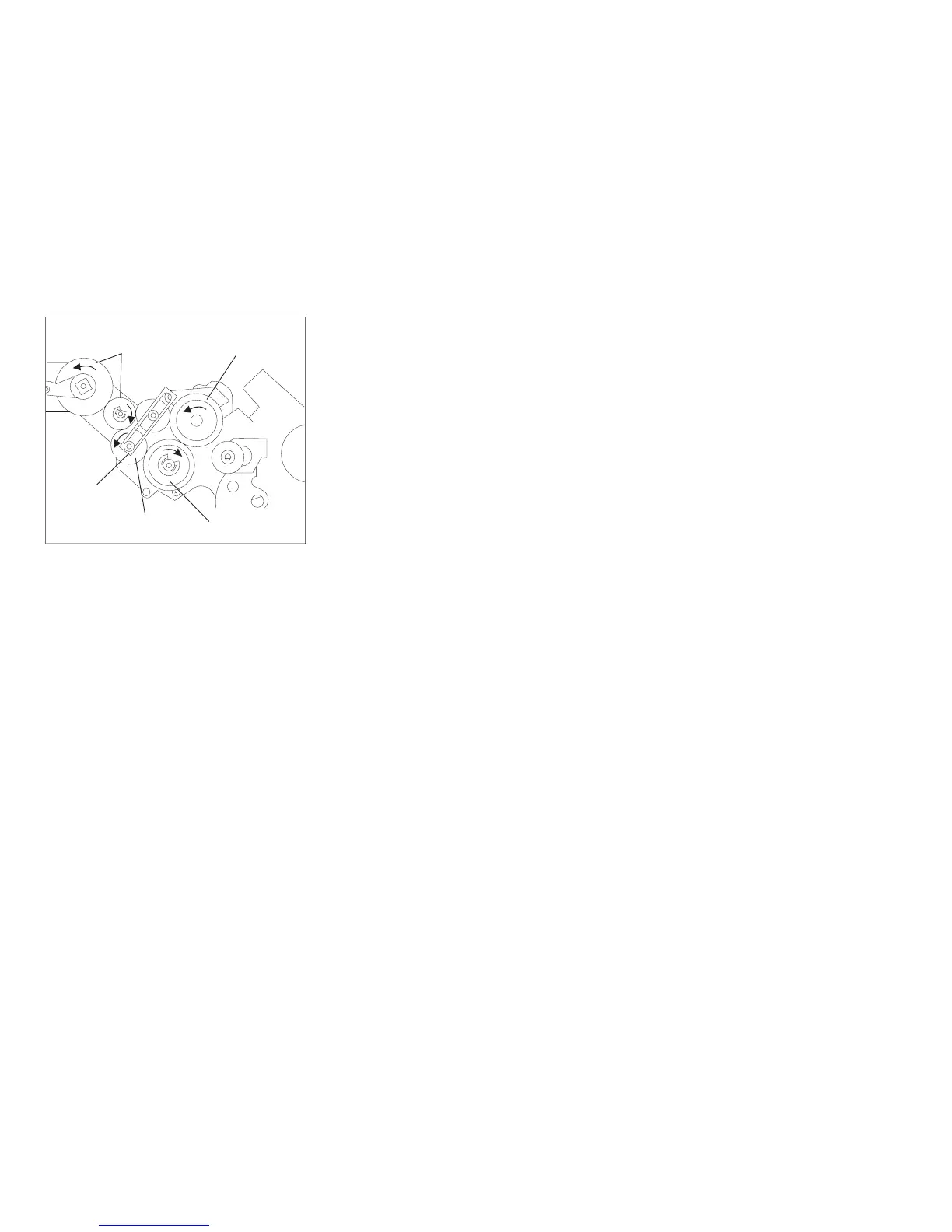

Tractor Assembly
Gears (Cover
Removed)
Push-Pull
Selector in
Pull Position
(Up)
Pull Selector
Gear
Idler
Gear
Upper Feed
Roller Gear
Figure 69. Push-Pull Path Close-up.
(Viewed From Left Side)
Chapter 5. Removals and Adjustments 315
