IBM 4247

4. Remove the following:
v Front tractor housing nut
v Fan bracket screw
Note: The fan bracket will be removed after the next step. Note how the fan bracket is installed.

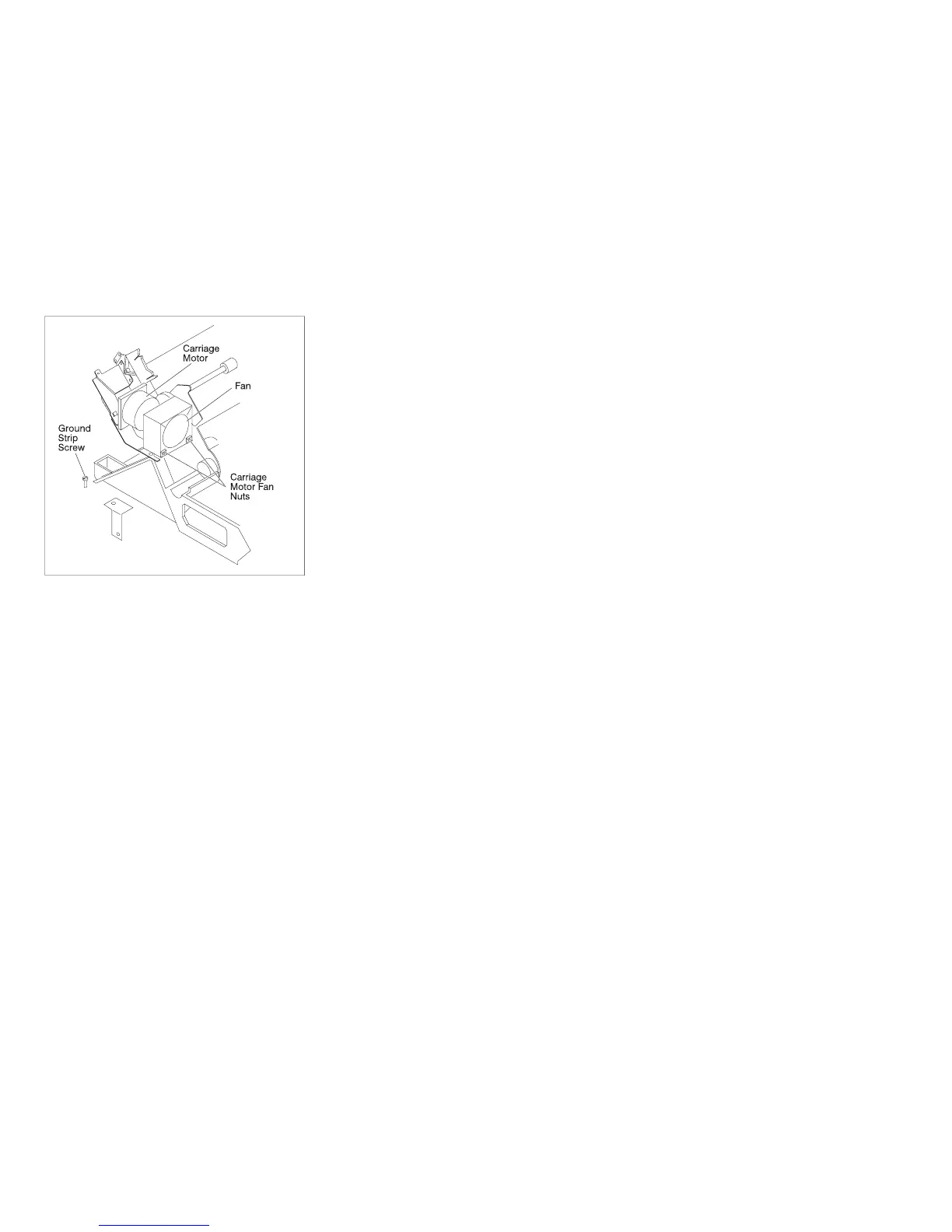

Figure 151. Carriage Drive Motor Fan. (Viewed From Right Rear)
Chapter 5. Removals and Adjustments 417
