IBM 4247

5. Remove the following:
v Carriage drive belt from the motor pulley (see “Carriage Drive Belt” on page 420)
v 4 bracket screws
v Fan bracket
Carriage
Motor
Fan
Bracket
Fan
Bracket
Screw
Front Tractor
Connector
Housing Nut

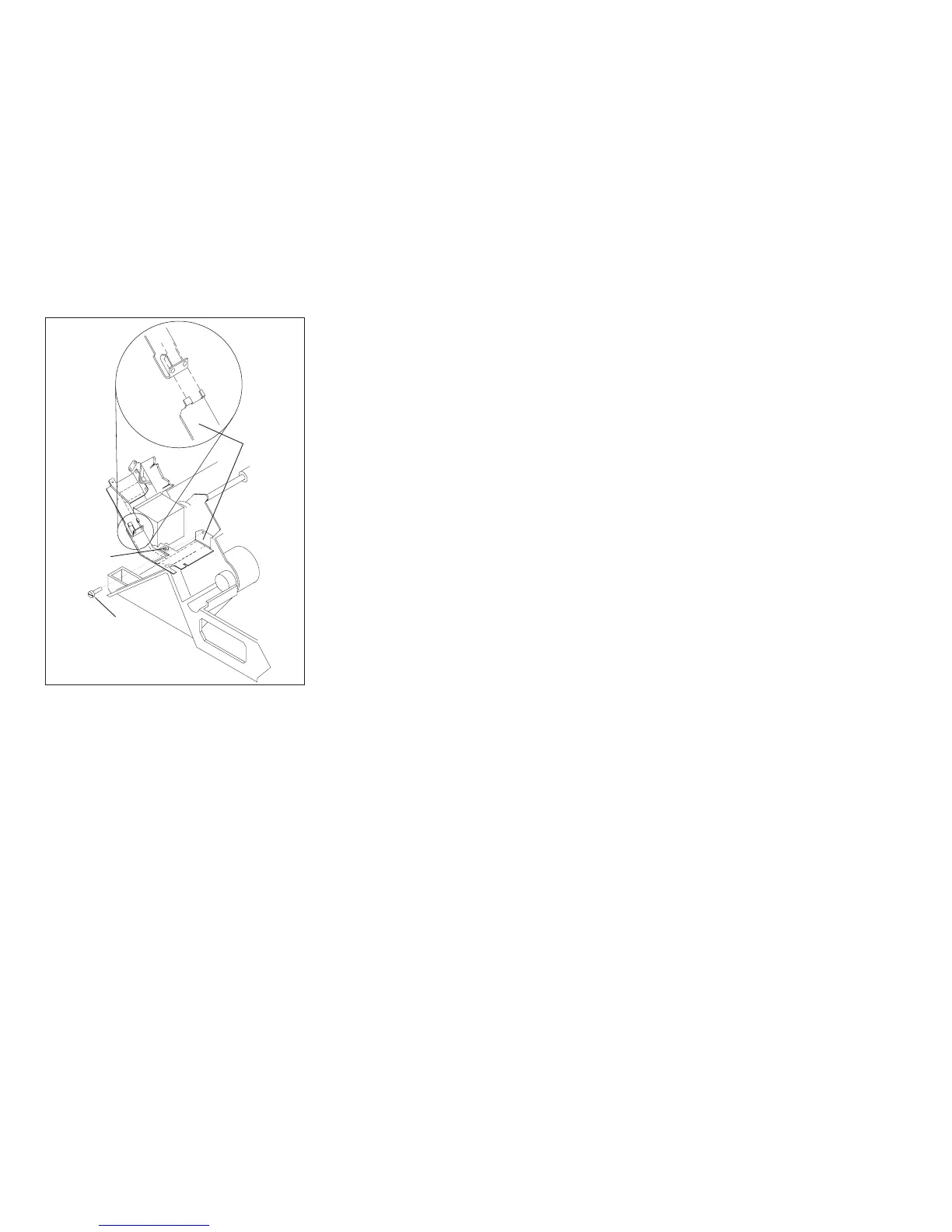

Figure 152. Carriage Motor Fan Bracket. (Viewed From Right Rear)
Chapter 5. Removals and Adjustments 418
