NOTE
The paper bail may be slightly different than the ones shown here. Later models may have a coil spring.
5. To remove the paper bail, grasp it as shown in Figure 158. Rotate the paper bail toward the front of the printer
until the pivot posts on the sides can disengage.
hc0z0002

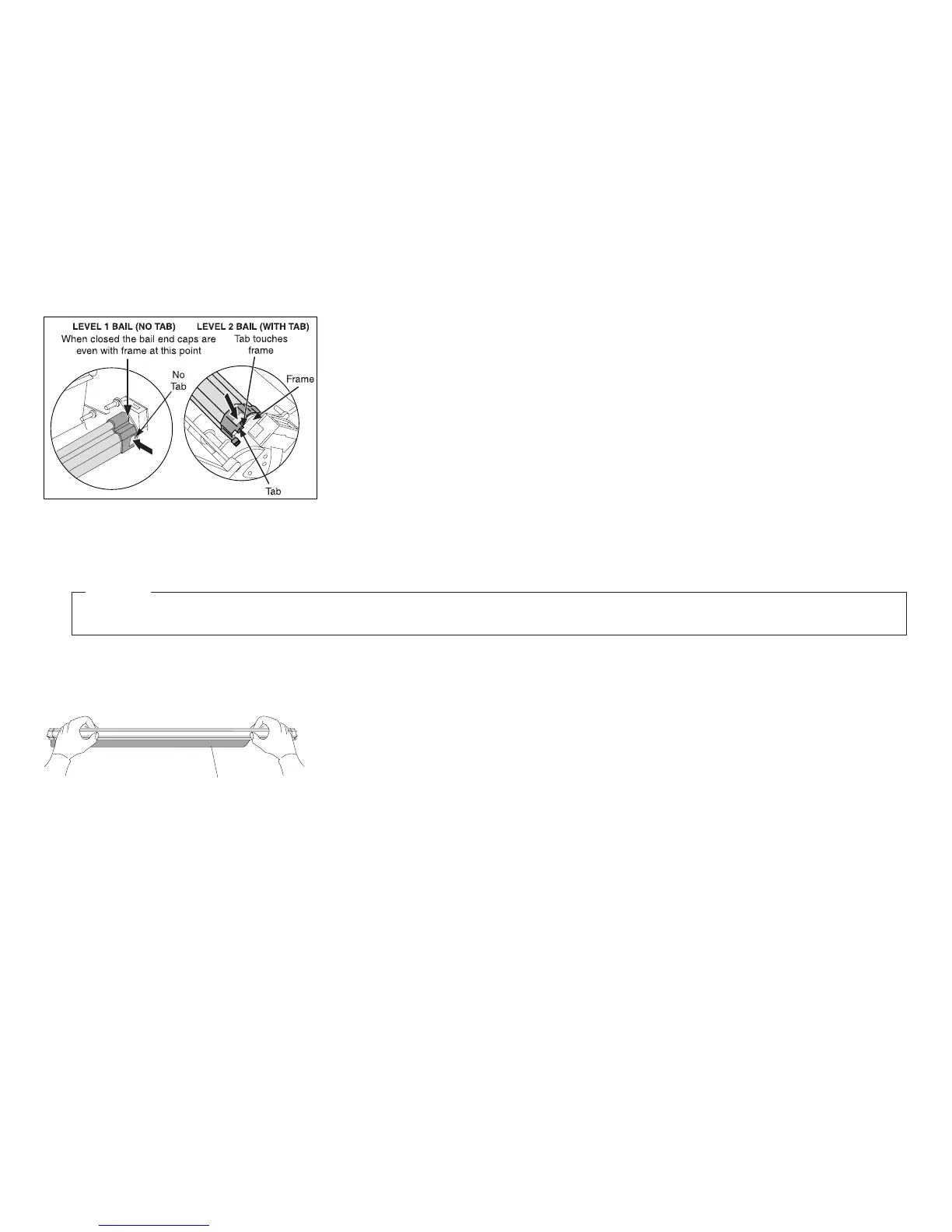

Figure 157. Correctly Positioned Paper Bail (Level 1 and Level 2)
Mylar
Figure 158. Grasping Paper Bail
Chapter 5. Removals and Adjustments 423
