6. Remove the stop screw from the front tractor connector housing.
7. Slide the cable and connector out of the housing.
8. Loosen the paper feed belt tension lever screws and remove the paper feed belt. Note the path of the belt to
aid installation.
Front Tractor
Connector Housing
Nut and
Screw

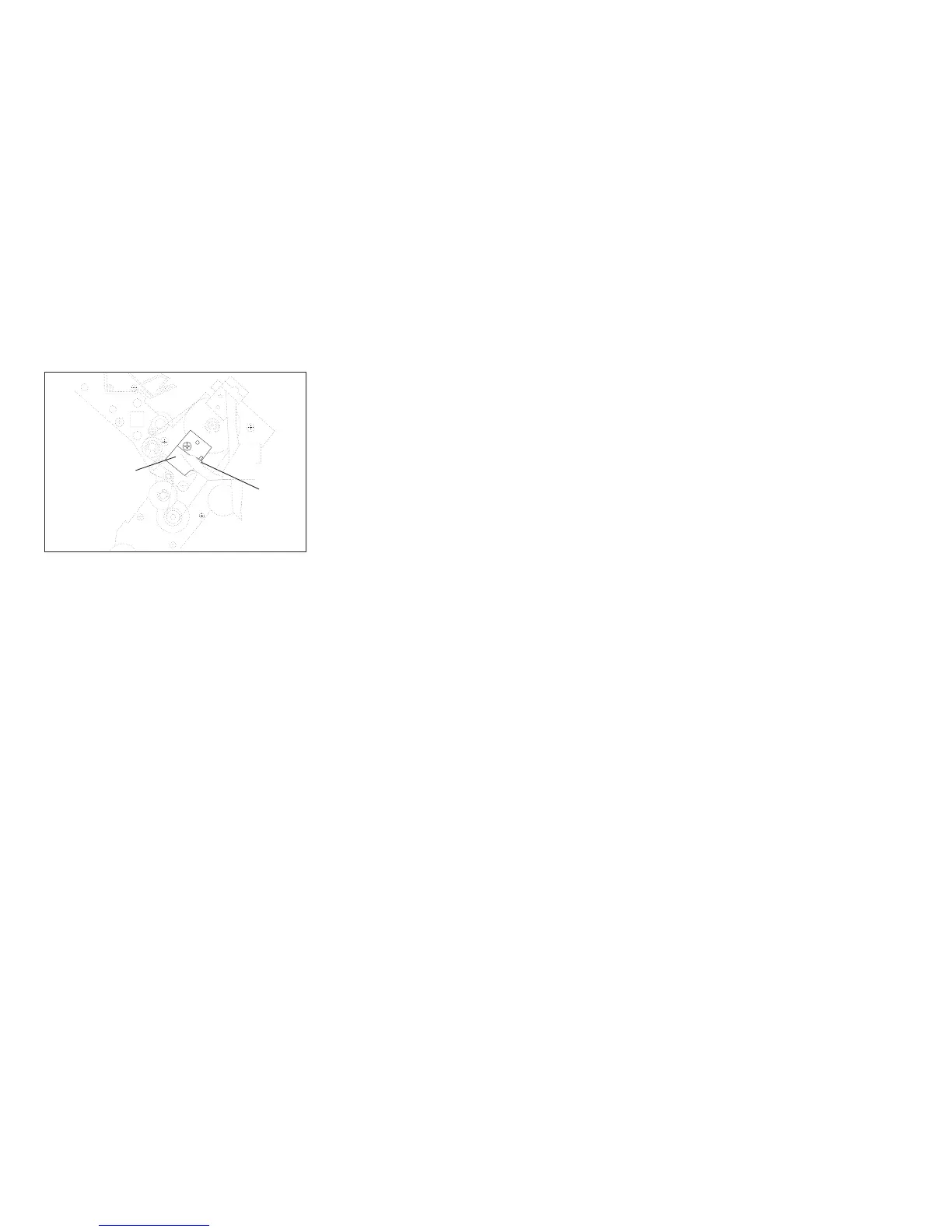

Figure 186. Carriage Motor Support Bracket Screws. (Viewed From Right Side)
Chapter 5. Removals and Adjustments 450
