If the printer has a one-piece version, the entire Lower Plastic Shield/Support Assembly must be removed
regardless of the damage. Go to “Removal - One-Piece Version”. The two piece version will be installed as the
replacement. See “Replacement - Two-Piece Version” on page 456.
If the printer has a two-piece version and the failure is only the damaged plastic shield, the plastic shield
assembly can be exchanged without exchanging the entire Lower Plastic Shield/Support Assembly. Go to
“Removal - Two-Piece Version” on page 455.
If the printer has a two-piece version and the failure is something other than a damaged plastic shield, the entire
Lower Plastic Shield/Support Assembly must be exchanged. Go to “Removal - One-Piece Version”.
Removal - One-Piece Version
1. Remove the printer covers. See “Printer Covers” on page 347.
2. Remove the ribbon. See “Ribbon” on page 353.
3. Remove the paper bail assembly. See “Paper Bail Assembly” on page 422.
4. Remove the carriage motor drive belt from the motor pulley.
Shield
e90alocg

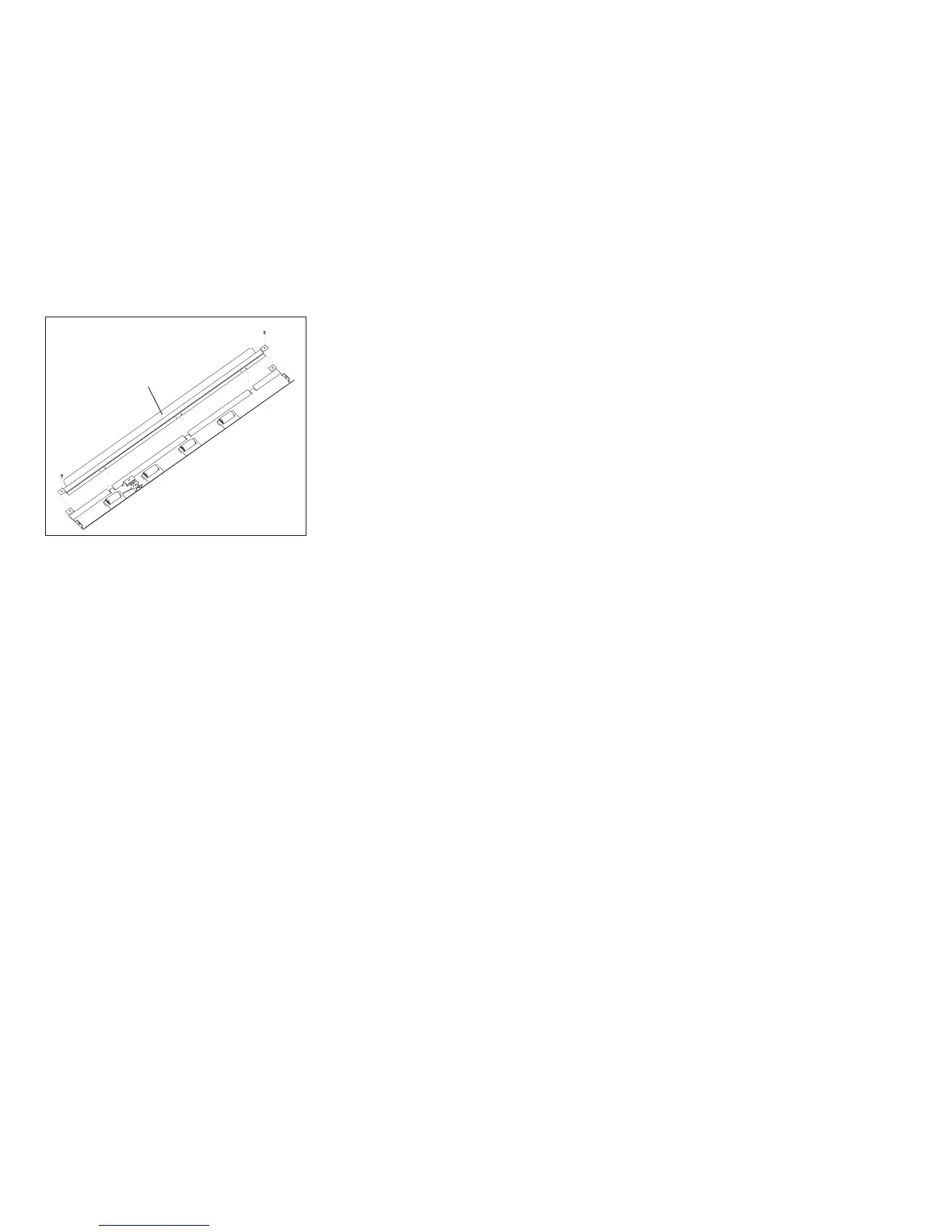

Figure 188. Lower Plastic Shield - Two Piece Version.
Attaches to Support Assembly
Chapter 5. Removals and Adjustments 452
