Chapter 4. IBM System Storage DS3500 and EXP3500 Cabling 115
Draft Document for Review March 28, 2011 12:24 pm 7914Cabling2-1908.fm

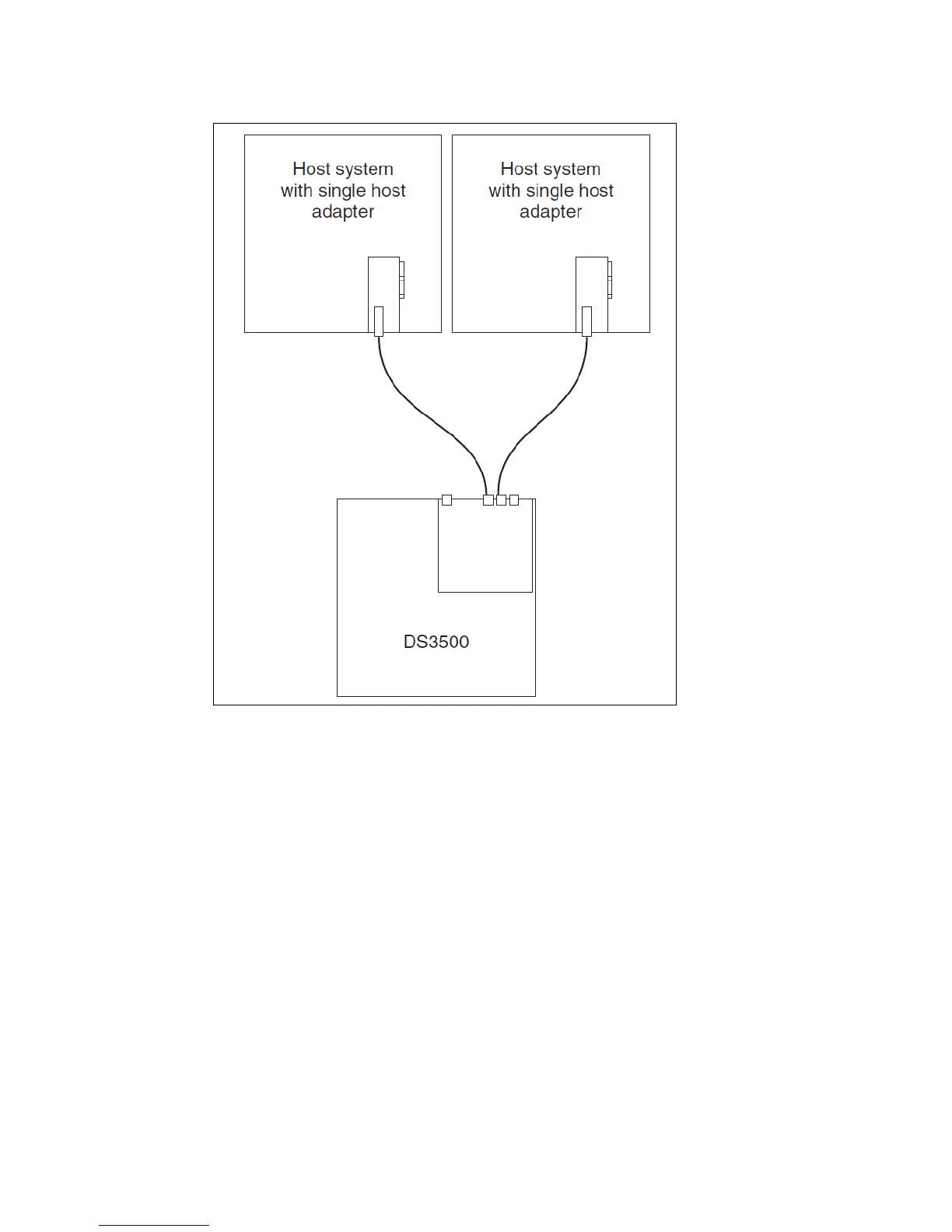

Figure 4-25 Two hosts connected to a single controller DS3500 using single SAS host adapters
Figure 4-26 on page 116 shows a configuration with two hosts connected using redundant
SAS connections to a dual controller DS3500 storage subsystem. This is a good
configuration because it has redundant paths to redundant controllers.
